Bearings Rolling Bearings Radial Bearings Track Rollers Cam Followers

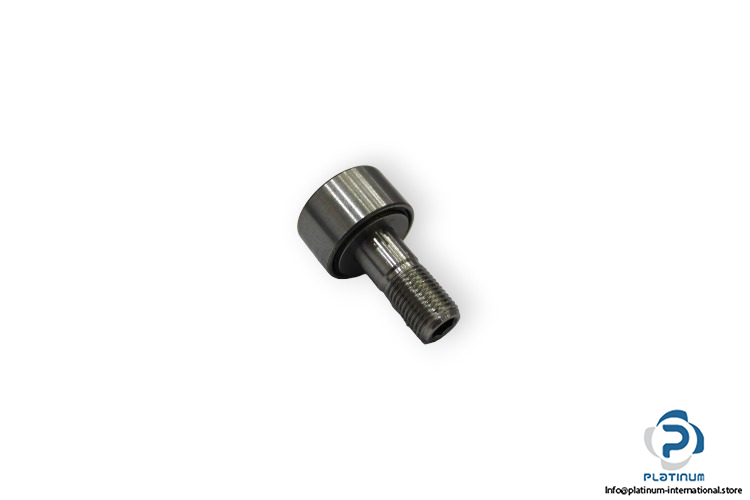

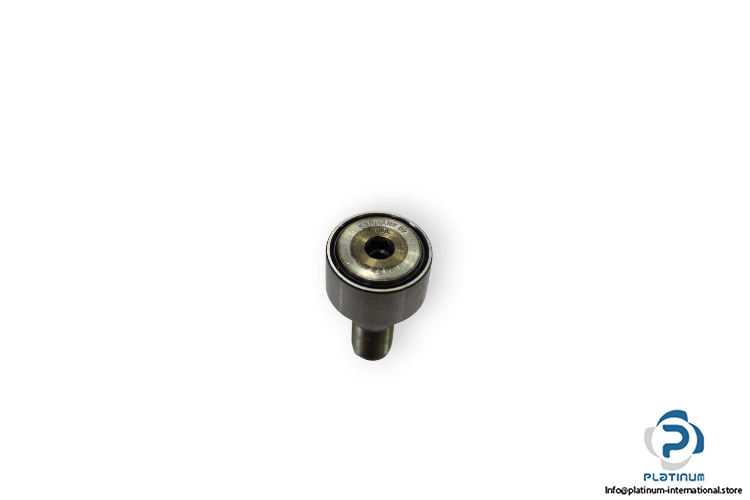

INA KRV22-PP-A Stud Type Track Roller

ina-KRV22-PP-A-stud-type-track-roller
ina-krv22-pp-a-stud-type-track-roller-1
ina-krv22-pp-a-stud-type-track-roller-2
ina-krv22-pp-a-stud-type-track-roller-1
ina-krv22-pp-a-stud-type-track-roller-2
New
In stock2 unitsReady to ship

Model: KRV22-PPA

Manufacturer:
INA
Type:
Stud type track roller with axial guidance, full complement needle roller set
Manufacturer
INA?
SKU
1004349
Category
Cam Followers
Condition
New
bearingsCamFollowersInaRollerRollersStudSupporttrackType
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: INA
Type: Stud type track roller with axial guidance, full complement needle roller set
Model: KRV22-PPA

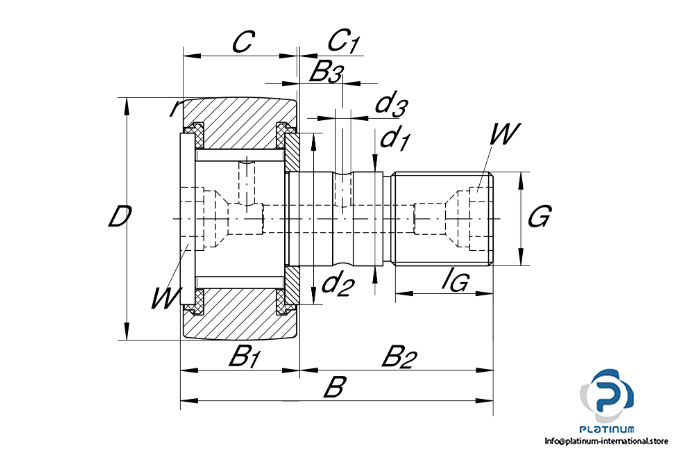

Dimensions:
Outside diameter D: 22 mm
Fit diameter of roller stud d1: 10 mm
Width of the roller stud B: 36 mm
Roller Width B1: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic Cr w: 6200 N
Static C0r w: 9300 N
Fatigue load limit Cur w: 1230 N
Speed on permanent grease lubrication: 2600 rpm
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides

More From INA?

INA NK 5/10 Needle Roller Bearing
New

INA?

INA NK 5/10 Needle Roller Bearing

SKU: 1090791

Qty: 1

Available through quotation
INA NK 90/25 Needle Roller Bearing
Used

INA?

INA NK 90/25 Needle Roller Bearing

SKU: 1090979

Qty: 1

Available through quotation
INA NX30-Z-XL Needle Roller/Axial Ball Bearing
Used

INA?

INA NX30-Z-XL Needle Roller/Axial Ball Bearing

SKU: 1090999

Qty: 1

Available through quotation
INA 7220 BEG Angular Contact Ball Bearing
Used

INA?

INA 7220 BEG Angular Contact Ball Bearing

SKU: 1090974

Qty: 1

Available through quotation
INA Rna/Na 4922 Radial Roller Bearing Without Inner Ring
New

INA?

INA Rna/Na 4922 Radial Roller Bearing Without Inner Ring

SKU: 1090863

Qty: 1

Available through quotation

Related Products

NTN KRV47XLLH/3AS Stud Type Track Roller
New

NTN KRV47XLLH/3AS Stud Type Track Roller

SKU: 995657

Qty: 2

Available through quotation
NTN KR40LLH/3AS CAM Follower
New

NTN KR40LLH/3AS CAM Follower

SKU: 983024

Qty: 5

Available through quotation
Torr NUKR35.2SK Stud Type Track Roller
New

TORR

Torr NUKR35.2SK Stud Type Track Roller

SKU: 1005441

Qty: 22

Available through quotation
SKF KR 22 PP Stud Type Track Roller
New

SKF KR 22 PP Stud Type Track Roller

SKU: 995641

Qty: 5

Available through quotation
KR22 Stud Type Track Roller
New

KR22 Stud Type Track Roller

SKU: 1004544

Qty: 44

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
INA? SKU: 1004349
INA KRV22-PP-A Stud Type Track Roller
INA KRV22-PP-A Stud Type Track Roller
PriceOn Request
Stock2 In stock
ManufacturerINA?
CategoryCam Followers
ConditionNew
SKU1004349

Manufacturer: INA
Type: Stud type track roller with axial guidance, full complement needle roller set
Model: KRV22-PPA

Technical Specifications

Weight0,17 kg
ConditionNew
ManufacturerINA?
Type of ProductStud type track roller
Shelf No.240321
