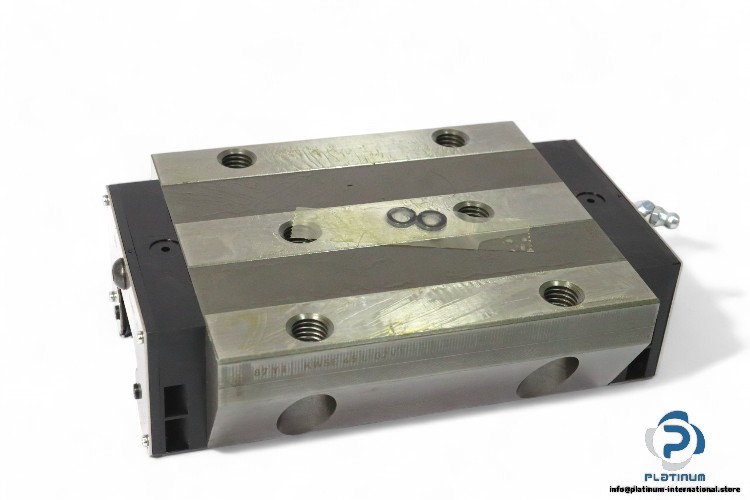

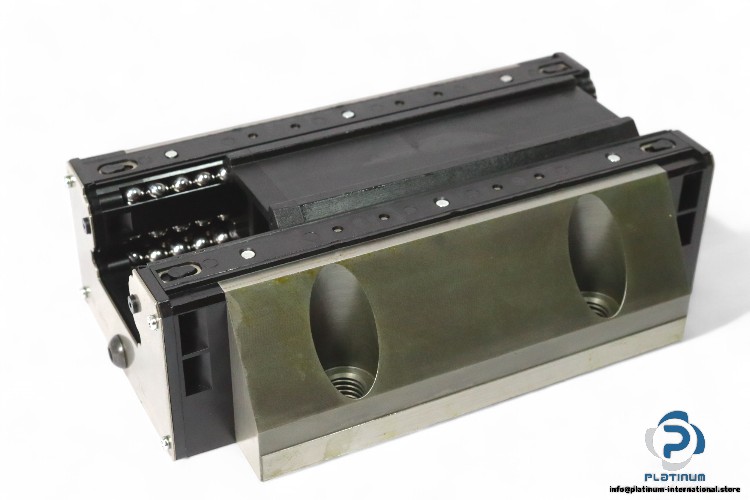

INA KWSE45-L G2 V1 Linear Recirculating Ball Bearing

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWSE45-L-G2-V1

Size: 45 mm

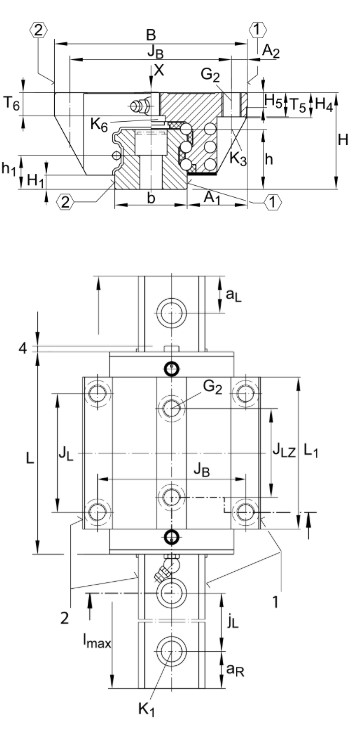

Dimensions
Height system H: 60 mm
Width carriage B: 120 mm
Overall length carriage L: 174.3 mm
Carriage height(H-H1): 51.5 mm
Basic Load Ratings:
Dynamic Load Rating, Load Direction I: Compressive Load: 98,000 N
Static: 236,000 N
Dynamic Load Rating, Load Direction II: Tensile Load: 89,000 N
Static: 159,000 N
dynamic load rating; Load direction III: lateral load: 93,400 N
Static: 168,000 N
Material name: KWSE
Preload: V1
Accuracy class: G2
Carriage design: L, Long carriage
