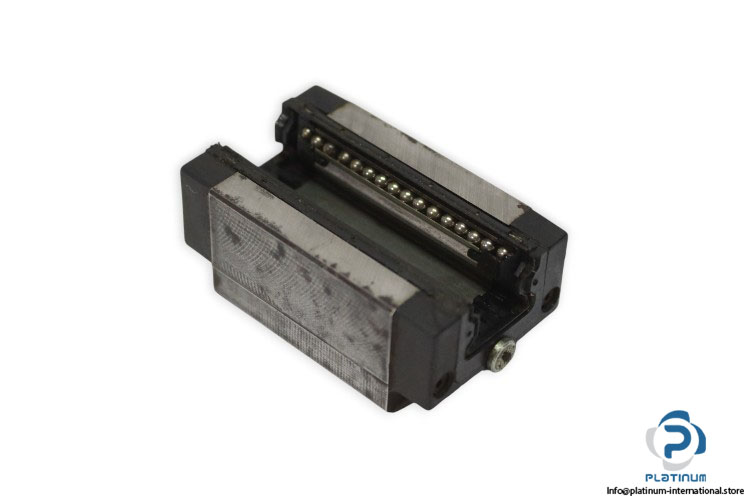

INA KWVE15-H G3V1 Linear Recirculating Ball Bearing
The INA KWVE15-H G3V1 is a precision linear recirculating ball bearing unit designed for smooth motion, high load capacity, and long service life. It ensures reliable linear guidance in industrial automation and mechanical systems.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing

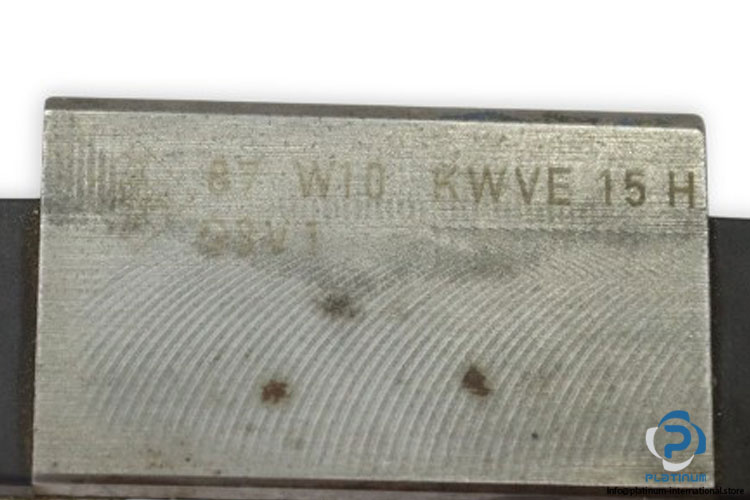

Model: KWVE15-H G3V1
| Size | 15 |
| Rail | TKVD 15 |

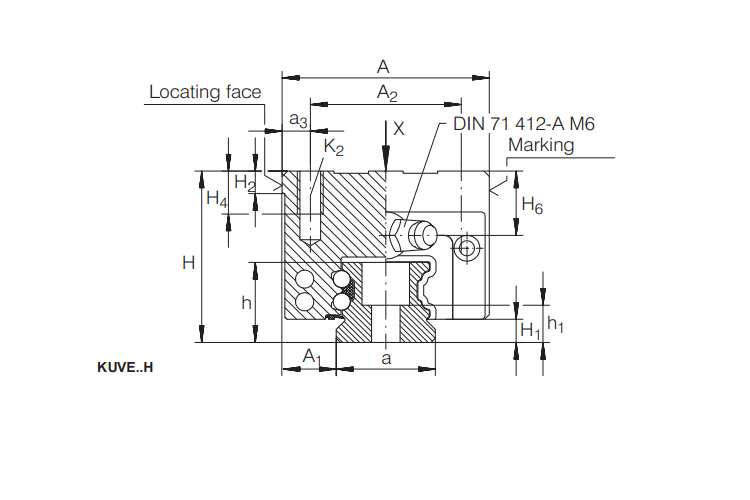

| Height of System (H) | 28 mm |
| Height of Block | 23.5 mm |
| Width (A) | 34 mm |

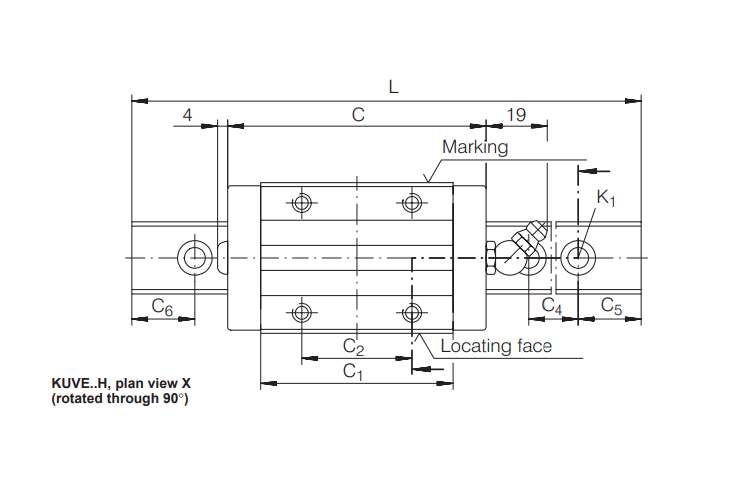

| Block Length (C) | 55.6 mm |
| Static Load Rating (C0) | 14,500 N |
| Dynamic Load Rating (C) | 7,200 N |
| Spacing to Hole on the Left | max. 53 mm |
| Spacing to Hole on the Right | max. 53 mm |
| Static Moment Rating About X Axis | 150 Nm |
| Static Moment Rating About Y Axis | 100 Nm |
| Static Moment Rating About Z Axis | 100 Nm |
| Material Name | KWVE |
| Accuracy Class | G3 |
| Carriage Preload | V1 |
| Note | Corresponding rails (guideways) are available in a wide range of lengths. Please contact us if you need rails to match your bearing. |
