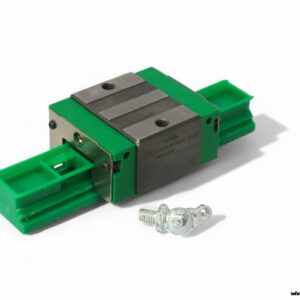

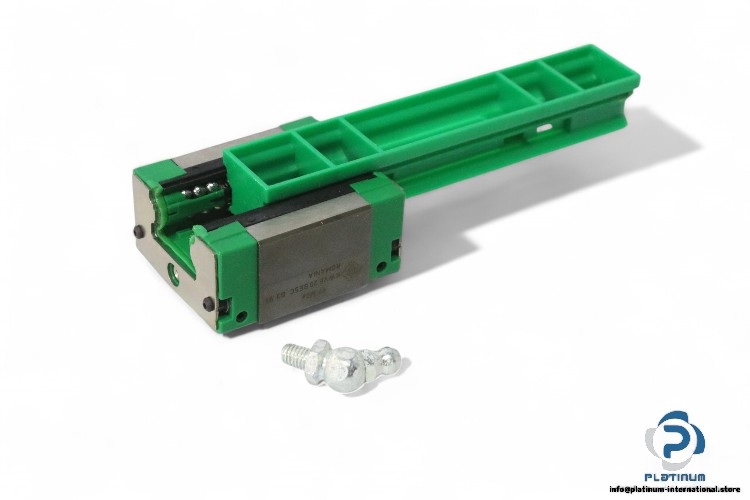

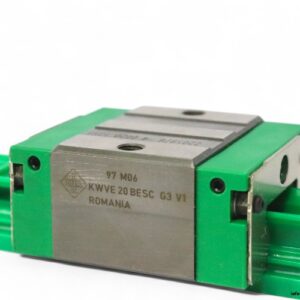

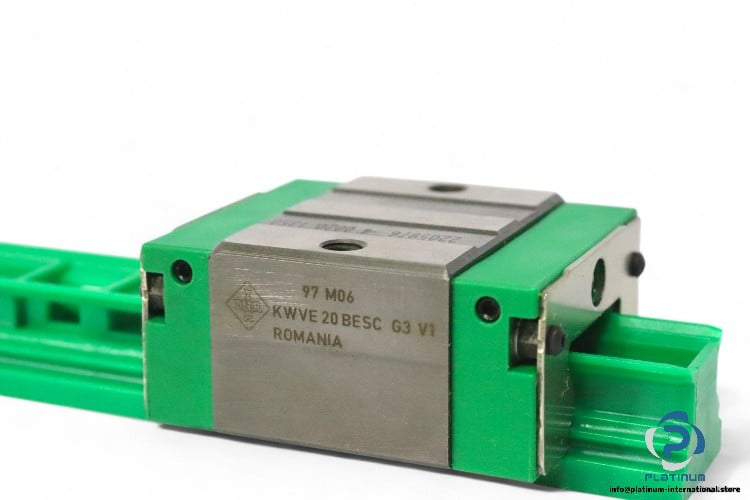

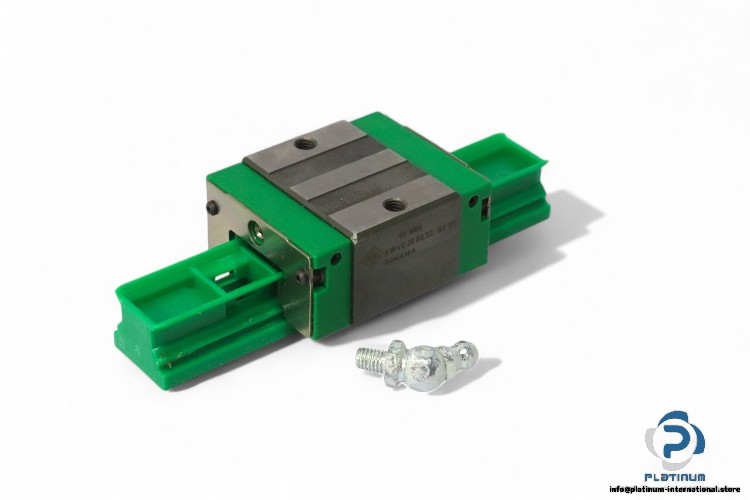

INA Kwve 20 Besc G3 V1 Linear Recirculating Ball Bearing

Manufacturer: INA
Type:  LINEAR RECIRCULATING BALL BEARING
Model: KWVE-20-BESC-G3-V1

Size: 20

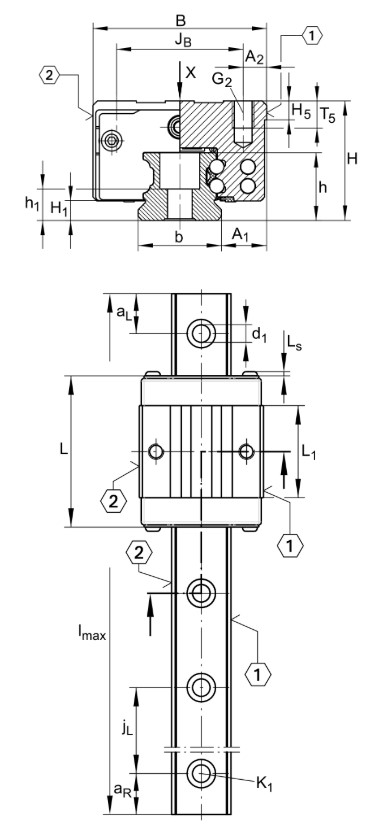

Dimensions
Length ( L ): 50.4 mm
Width ( B ): 42 mm
Height ( H ): 28 mm
Block height: 23.5 mm
J_B: 32 mm
Basic Load Ratings:
Dynamic C: 8900 N
Static C₀: 15400 N
Static Moment Rating About X Axis: 190 Nm
Static Moment Rating About Y Axis: 85 Nm
Static Moment Rating About Z Axis: 85 Nm
Block Type: Flange Type
Material name: KWVE
Version: B
Carriage design: ESC, (Expanded design, short, narrow carriage)
Accuracy Class: G3
Carriage Preload: V1
