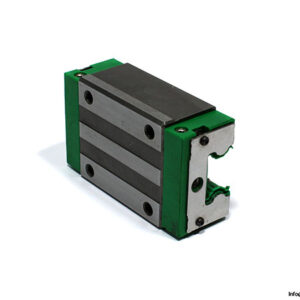

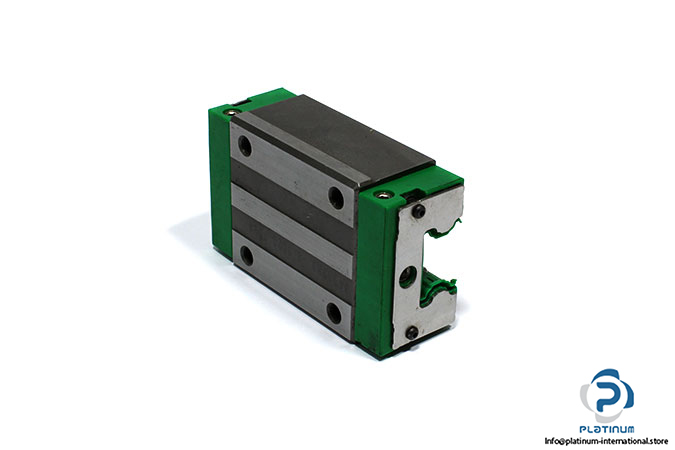

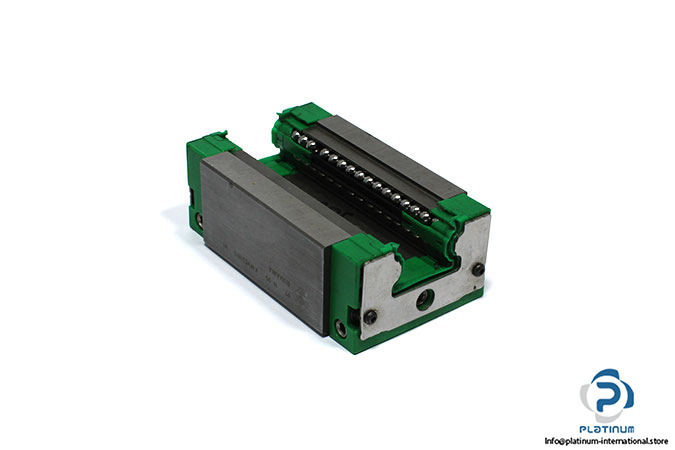

INA KWVE20BS V1 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

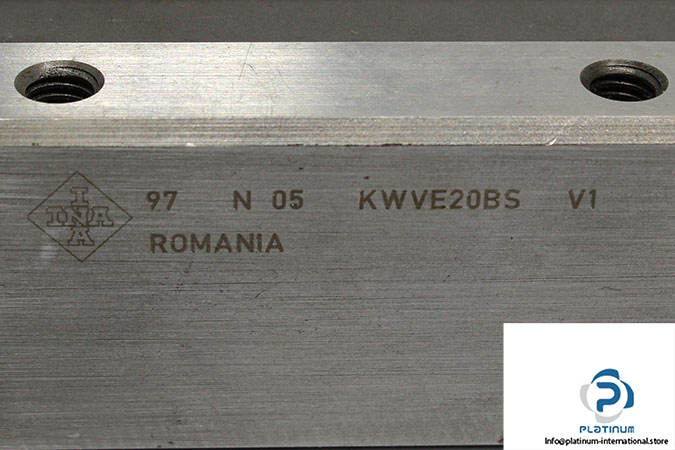

Model: KWVE 20 BS V1

Size: 20

Carriage Design: Narrow carriage

Basic Load Ratings:

Dynamic C: 13100 N

Static C₀: 27000 N

Static Moment Rating About:

X axis M_0x: 332 Nm

Y axis M_0Y: 240 Nm

Z axis M_0Z: 240 Nm

Preload: V1

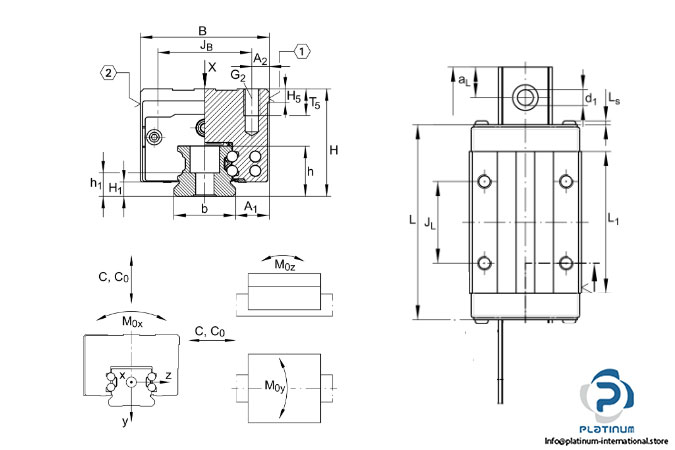

Dimensions

Total Height H: 30 mm

Width carriage B: 44 mm

Overall length carriage L: 71.4 mm

J_B: 32 mm

J_L: 36 mm
