INA KWVE25-B-220/910/220-V2-G3 Linear Recirculating Ball Bearing Carriage
New
Available on request
Linear Recirculating Ball Bearing Carriage
The INA KWVE25-B-220/910/220-V2-G3 is a high-precision linear bearing carriage designed for smooth motion in industrial automation, featuring G3 accuracy class and V2 preload.AccuracyAutomationBallbearingcarriagCarriageG3Guidewayhigh-loadhigh-precisionInaIndustrialKWVE25-B-220/910/220-V2-G3LinearMachineryPreloadRecirculatingV2
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

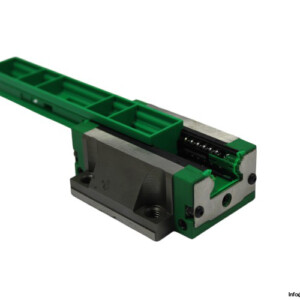

INA KWVE25-B-220/910/220-V2-G3 Linear Recirculating Ball Bearing Carriage
The INA KWVE25-B-220/910/220-V2-G3 is a precision-engineered linear recirculating ball bearing carriage designed for high-load applications. With its G3 accuracy class and V2 preload, it ensures smooth and reliable linear motion for industrial automation and machinery.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing Carriage
Model: KWVE25-B-220/910/220-V2-G3

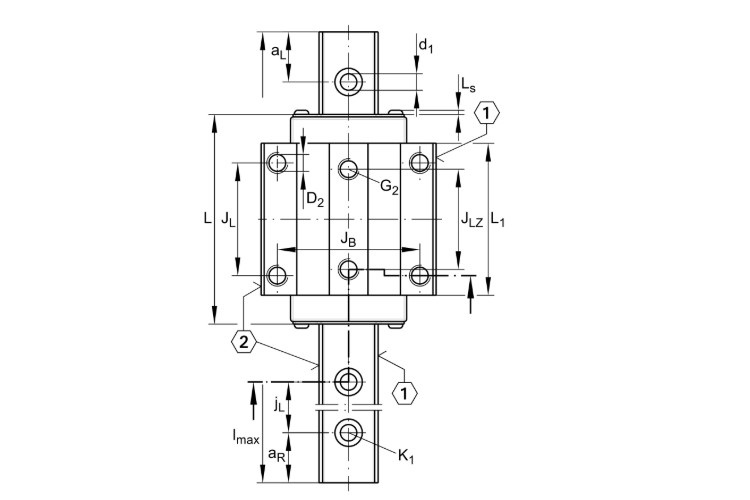

Dimensions:
Basic Load Ratings:
Static Moment Ratings:
| Size | 25 |
| Length (L) | 83.3 mm |
| Width (B) | 70 mm |
| Height (H) | 36 mm |
| Block Height | 30.9 mm |
| JB | 57 mm |
| Guideway Length | 910 mm |
| aL | 220 mm |
| aR | 220 mm |
| Dynamic (C) | 17,900 N |
| Static (C0) | 37,000 N |
| About X Axis | 510 Nm |
| About Y Axis | 395 Nm |
| About Z Axis | 395 Nm |
| Accuracy Class | G3 |
| Carriage Preload | V2 |
