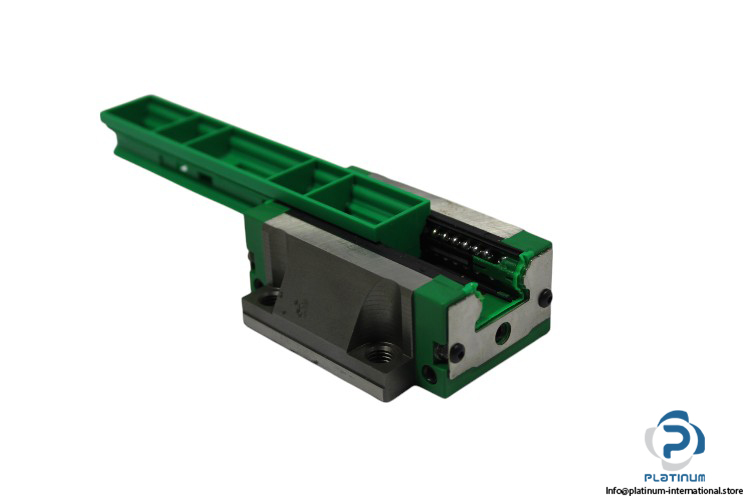

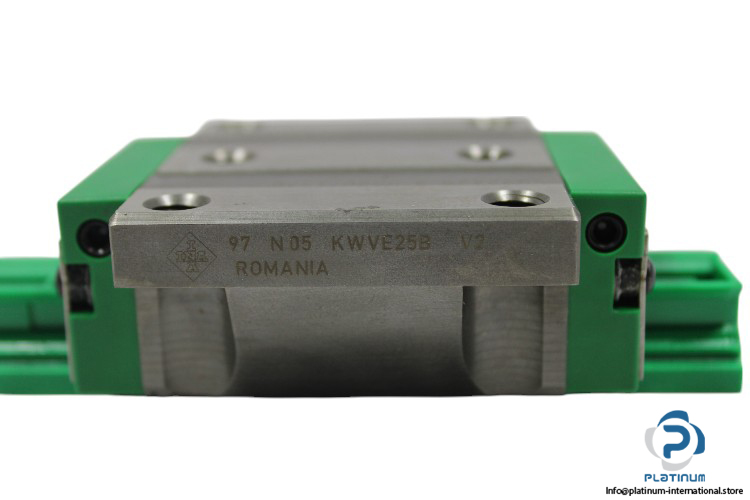

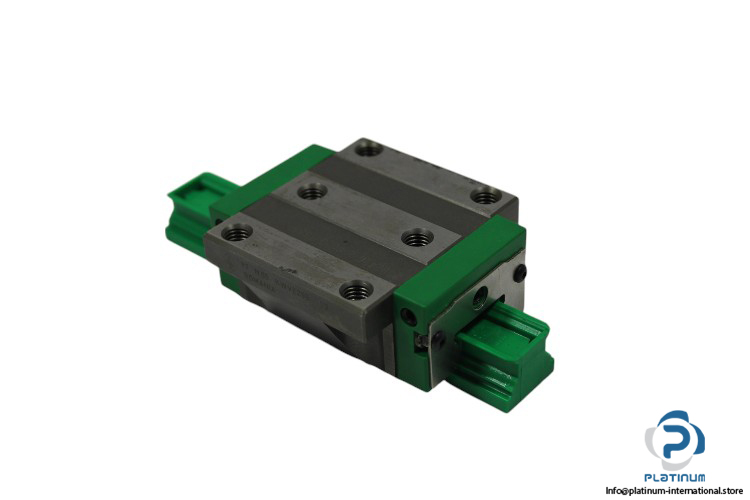

INA KWVE25B V2 Linear Recirculating Ball Bearing Carriage
The INA KWVE25B V2 is a high-performance linear recirculating ball bearing carriage, engineered for precision and durability. With a robust design and optimized preload, it ensures smooth linear motion, making it ideal for industrial automation, CNC machinery, and heavy-duty applications.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing Carriage
Model: KWVE25B V2
Size: 25

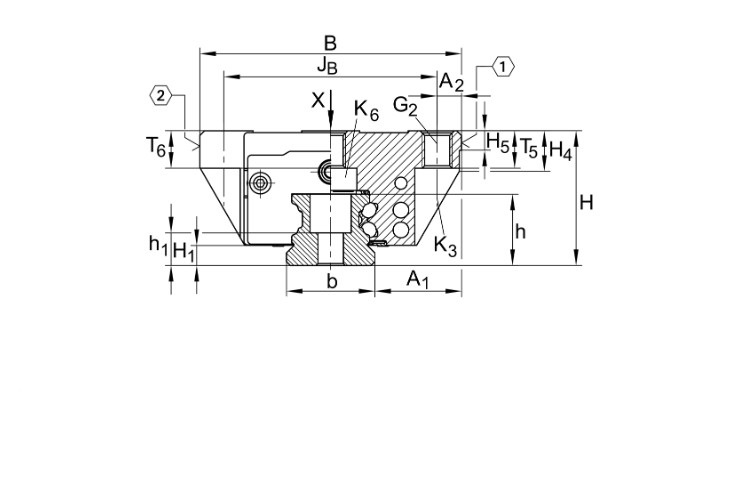

Dimensions:
Basic Load Ratings:
| Length (L) | 83.3 mm |
| Width (B) | 70 mm |
| Height (H) | 36 mm |
| Block Height | 30.9 mm |
| JB | 57 mm |
| Dynamic (C) | 17,900 N |
| Static (C0) | 37,000 N |
| Static Moment Rating About X Axis | 510 Nm |
| Static Moment Rating About Y Axis | 395 Nm |
| Static Moment Rating About Z Axis | 395 Nm |
| Carriage Preload | V2 |
