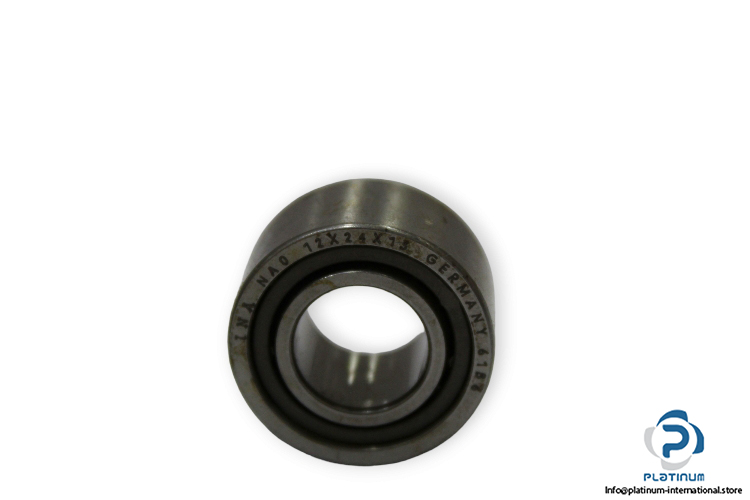

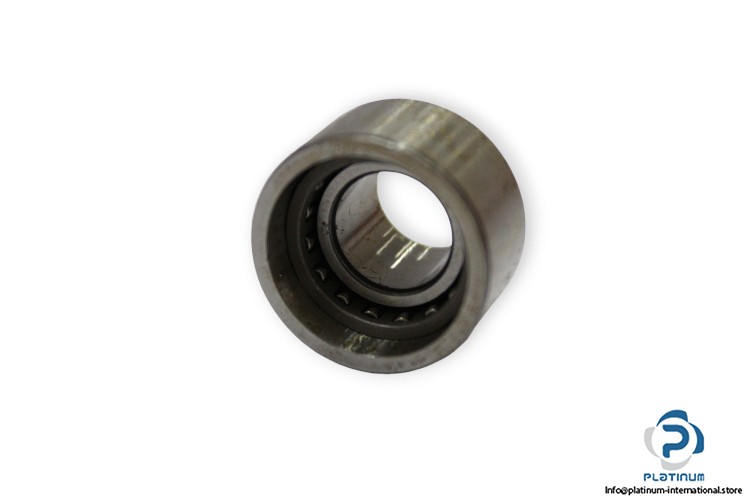

INA NAO 12X24X13 Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Needle Roller Bearing

Model: NAO12X24X13



Dimensions

Bore diameter d: 12 mm

Outer diameter D: 24 mm

Width B: 13 mm

Minimum chamfer dimension rmin: 0.3 mm

Basic load ratings:

Dynamic C_r: 8900 N

Static C_0r: 11800 N

Fatigue load limit C_ur: 1560 N

Reference speed: 15000 rpm

Limiting speed: 23600 rpm

Operating temperature:  -30 … +120 °C
