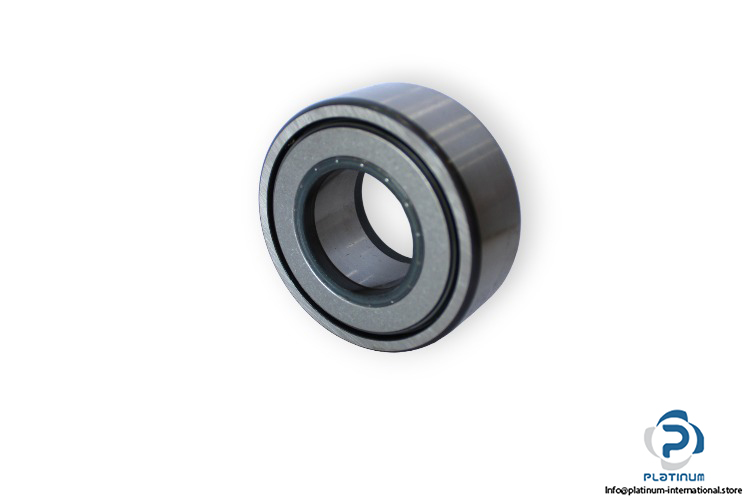

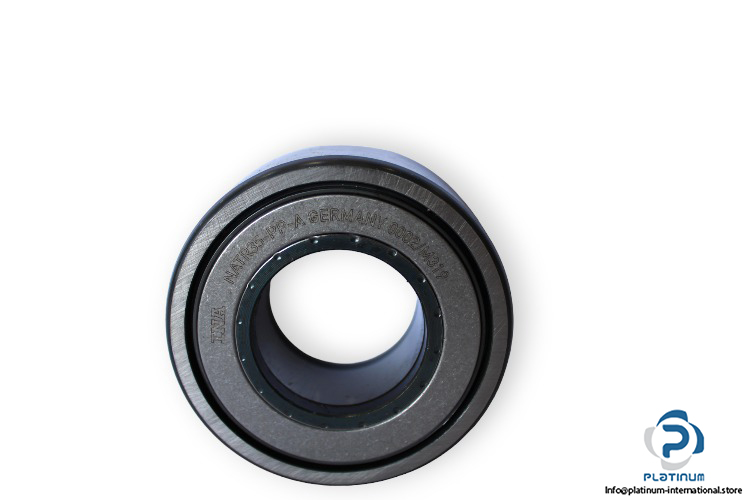

INA NATR35-PP-A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers NATR
Model: NATR35PPA
Replaces: NATR35-PP-A

Dimensions:
Bore diameter d: 35 mm
Outside diameter D: 72 mm
Width, inner ring B: 29 mm
Basic load ratings, radial:
Dynamic C_{r w}: 24800 N
Static C_{0r w}: 45000 N
Fatigue load limit, radial: 6000 N
Speed on permanent grease lubrication: 1000 rpm
Permissible static load, radial: 45000 N
Permissible dynamic load outer ring, radial: 45000 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
