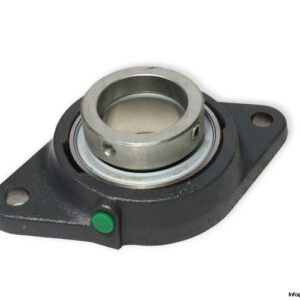

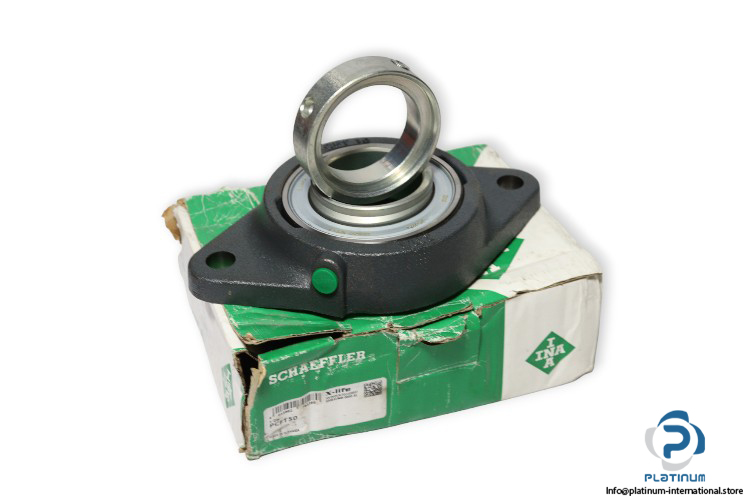

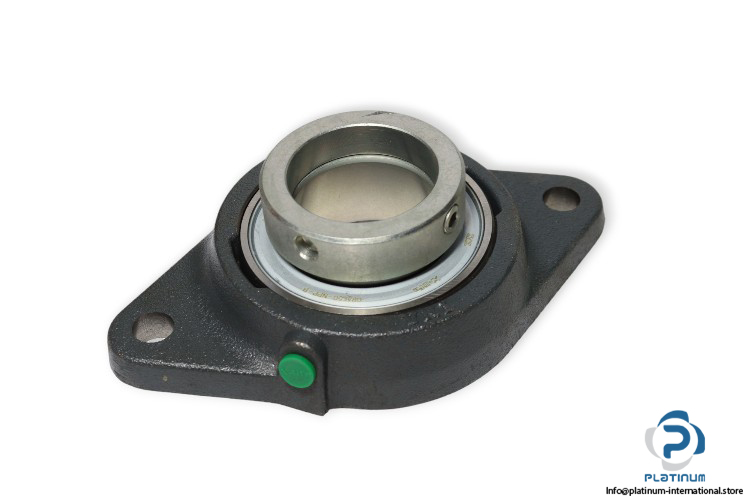

INA PCFT50 Flanged Housing Unit

Manufacturer: INA
Type: two-bolt flanged housing units
Model: PCFT 50
Replaces: PCFT50-XL

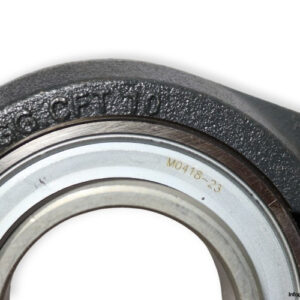

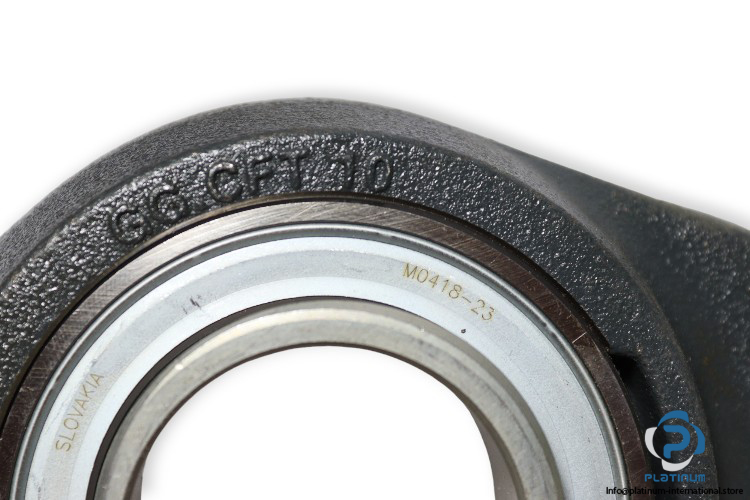

Housing: GG. CFT10

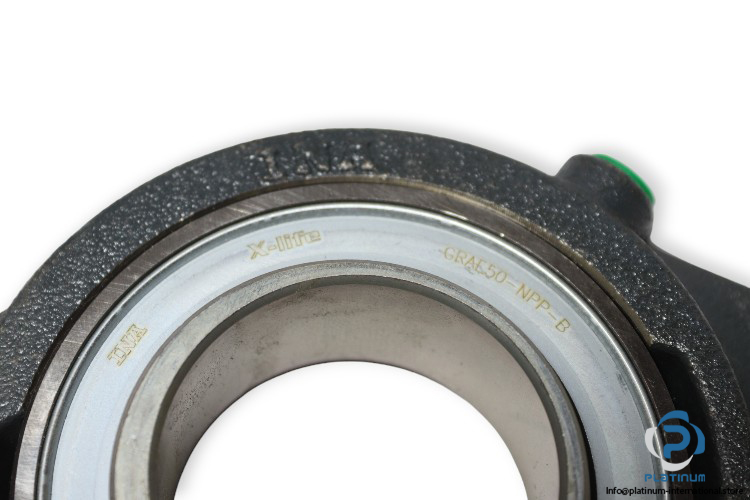

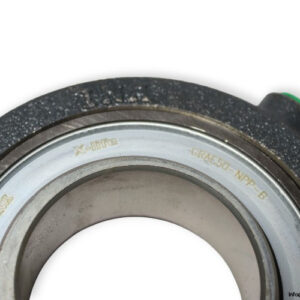

Bearing designation: GRAE50-NPP-B

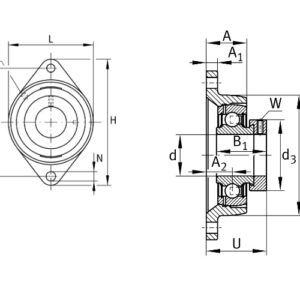

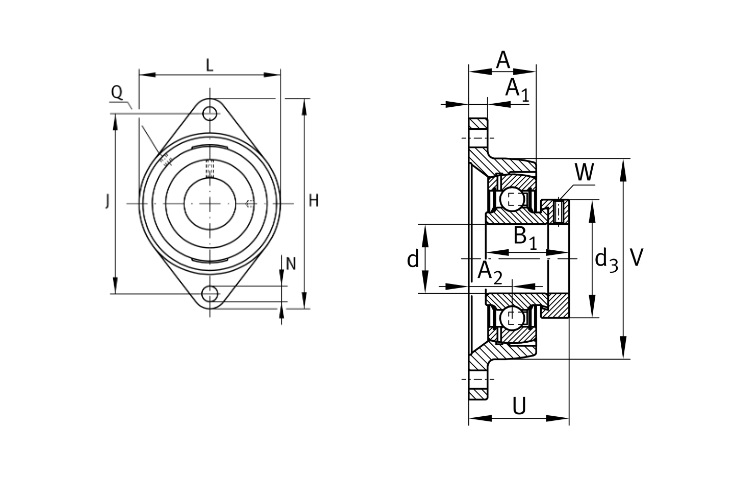

Bore Diameter d: 50 mm
Flange width L: 116 mm
Height flange H: 190 mm
Total height unit U: 51.9 mm
Distance fixing bore J: 157 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 37500 N
Basic static load rating: 23200 N
Fatigue load limit: 1090 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
