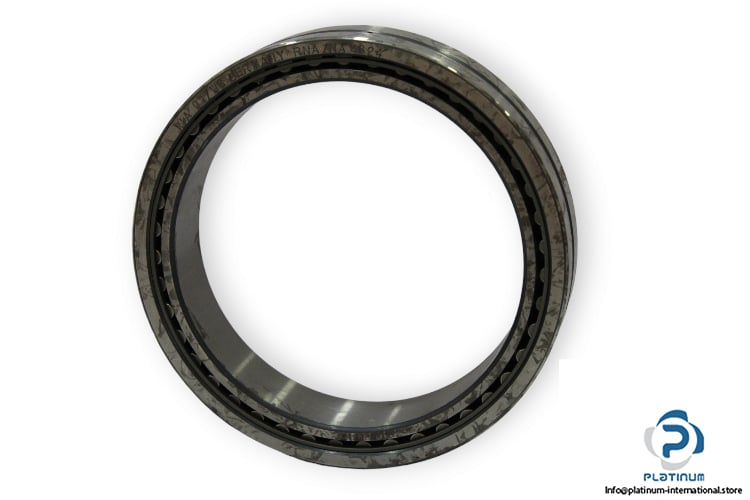

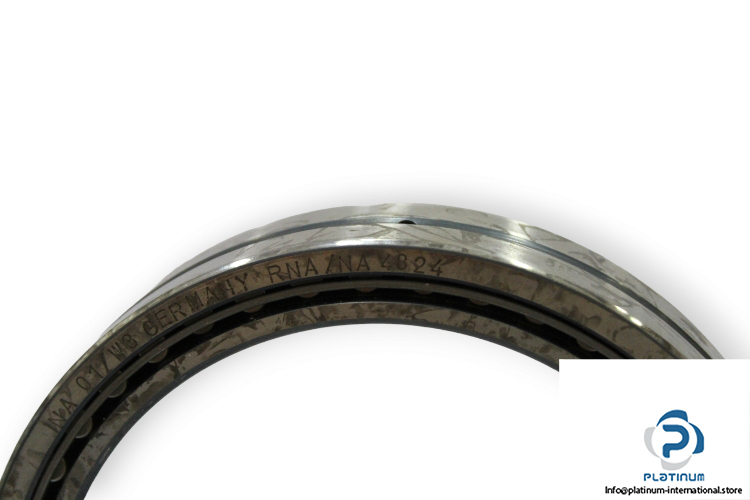

INA RNA/NA4824 Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Needle Roller Bearing

Model: NA4824

Replaces: NA4824-XL

Dimensions

Bore diameter d: 120 mm

Outer diameter D: 150 mm

Width B: 30 mm

Minimum chamfer dimension rmin: 1 mm

Basic load ratings:

Dynamic C_r: 112000 N

Static C_0r: 239000 N

Fatigue load limit C_ur: 39500 N

Reference speed: 2070 rpm

Limiting speed: 3600 rpm

Operating temperature:  -30 … +120 °C
