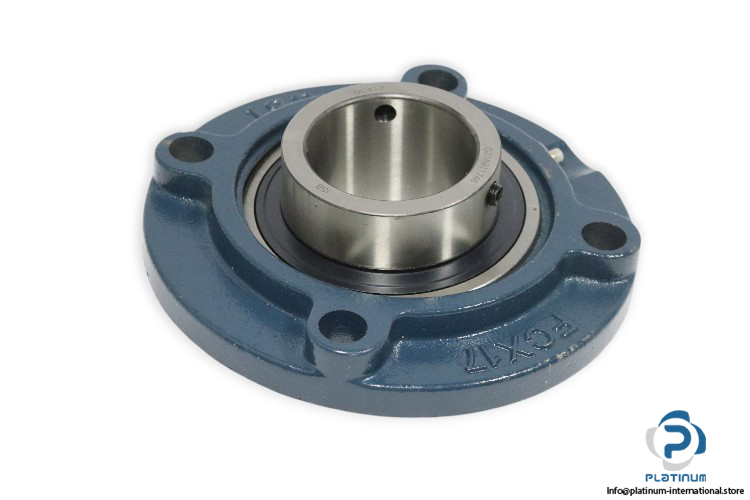

Round Flange Ball Bearing Unit – UCFCX17
The Round Flange Ball Bearing Unit (Model: UCFCX17) by ISB is designed for heavy-duty applications. It features high load ratings and robust construction for long-term reliability. Below are the key specifications:

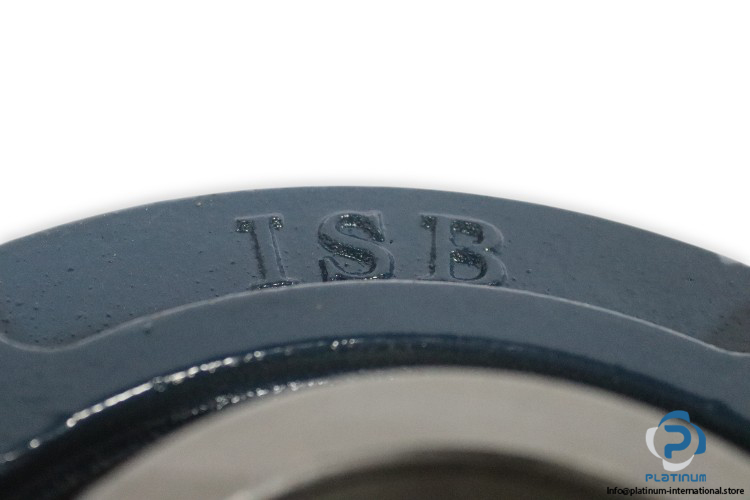

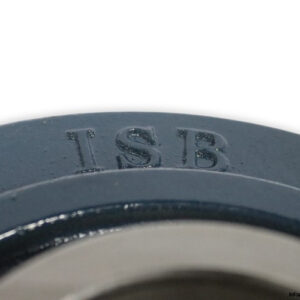

- Manufacturer: ISB
- Type: Round Flange Ball Bearing Unit
- Model: UCFCX17

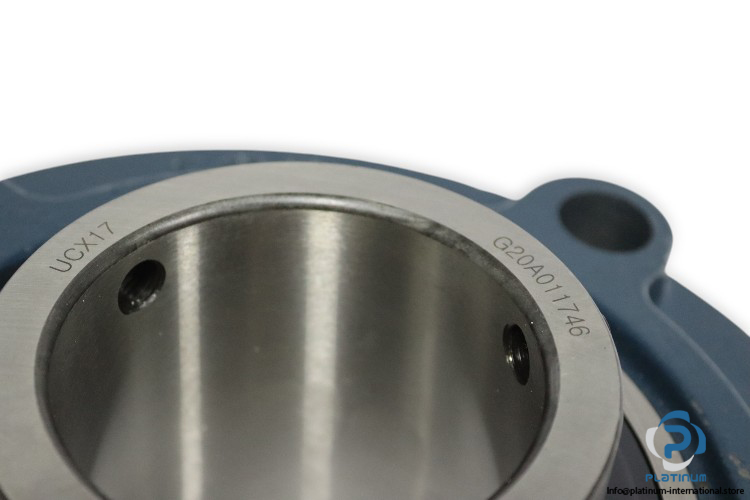

- Bearing Number: UC X17

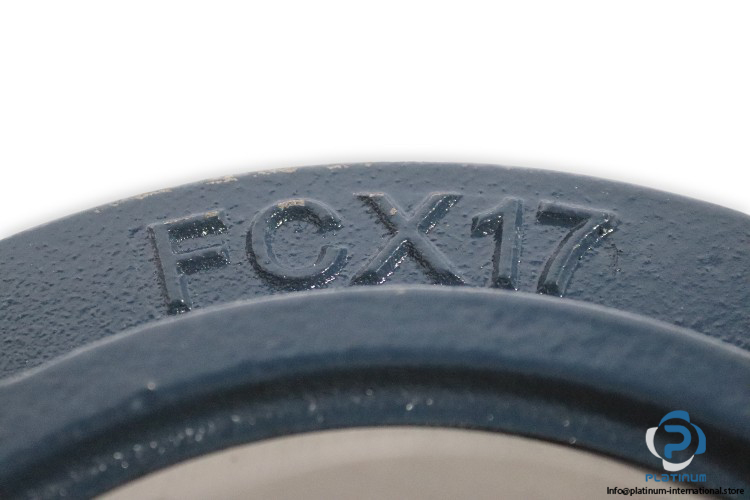

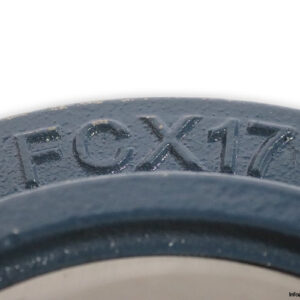

- Housing Number: FCX17

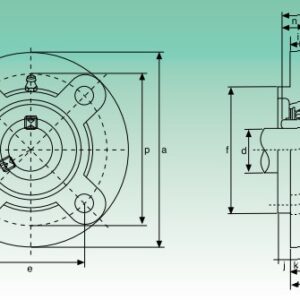

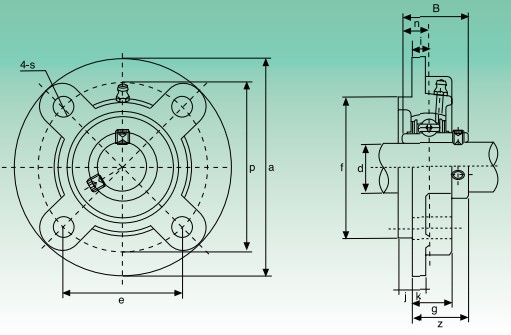

Dimensions
- Bore Diameter (d): 85 mm
- Outside Diameter (a): 260 mm
- Distance Between Attachment Bolts (e): 154.8 mm
- Pitch Diameter of Attachment Bolts (p): 219 mm
- Length of Attachment Bolt Hole (S): 23 mm
- Width of Inner Ring: 96 mm
- Overall Width: 66.3 mm
Load Ratings
- Dynamic Load Rating: 91295 N
- Static Load Rating: 67925 N
Additional Information
- Bolt Size: M20
