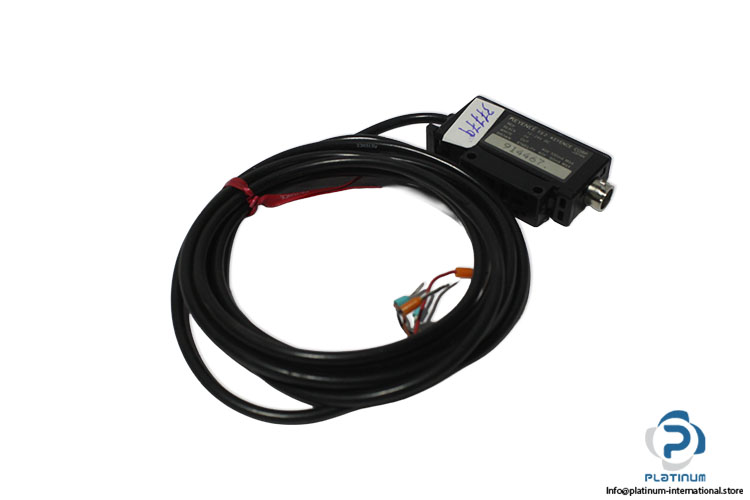

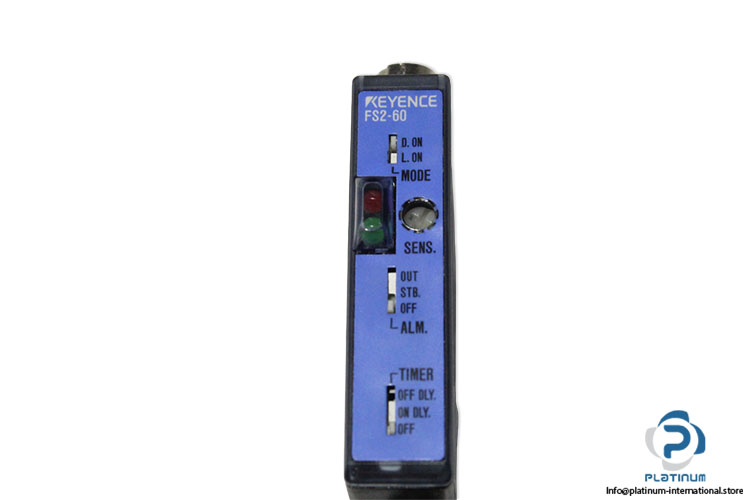

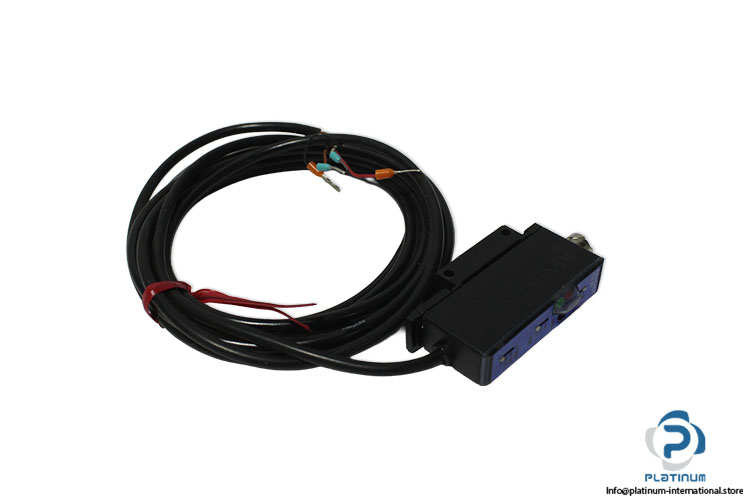

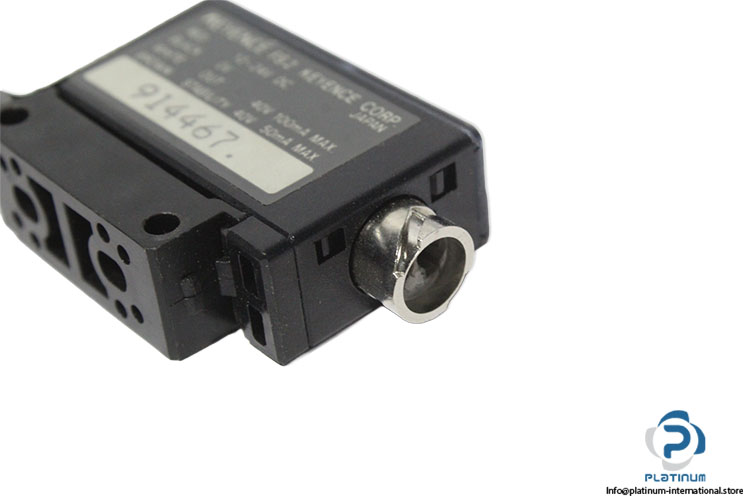

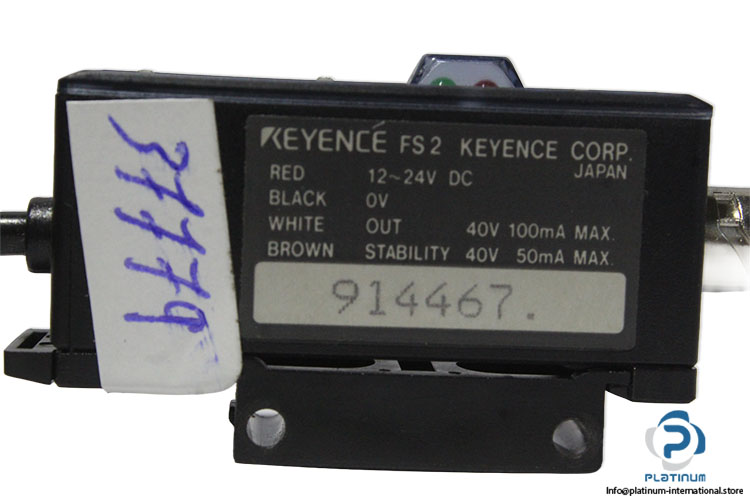

Keyence FS2-60 Fiber Photoelectric Amplifier Sensor
New
In stock1 unitReady to ship
Fiber Photoelectric Amplifier Sensor The Keyence FS2-60 fiber photoelectric amplifier sensor features a 12–24 VDC power supply, long detecting distance, NPN outputs, red LED light source, and adjustable sensitivity, making it ideal for reliable industrial sensing and automation applications.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 914467 |
| Power voltage | 12 to 24 VDC |
| Current consumption | max. 35 mA |
| Detecting | Trimmer, Long detecting distance |
| Light source | Red LED |
| Sensitivity adjustment | 8-turn trimmer |
| Output | NPN output |
| Control output | NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max. |
| Stability output | NPN open-collector 50 mA max. (40 V max.), Residual voltage 1 V max. |
| Operation mode | LIGHT-ON/DARK-ON |
| Response time | 250 µs |
| Ambient temperature | -10 to +55 °C |
| Ambient light | Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. |
| Material | Polycarbonate |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098151 |
| Weight | 0,06 |
