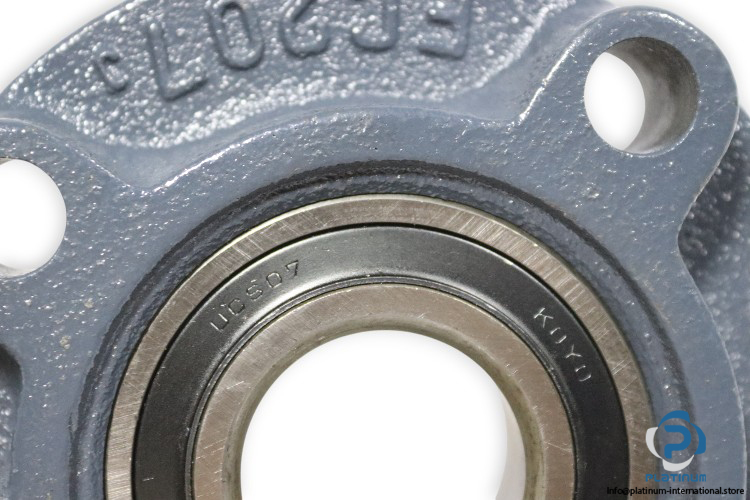

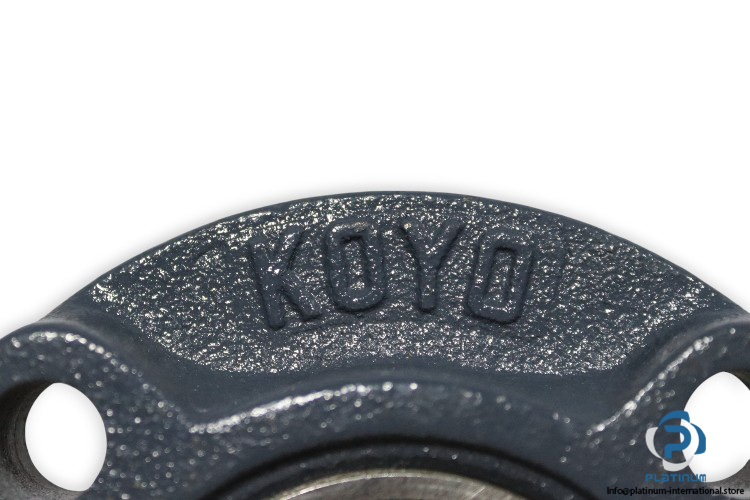

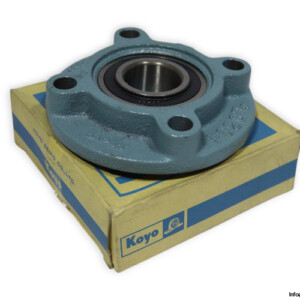

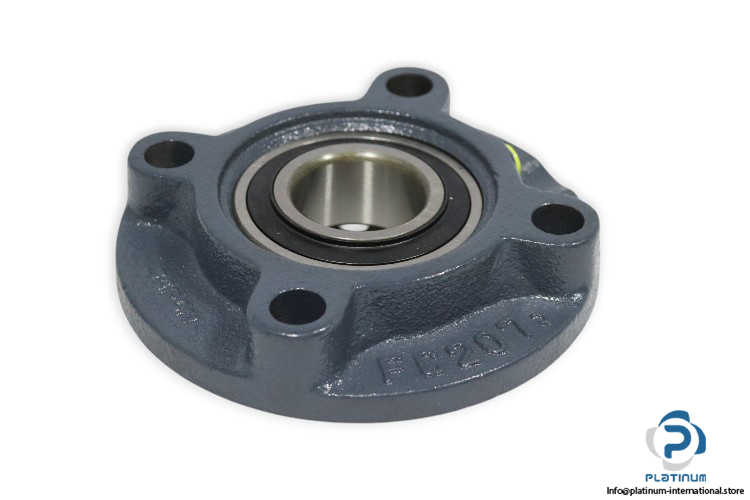

Koyo UKFC207 J Round Flange Ball Bearing Unit
Koyo UKFC207 J Round Flange Ball Bearing Unit, 30 mm bore, cast iron housing, 25.7 kN dynamic load, set screw lock, M12 bolt size.
Koyo UKFC207 J Round Flange Ball Bearing Unit
The Koyo UKFC207 J is a durable and reliable round flange ball bearing unit designed for industrial applications requiring precise motion and robust support. With a tapered bore and a set screw locking device, this unit offers secure installation and consistent performance under demanding conditions. The cast iron housing ensures durability, while its compact design and easy mounting make it suitable for a wide range of applications.
🔧 Technical Specifications:
- Manufacturer: Koyo
- Type: Round Flange Ball Bearing Unit
- Model: UKFC207 J
- Bearing Number: UK207

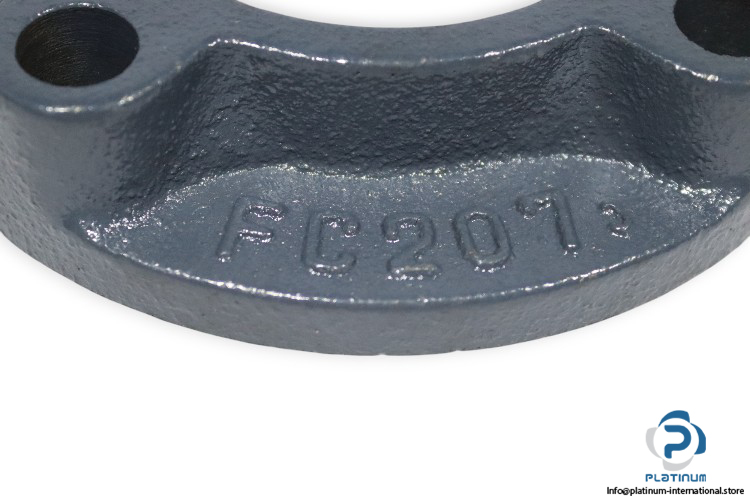

- Housing Number: FC207J
- Bore Diameter (d): 30 mm
- Outside Diameter (L): 135 mm
- Distance Between Attachment Bolts (J1): 77.8 mm
- Pitch Diameter of Attachment Bolts (J): 110 mm
- Length of Attachment Bolt Hole (N): 14 mm
- Width of Inner Ring (B): 43 mm
- Overall Width (A0): 35 mm
- Basic Load Rating Dynamic (Cr): 25.7 kN
- Basic Load Rating Static (C0r): 15.4 kN
- Fatigue Load Limit: 0.700 kN
- Locking Device: Set Screw
- Bore Type: Tapered
- Material, Housing: Cast Iron
- Bolt Size: M12
The UKFC207 J is an ideal choice for applications requiring high load-bearing capacity and consistent performance, making it a reliable option for various industrial settings.
