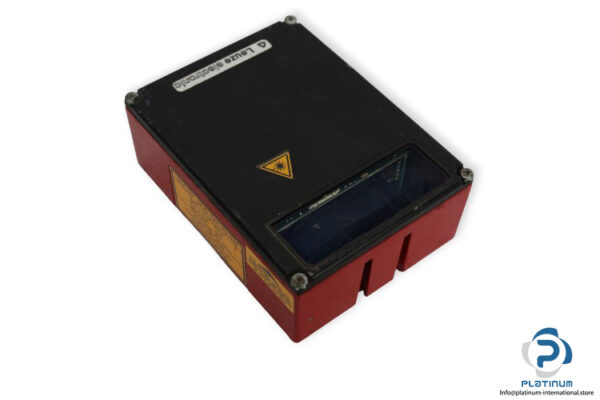

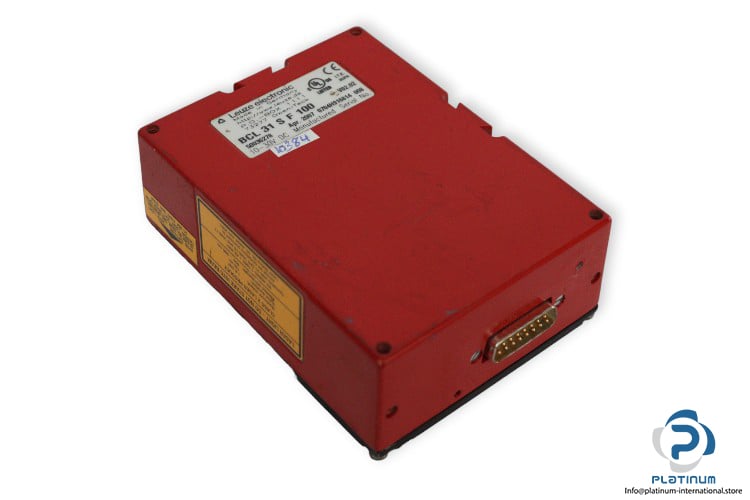

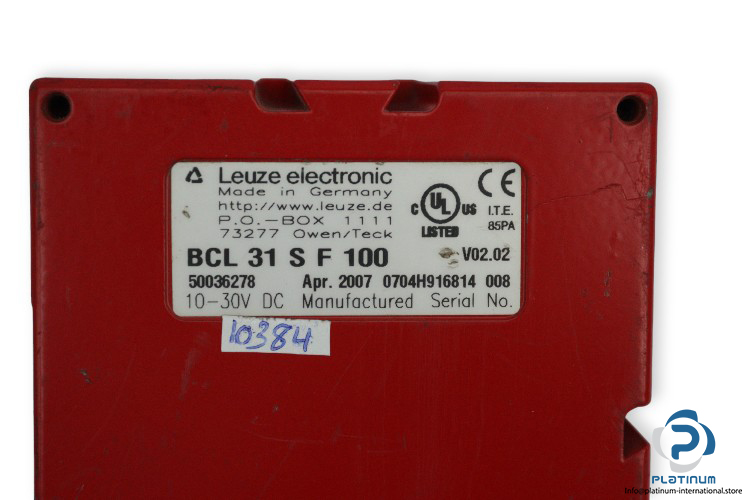

Leuze Electronic BCL31SF100 Stationary BAR Code Reader

Manufacture: Leuze Electronic
Type: Stationary bar code reader
Model: BCL31SF100
Part No.: 50036278

Supply voltage: 10 … 30 V DC
Switching current, max.: 100 Ma
Power consumption, max.: 3.2 W
Light source: Laser, Red
Wavelength: 650 nm
Reading distance: 50 … 550 mm
Modulus size: 0.3 … 0.8 mm
Reading method: Line scanner
Scanning rate: 800 scans/s
Number of digital switching inputs: 1
Number of digital switching outputs: 1
Interface: RS 485, RS 232
Housing material: Metal
Ambient temperature, operation: 0 … 40 °C
Degree of protection: IP 65
Dimensions: 90 x 120 x 43 mm
