Leuze IS 208MM/4NO-2E0-S8.3 Inductive Switch

Leuze IS 208MM/4NO-2E0-S8.3 Inductive Switch

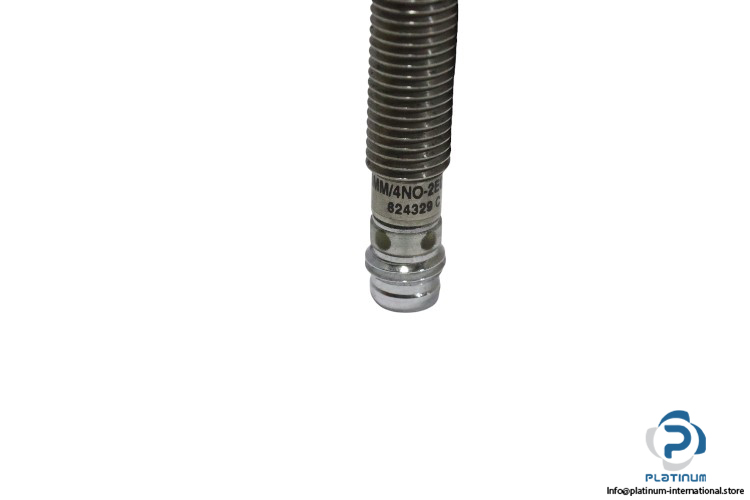

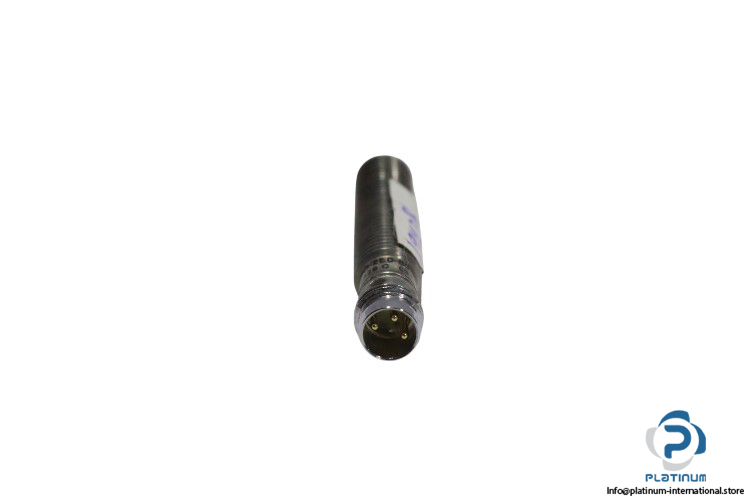

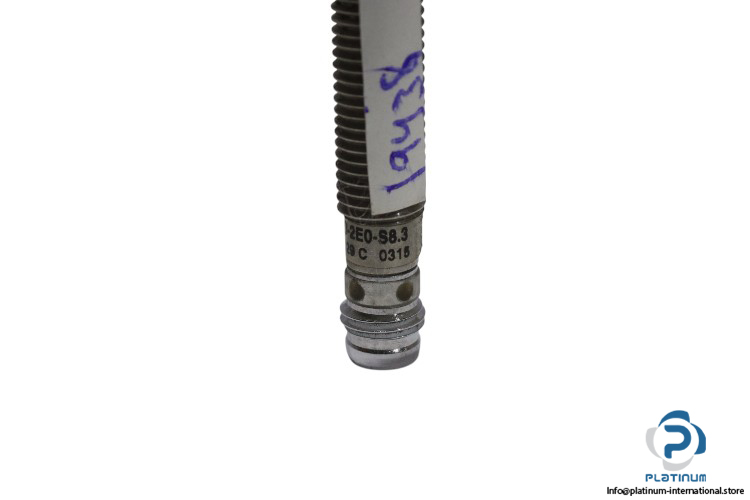

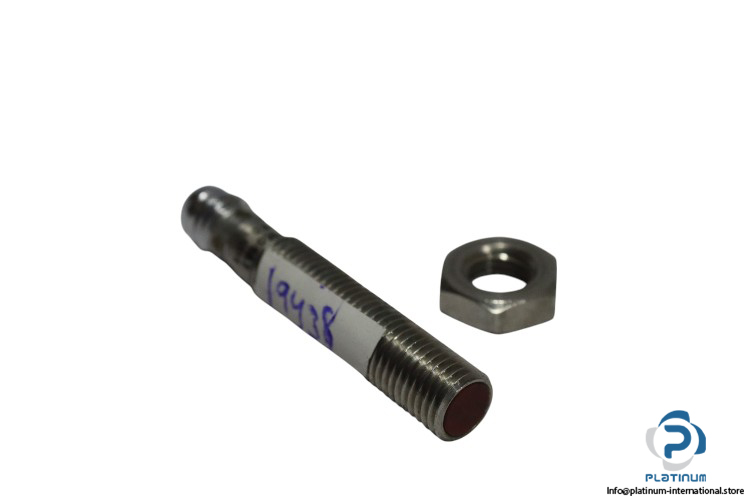

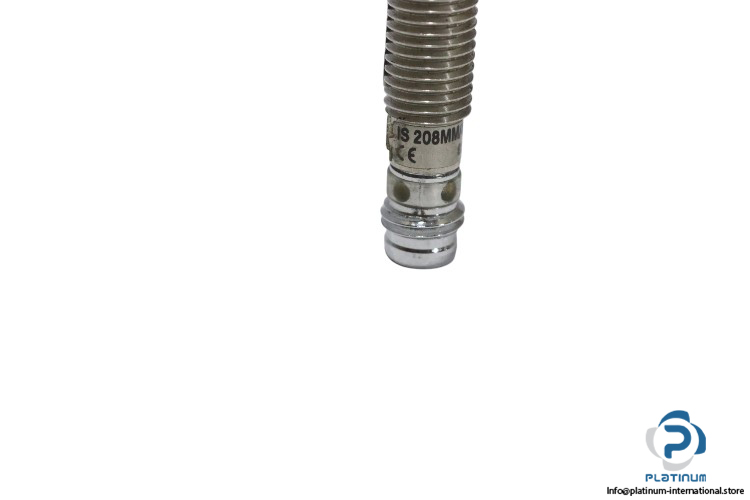

The Leuze IS 208MM/4NO-2E0-S8.3 is a compact and durable inductive switch designed for precise and reliable detection of metallic objects in industrial automation environments. Part of the 208 Series, this cylindrical sensor features a PNP transistor output with normally open (NO) switching functionality. With a nominal sensing range of 2 mm and a robust M8 stainless steel threaded housing, it is built for space-constrained installations and harsh conditions. The sensor supports polarity reversal and short-circuit protection and connects via a standard 3-pin connector.

• Manufacturer: Leuze
• Type: Inductive Switch
• Model: IS 208MM/4NO-2E0-S8.3

Technical Specifications:

• Series: 208
• Operating Range (Sn): 2 mm
• Usable Operating Range (Sa): 0 … 1.6 mm
• Supply Voltage (UB): 10 … 30 V DC
• Open-Circuit Current: 0 … 10 mA
• Switching Current (Max.): 200 mA
• Switching Element: Transistor, PNP
• Switching Principle: NO (Normally Open)
• Connection Type: 3-pin Connector
• Thread Size: M8 x 1 mm
• Design: Cylindrical
• Dimensions (Ø x L): 8 mm x 45 mm
• Housing Material: Stainless Steel
• Sensing Face Material: Plastic, Polyamide (PA 12)
• Protective Features: Polarity reversal, short-circuit, inductive protection
• Degree of Protection: IP67
• Ambient Temperature Range: -25 to 70 °C

Applications:

• Position and object detection
• Automated manufacturing systems
• Machine monitoring and safety
• Industrial process control
