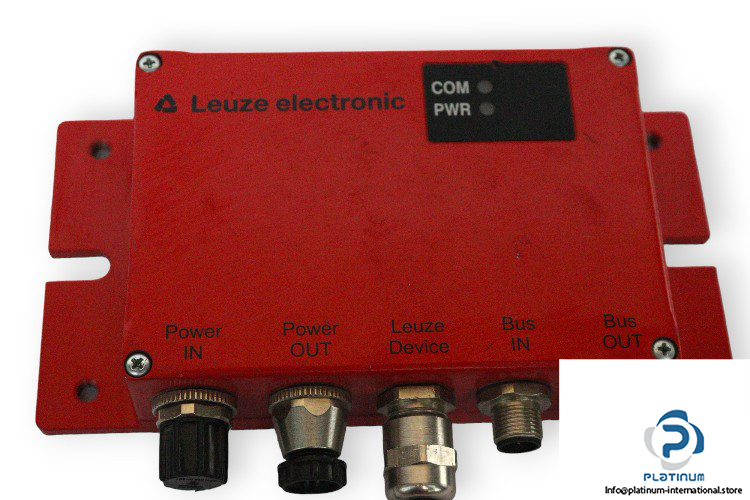

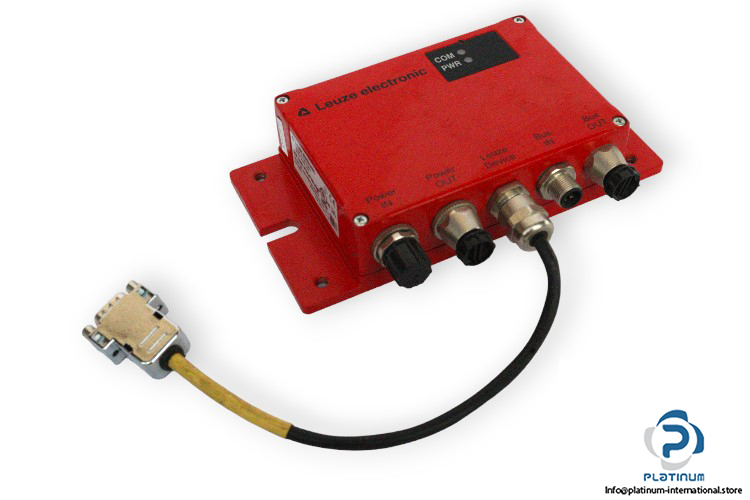

Leuze MA 204I Profibus Modular Connection Unit

Manufacture: Leuze
Type: Modular connection unit
Model: MA204IPROFIBUS
Part No.: 50112893

Supply voltage: 18 … 30 V DC
Current consumption max.: 300 Ma
Interface: PROFIBUS DP, RS 232
Switching outputs current max.: 500 mA
Number of connections: 6 (Connection to device Plug connector, BUS
OUT connector, BUS IN connector, 2 Voltage supply connector, Service interface Sub-D)
Housing material: Metal
Ambient operation temperature: 0 … 55 °C
Degree of protection: IP 65
Dimension (W x H x L): 107 x 40 x 180 mm
