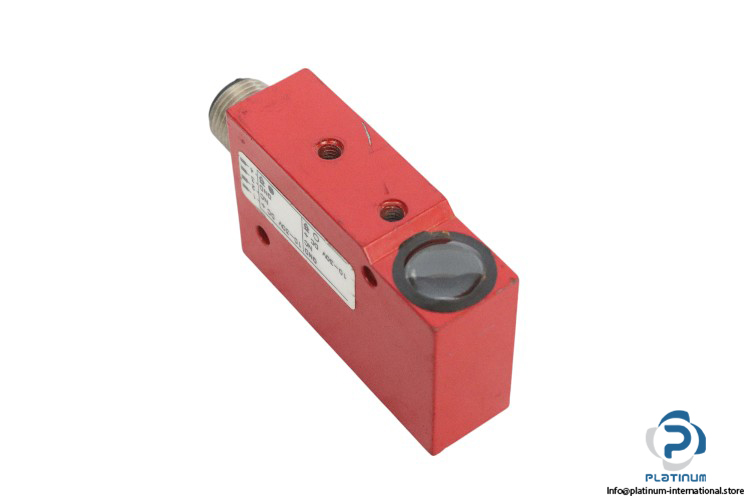

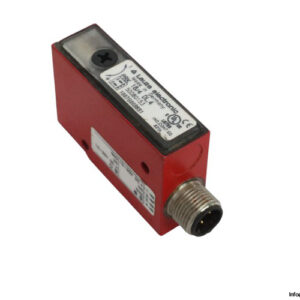

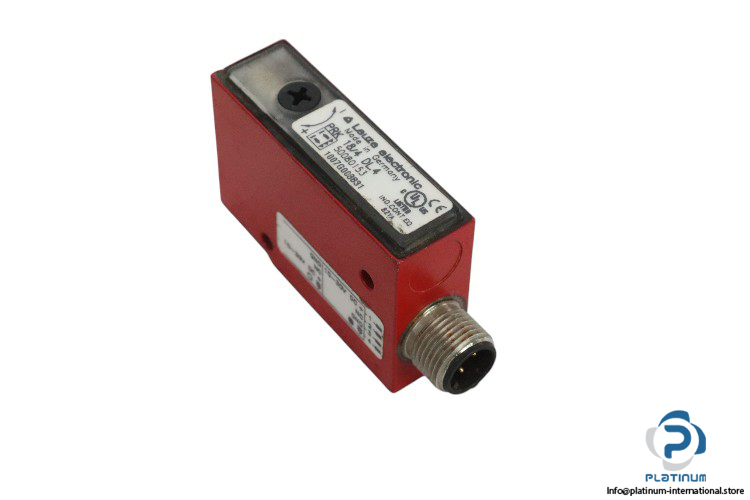

Leuze PRK 18/4 DL.4 Photoelectric Sensor

Leuze Electronic Polarized Retro-Reflective Photoelectric Sensor PRK 18/4 DL4

Leuze Electronic Polarized Retro-Reflective Photoelectric Sensor PRK 18/4 DL4 is an advanced sensor designed for detecting highly transparent bottles, films, and glass panes in industrial applications. With precise detection capabilities and robust features, it is ideal for high-speed and reliable operation in a wide range of environments.

• Manufacturer: Leuze electronic
• Type: Polarized Retro-Reflective Photoelectric Sensor
• Model: PRK 18/4 DL4

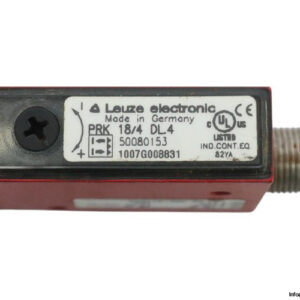

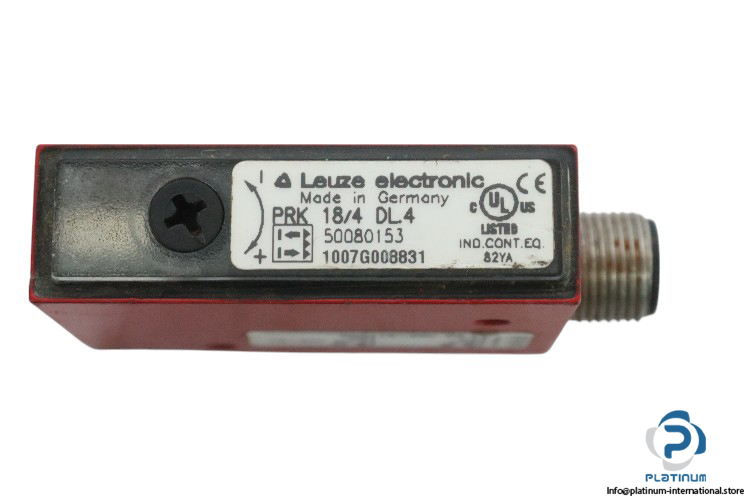

• Part No.: 50080153 1007G008831
• Series: 18

Technical Data:

• Application: Detection of highly transparent bottles, films, and glass panes
• Operating Principle: Reflection principle
• Supply Voltage: 10 to 30 V DC
• Open-Circuit Current: 0 to 35 mA
• Operating Range: 0 to 2.4 m
• Operating Range Limit: 0 to 3 m
• Light Source: LED, Red
• Wavelength: 660 nm

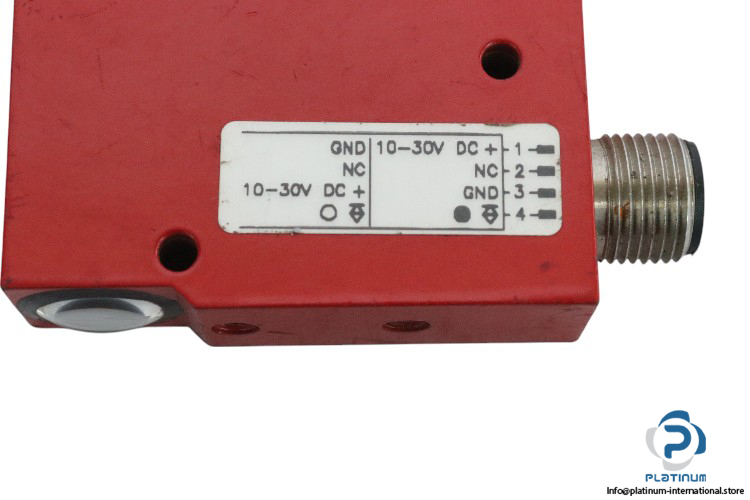

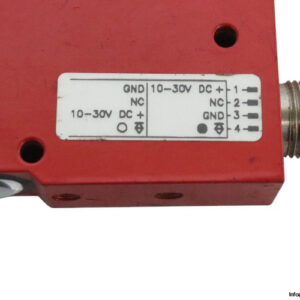

• Type of Connection: M12 Connector
• No. of Pins: 4-pin
• Housing Material: Metal
• Switching Frequency: 1,500 Hz
• Response Time: 0.33 ms
• Switching Element: Transistor, PNP
• Switching Principle: Light/dark switchable
• Protective Circuit: Polarity reversal protection, short circuit protected
• Ambient Temperature (Operation): -25 to 55 °C
• Dimension (W x H x L): 15 x 50 x 33 mm
