Nachi Ucfc 207 Round Flange Ball Bearing Unit
New
In stock2 unitsReady to ship
Flanged Bearing Unit
Nachi UCFC207 round flanged ball bearing unit with 35 mm bore, cast iron housing, and set screw locking for industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

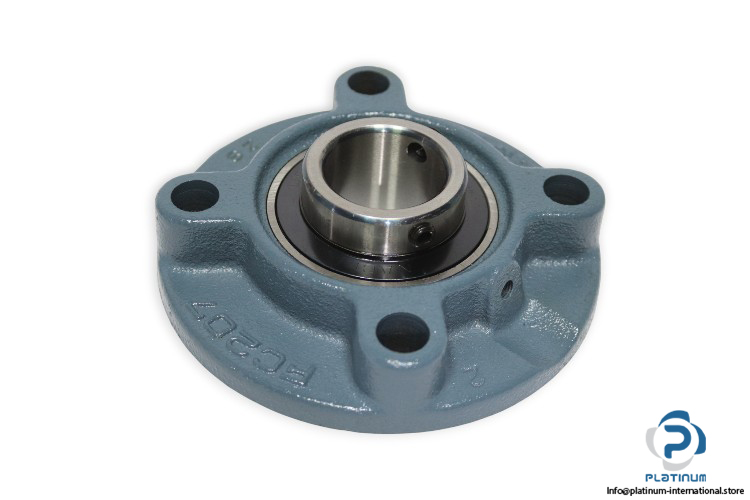

Nachi UCFC207 Round Flanged Ball Bearing Unit
The Nachi UCFC207 is a round flanged ball bearing unit designed to provide stable shaft support, easy mounting, and reliable performance in industrial applications.
Manufacturer: Nachi
Type: Round Flanged Ball Bearing Unit
Model: UCFC207
Bearing Number: UC207

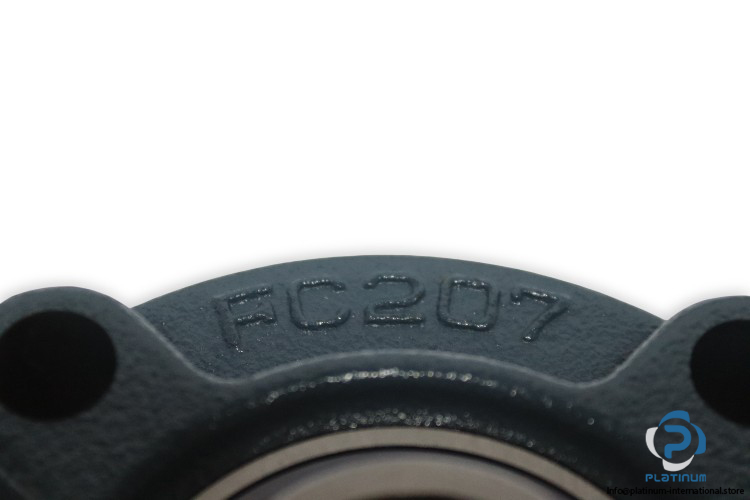

Housing Number: FC207

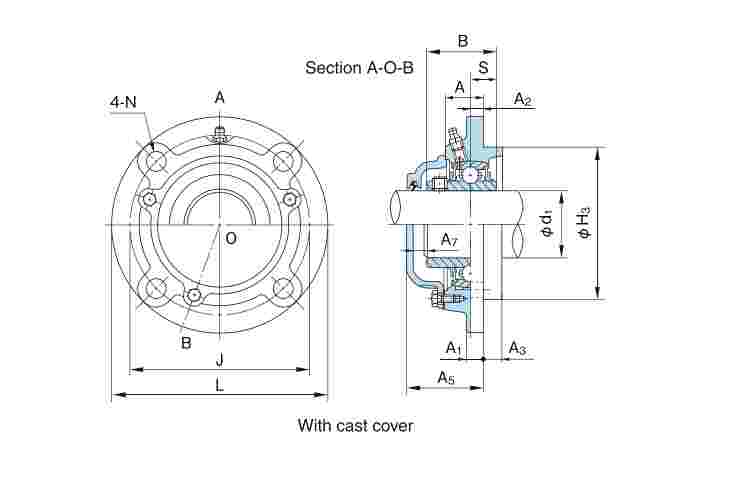

| Bore Diameter (d) | 35 mm |
| Outside Diameter (L) | 135 mm |
| Pitch Diameter of Attachment Bolts (J) | 110 mm |
| Length of Attachment Bolt Hole (N) | 14 mm |
| Width of Inner Ring (B) | 42.9 mm |
| Overall Width (A0) | 36.4 mm |
| Dynamic Load Rating | 25,900 N |
| Static Load Rating | 15,400 N |
| Bolt Size | M12 |
| Locking Device | Set Screw |
| Housing Type | Round Flange, Cylindrical Bore |
| Housing Material | Cast Iron |
