Nachi Ucfc 210 Round Flange Ball Bearing Unit
New
In stock1 unitReady to ship
Ball Bearing Unit
Nachi UCFC210 square flanged ball bearing unit with 50 mm bore, cast iron housing, and set screw locking for industrial mounting applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nachi UCFC210 Square Flanged Ball Bearing Unit
The Nachi UCFC210 is a square flanged ball bearing unit designed for secure shaft support and reliable performance in industrial mounting applications. Its cast iron housing and set screw locking system provide stability, durability, and ease of installation.
Manufacturer: Nachi
Type: Square Flanged Ball Bearing Unit
Model: UCFC210

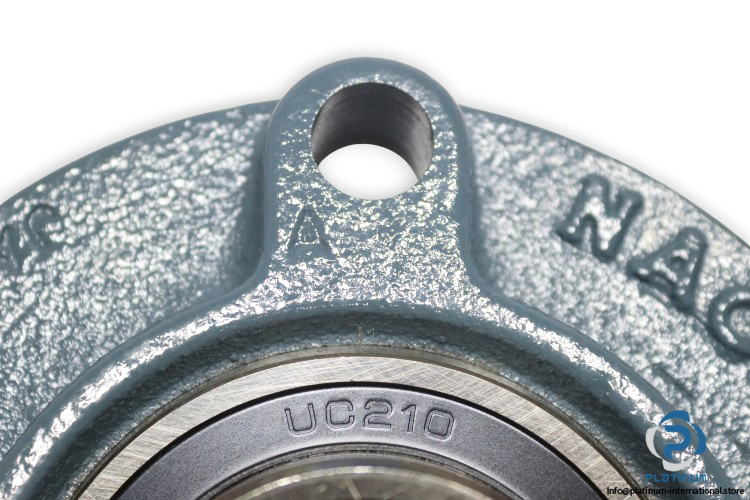

Bearing Number: UC210

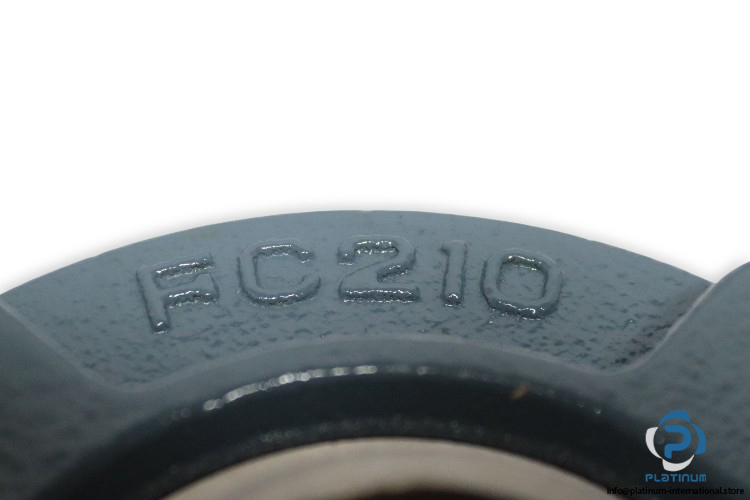

Housing Number: FC210

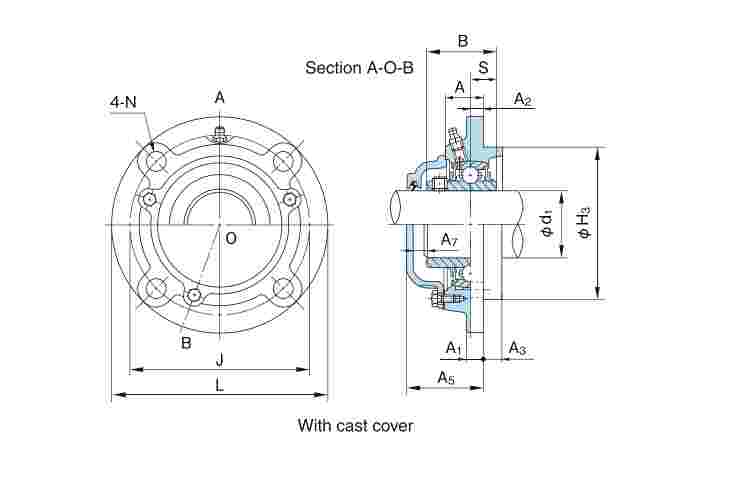

| Bore Diameter (d) | 50 mm |
| Outside Diameter (L) | 165 mm |
| Pitch Diameter of Attachment Bolts (J) | 138 mm |
| Length of Attachment Bolt Hole (N) | 16 mm |
| Width of Inner Ring (B) | 51.6 mm |
| Overall Width (A0) | 42.6 mm |
| Dynamic Load Rating | 35,500 N |
| Static Load Rating | 23,200 N |
| Bolt Size | M14 |
| Locking Device | Set Screw |
| Housing Type | Round Flange, Cylindrical Bore |
| Housing Material | Cast Iron |
