Nachi Ucfk 210 ONE Side Flange Housing Unit
New
In stock1 unitReady to ship
One Side Flange Housing Unit
The Nachi UCFK210 Flange Housing Unit combines the UC 210 bearing and FK 210 housing, offering precision, durability, and reliable performance for industrial systems.21050bearingboreComponentCylindricaldiameterdurableFKFlangeHousingIndustriallockingMachinerymmNachiOnescrewSetsideUCUCFK210Unit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nachi UCFK210 One Side Flange Housing Unit
The Nachi UCFK210 One Side Flange Housing Unit is a high-quality solution for industrial applications that demand precision and durability. With its robust FK 210 housing and UC 210 bearing, this unit ensures reliable performance and stability, even in challenging environments.
Manufacturer: Nachi
Type: ONE SIDE FLANGE HOUSING UNIT
Model: UCFK210
Basic Load Rating:
Designed for reliable and stable operation, the Nachi UCFK210 One Side Flange Housing Unit is ideal for a wide range of industrial machinery, ensuring precise alignment and robust performance.

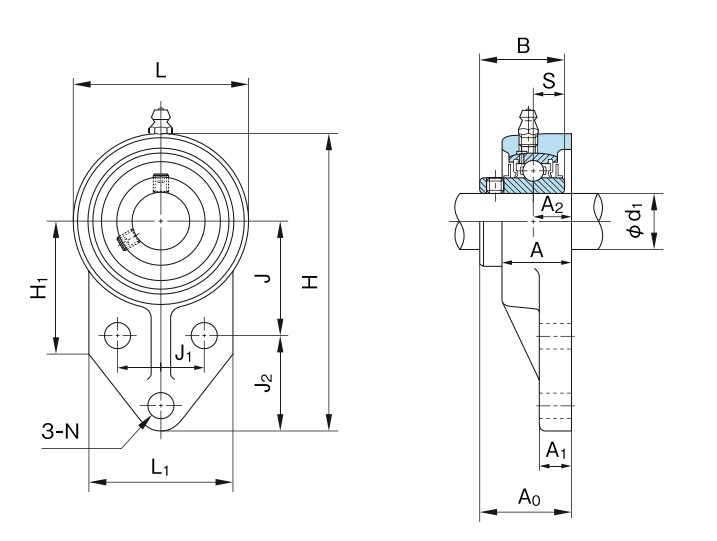

| Bearing No. | UC 210 |
| Housing No. | FK 210 |
| Bore Diameter (d) | 50 mm |
| Overall Length (L) | 112 mm |
| Overall Height (H) | 184 mm |
| Width of Inner Ring (B) | 51.6 mm |
| J | 68 mm |
| J1 | 58 mm |
| J2 | 46 mm |
| H1 | 82 mm |
| Overall Unit Width (A0) | 54.6 mm |
| Dynamic Cr | 12800 N |
| Static C0r | 6600 N |
| Bore Type | Cylindrical bore |
| Locking Device | Set Screw |
