Nachi Ucfl 205 Oval Flange Ball Bearing Unit
New
In stock1 unitReady to ship
Flanged Bearing Unit
Nachi UCFL205 cast iron oval flanged ball bearing unit with UC205 insert, 25 mm bore, set screw locking, and robust housing for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

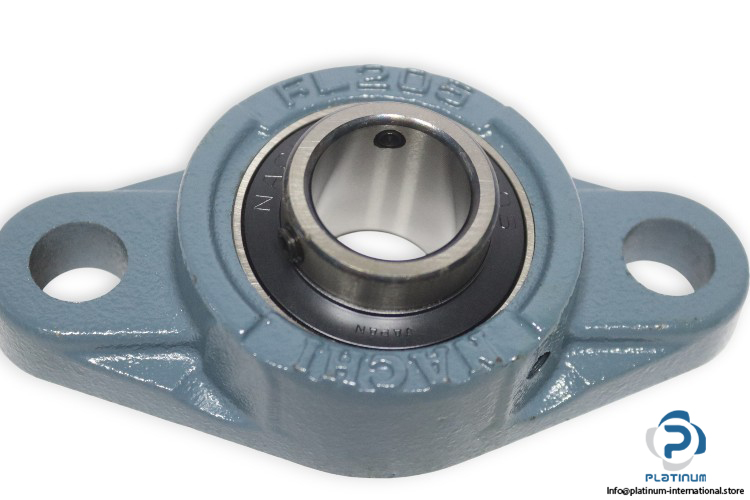

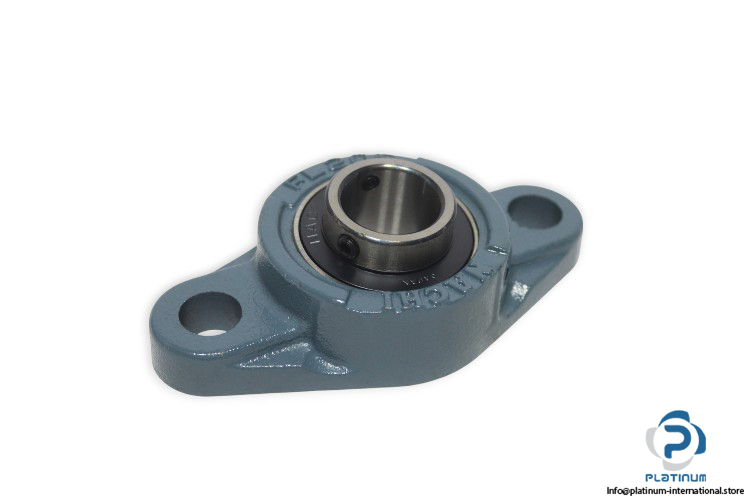

Nachi UCFL205 Cast Iron Oval Flanged Ball Bearing Unit
The Nachi UCFL205 is a cast iron oval flanged ball bearing unit designed to support radial and axial loads while ensuring stable shaft positioning in industrial applications. The unit combines a UC205 insert bearing with an FL205 oval flange housing, providing reliable performance and ease of installation.
Manufacturer: Nachi
Type: Cast Iron Oval Flanged Ball Bearing Unit
Model: UCFL205

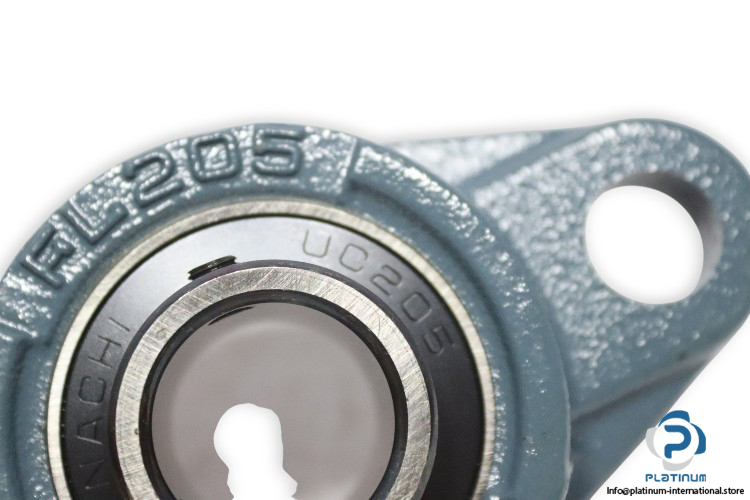

Bearing Number: UC205
Housing Number: FL205

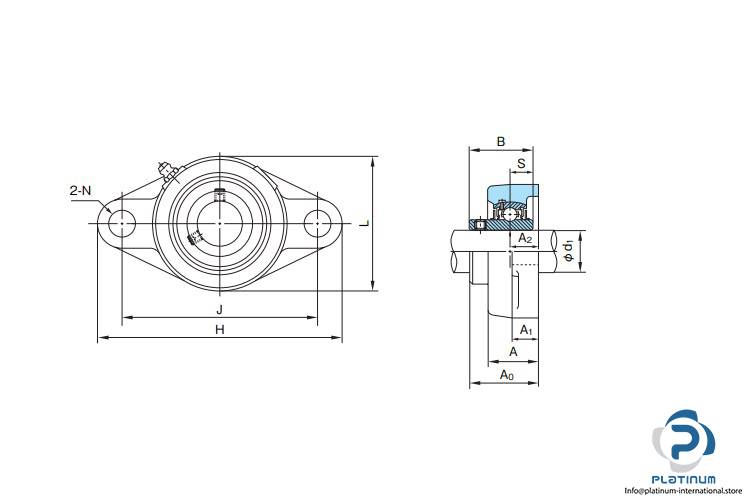

| Shaft Diameter (d) | 25 mm |
| Outside Diameter (L) | 68 mm |
| Pitch Diameter of Attachment Bolts (J) | 99 mm |
| Length of Attachment Bolt Hole (N) | 16 mm |
| Width of Inner Ring (B) | 34 mm |
| Overall Width (A0) | 35.7 mm |
| Dynamic Load Rating | 14,000 N |
| Static Load Rating | 7,900 N |
| Bolt Size | M14 |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
| Housing Type | Oval Flange, Cylindrical Bore |
| No. Of Items / Set | 2 |
