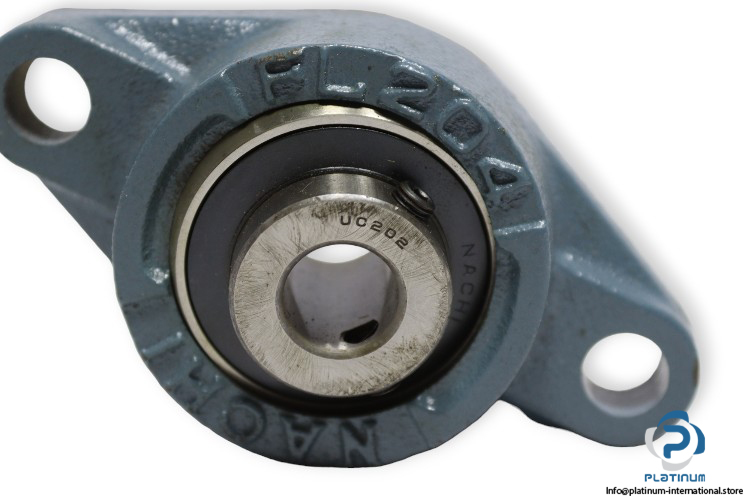

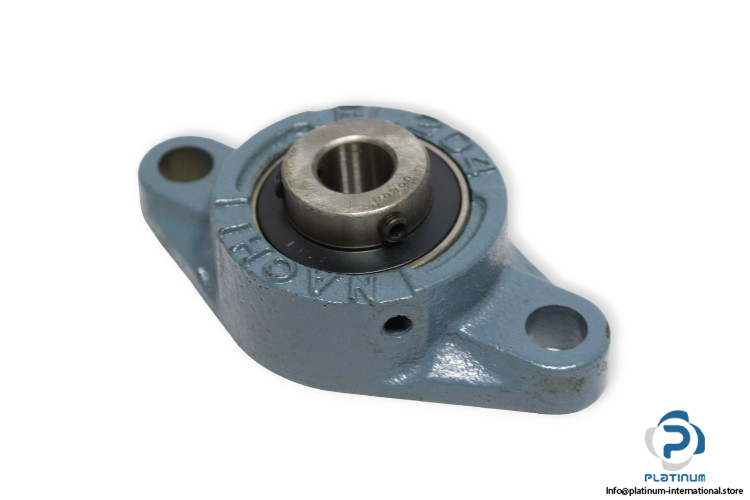

Nachi UCFL202 Oval Flange Ball Bearing Unit

Name: NACHI UCFL202 OVAL FLANGE BALL BEARING UNIT
SKU: 1030918
Availability: LimitedAvailability

nachi-UCFL202-oval-flanged-housing-unit-(new)

nachi-UCFL202-oval-flanged-housing-unit-(new)-1

nachi-UCFL202-oval-flanged-housing-unit-(new)-2

New

In stock1 unitReady to ship

Manufacturer:

Nachi

Type:

Oval flange ball bearing unit

Model:

UCFL 202

Bearing No.:

UC202

Housing No.:

FL204

Manufacturer

NACHI

SKU

1030918

Category

Plummer Block Housing Units

Condition

New

15 bearing bearings flanged Housing mm Nachi Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Nachi
Type: Oval flange ball bearing unit
Model: UCFL 202
Bearing No.: UC202
Housing No.: FL204

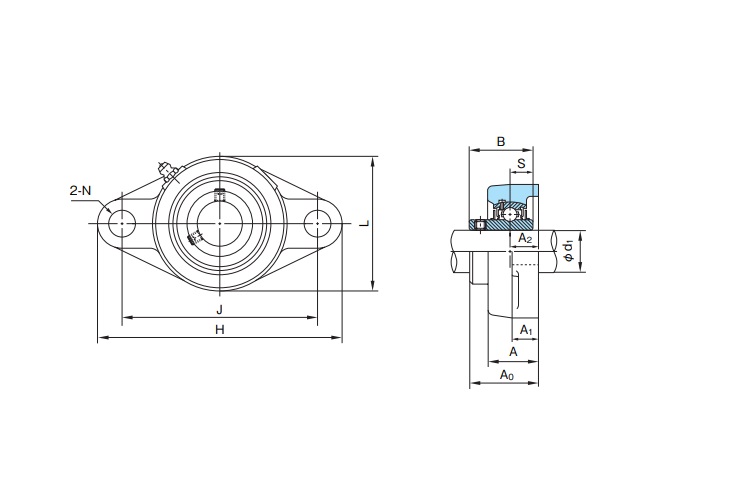

Dimensions
Bore Diameter d: 15 mm
Overall Length L: 60 mm
Overall Height H: 113 mm
Width of inner ring B: 31 mm
Distance Between Attachment Bolts J: 90 mm
Overall unit width A0: 33.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6600 N
Mounting: Oval Flange
Locking device: Set Screw
