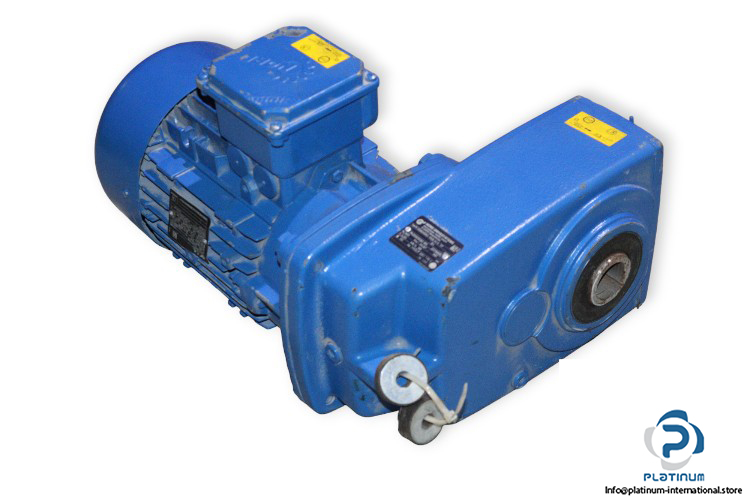

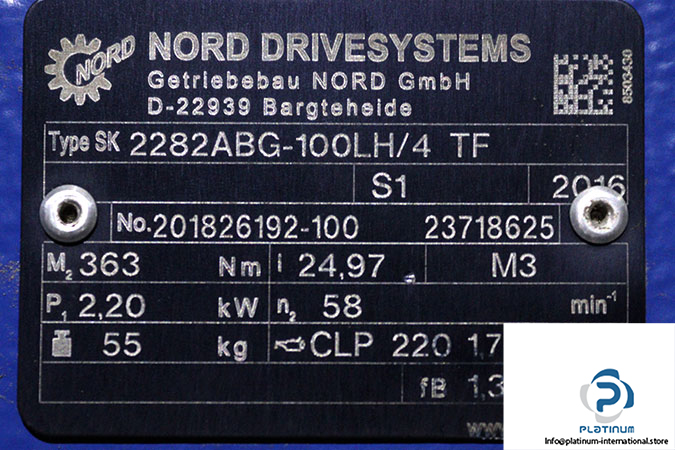

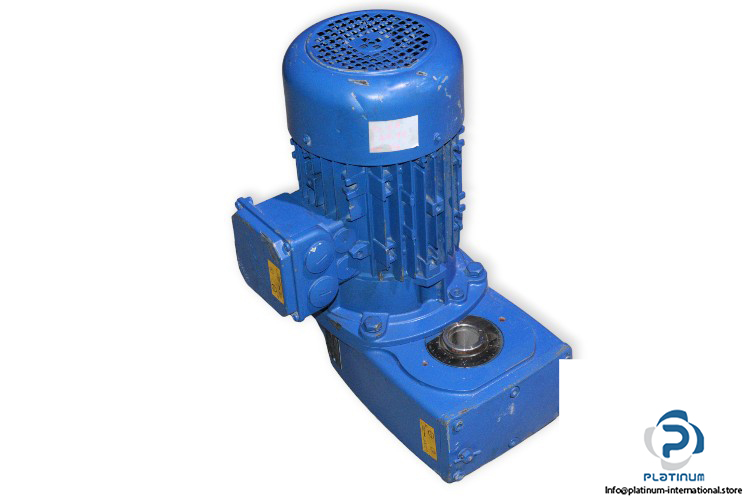

Nord SK 2282ABG-100LH/4 TF Gear Motor

Manufacturer: Nord
Type: Gear Motors
Model: SK2282ABG-100LH/4TF

Ratio [i]: 24.97
Output Speed [rpm]: 58
Rated Power [kW]: 2.2
Rated Torque [Nm]: 363
Mounting Position [IM]: M3
Duty: S1
Oil: CLP 220
Quantity [L]: 1.7

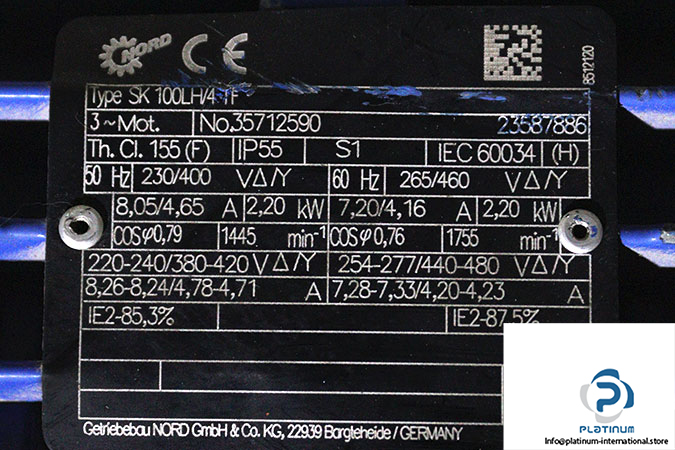

Attachment: Nord SK 100LH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK100LH/4TF
Rated Voltage [V]: 230-400/265-460 Delta-Star
Rated Power [kW]: 2.2
Rated Current [A]: 8.05-4.65/7.2-4.16
Rated Speed [rpm]: 1445-1755
Power Factor: 0.79/0.76
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Duty: S1
Insulation Class: F
