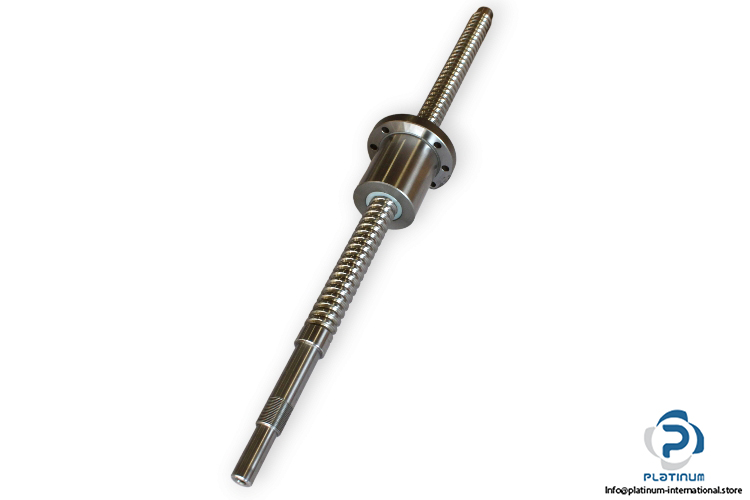

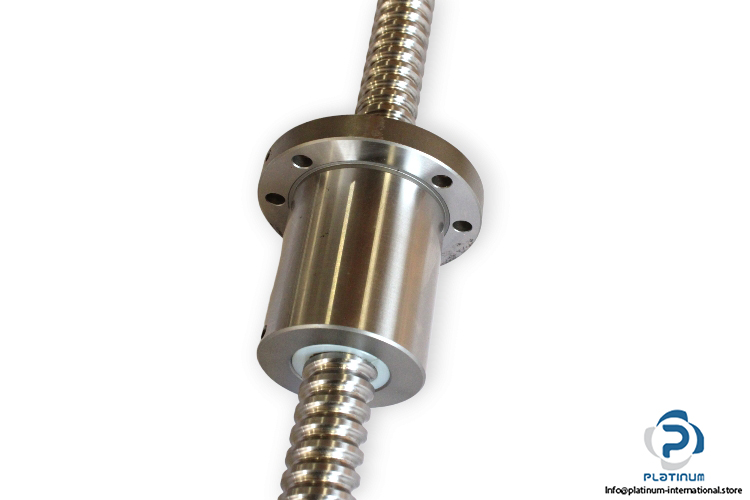

NSK W3206SA-3Z-C5Z Ball Screw

Manufacturer: NSK
Type: Flanged nut ball screw ZFT

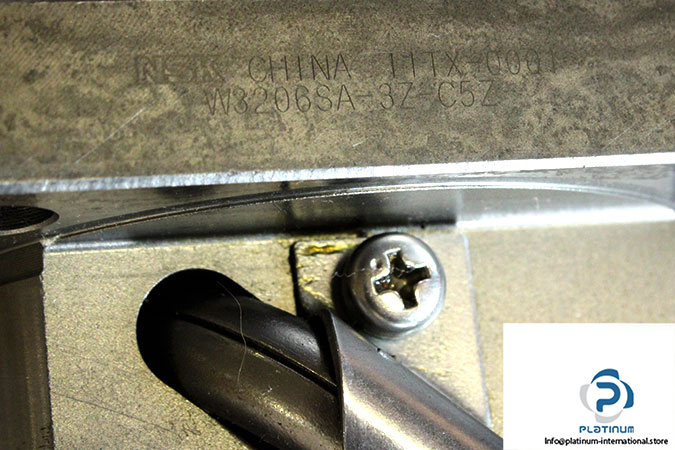

Model: W3206SA-3Z-C5Z10

Size: 32
Nominal Diameter d: 32 mm
Lead: 10 mm

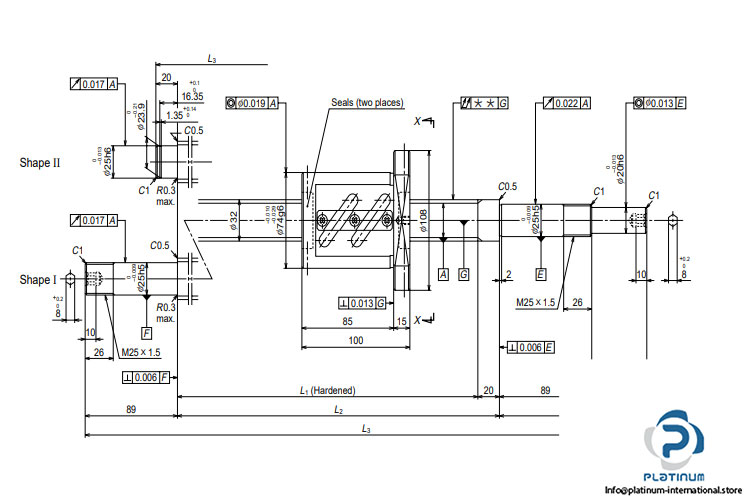

Dimensions:

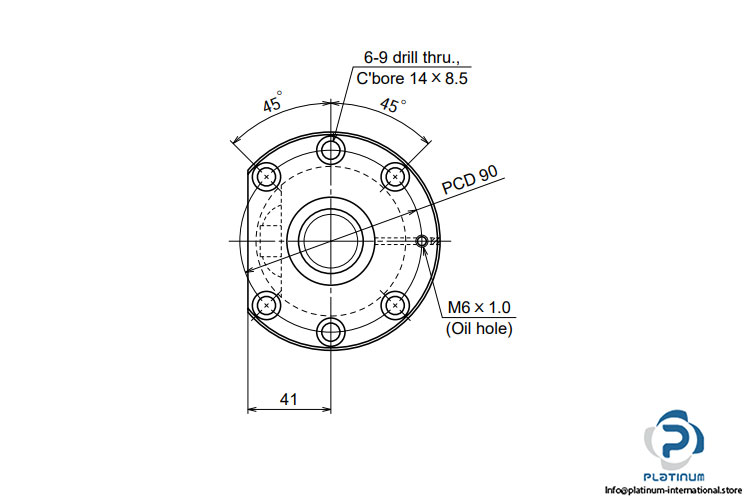

Flange diameter: 108 mm
Nut outer diameter: 74 mm
Nut length: 100 mm
Flange thickness: 15 mm
Effective turns of balls: 2.5 x 1
Ball diameter: 6.35 mm

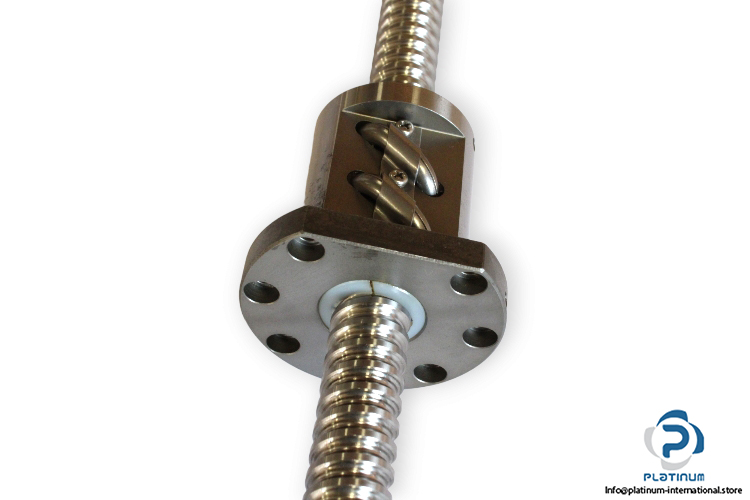

Ball recirculation: Return tube
Preload Type: Z; Offset lead
Accuracy Grade Code: C5
Axial Clearance Code: Z; No Axial Clearance (preload)
Direction of Lead: Right-Hand Thread
Effective threaded length (in units of 100 mm): 06
Total screw length: 750 mm
Preload: 1960 N
Basic load rating:
Dynamic C_a: 25500 N
Static C_0a: 54000 N
