Bearings Screw & Ball Screws

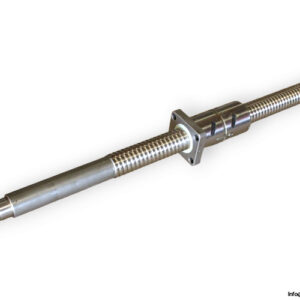

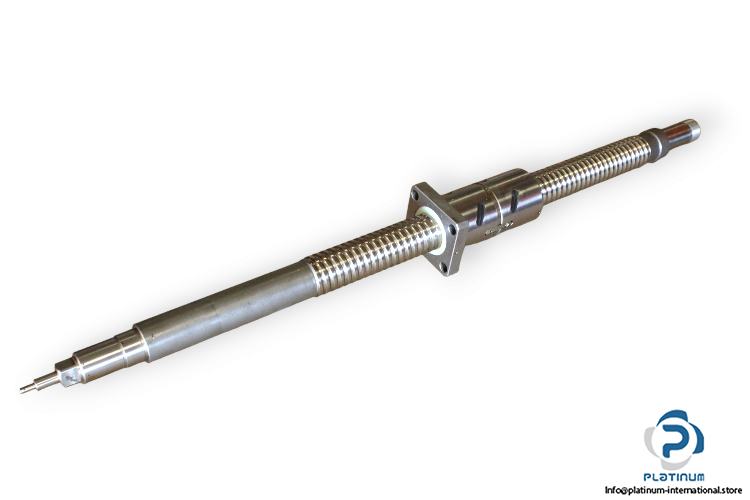

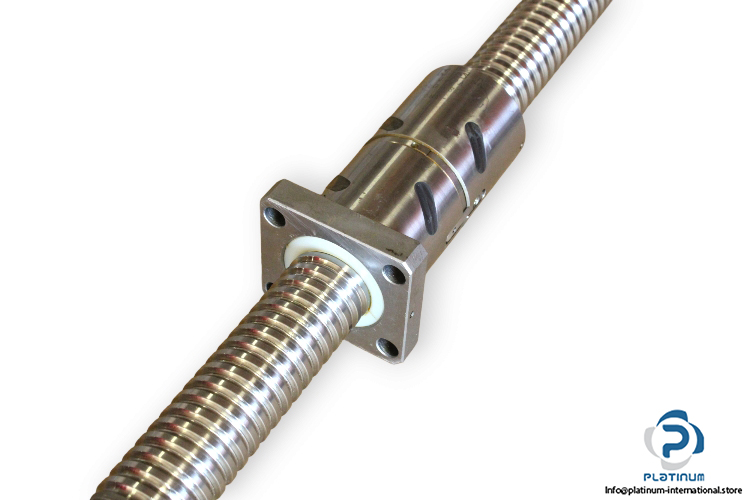

NSK W4004G-8DY-UPZ Ball Screw

Name: NSK W4004G-8DY-UPZ BALL SCREW
SKU: 1008073
Availability: LimitedAvailability

Used

In stock2 unitsReady to ship

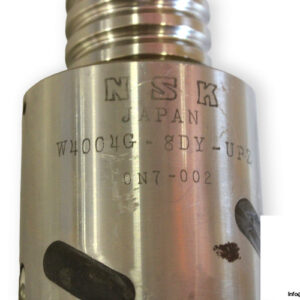

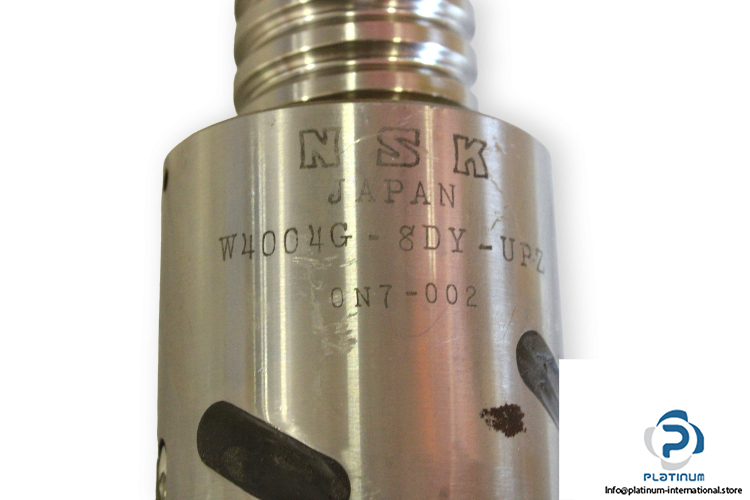

Manufacturer: NSK Type: Double nut ball screw with rectangular flange Model: W4004G-8DY-UPZ-0N7-002

Manufacturer

NSK

SKU

1008073

Category

Screw & Ball Screws

Condition

Used

40 Ball d0:Double flanged Linear mm Motion NSK Nuts screw

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NSK
Type: Double nut ball screw with rectangular flange
Model: W4004G-8DY-UPZ-0N7-002

Size: 40
Nominal Diameter d: 40 mm

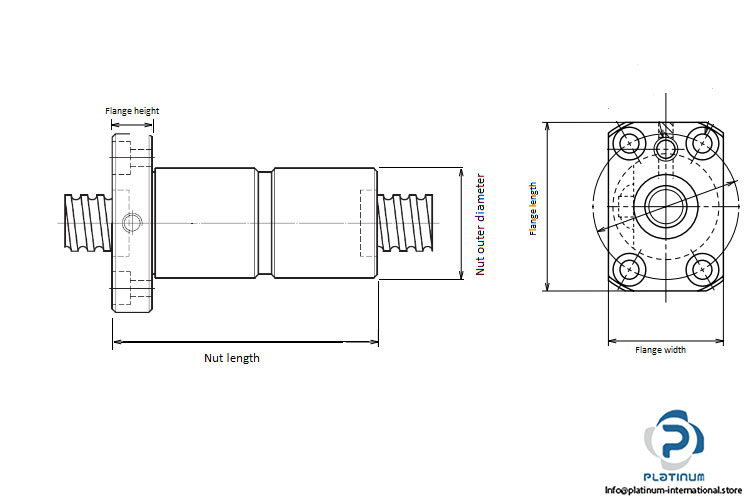

Dimensions:
Flange length: 72 mm
Flange width: 78 mm
Nut outer diameter: 62 mm
Nut length: 134 mm
Flange thickness: 15 mm
Lead: 8 mm
Preload Type: D; Double Nut
Recirculation Code: Y; Deflector
Axial Clearance Code: Z; No Axial Clearance (preload)
Direction of Lead: Right-Hand Thread
Effective threaded length (in units of 100 mm): 04
Total screw length: 860 mm

Specification	Value
Weight	8,5 kg
Condition	Used
Manufacturer	NSK
Size	40 x 8 R
Shelf No.	231221
Type of Product	Double nut ball screw with rectangular flange
Flange Length [mm]	72 mm
Flange Width [mm]	78 mm
Nut Outer Diameter [mm]	62 mm
Nut Length [mm]	134 mm
Flange Thickness [mm]	15 mm
