NTN M-UCF210D1 Four-Bolt Square Flange Unit
New
In stock1 unitReady to ship
Four-Bolt Flange Bearing Unit
NTN M-UCF210D1 square flange bearing unit with UC210 insert, 50 mm bore diameter, and four-bolt mounting for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

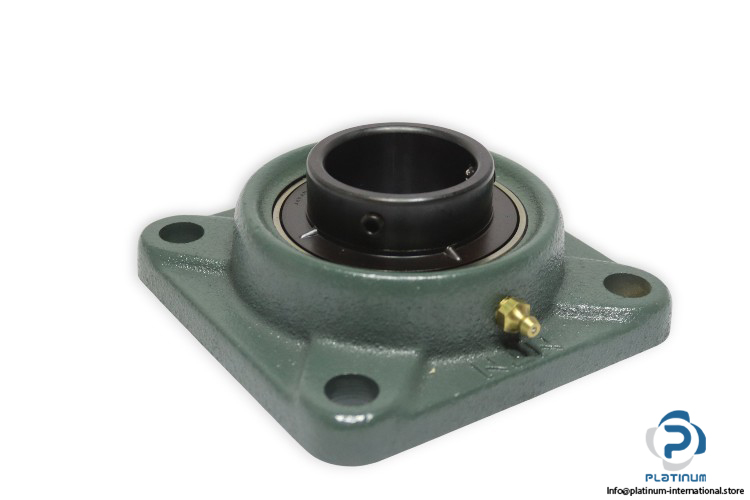

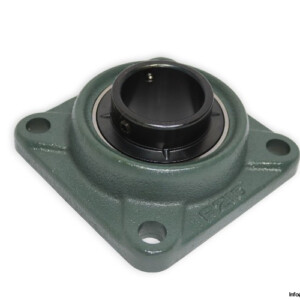

NTN M-UCF210D1 Four-Bolt Square Flange Unit
The NTN M-UCF210D1 is a four-bolt square flange bearing unit designed to provide stable shaft support and reliable operation in industrial mounting applications.

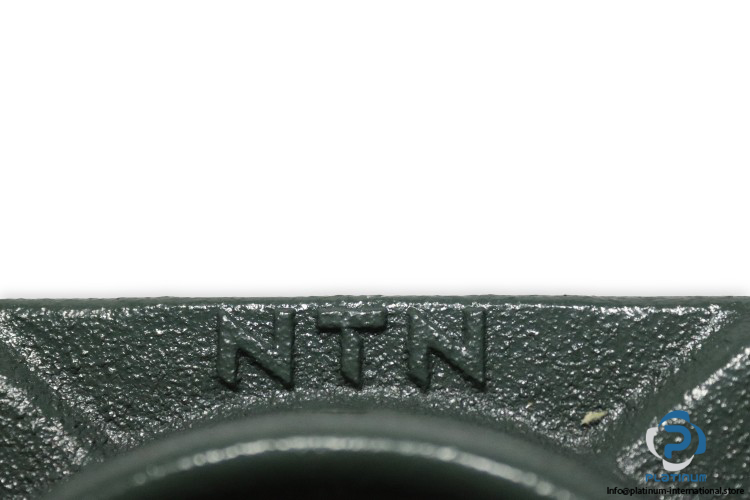

Manufacturer: NTN
Type: Four-Bolt Square Flange Unit
Model: M-UCF210D1

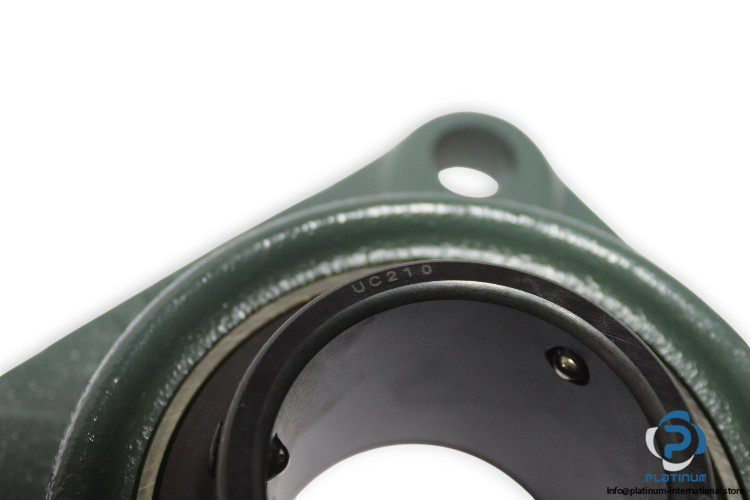

Bearing Number: UC210

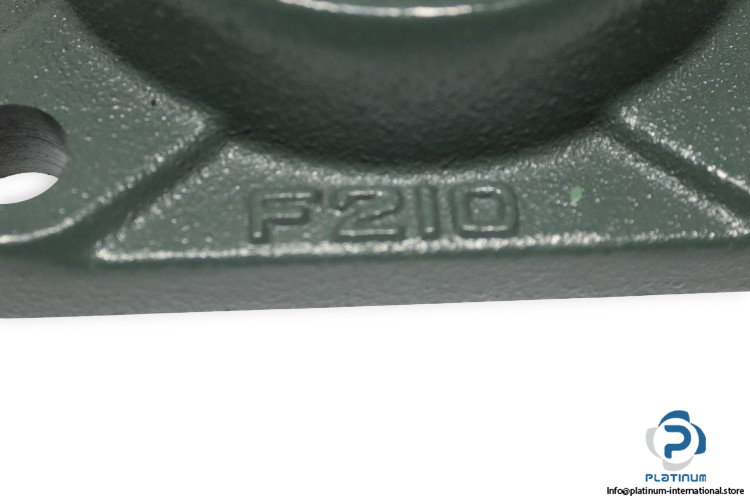

Housing Number: F210
| Bore Diameter (d) | 50 mm |
| Overall Length (L) | 143 mm |
| Width Of Housing (A) | 40 mm |
| Width Of Inner Ring (B) | 51.6 mm |
| Distance Between Attachment Bolts (J) | 111 mm |
| Diameter Of Attachment Bolt Hole (N) | 16 mm |
| Overall Unit Width (A0) | 54.6 mm |
| Bolt Size | M14 |
| Locking Device | Set Screw |
| Mounting | Four-Bolt |
