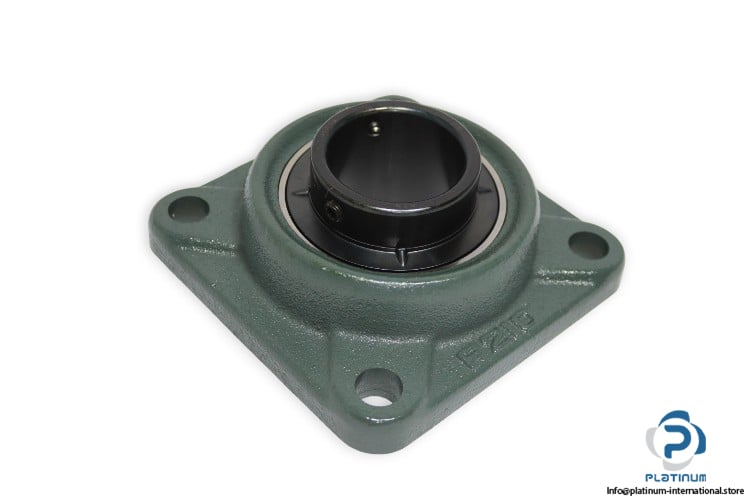

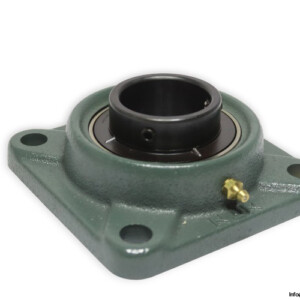

NTN M-UCF210D1 Four Bolt Square Flanged Unit
The NTN M-UCF210D1 is a four-bolt square flanged bearing unit designed for secure shaft support and stable operation in industrial applications. It combines a UC210 insert bearing with an F210 cast iron housing, providing durability, high load capacity, and reliable rotational performance.

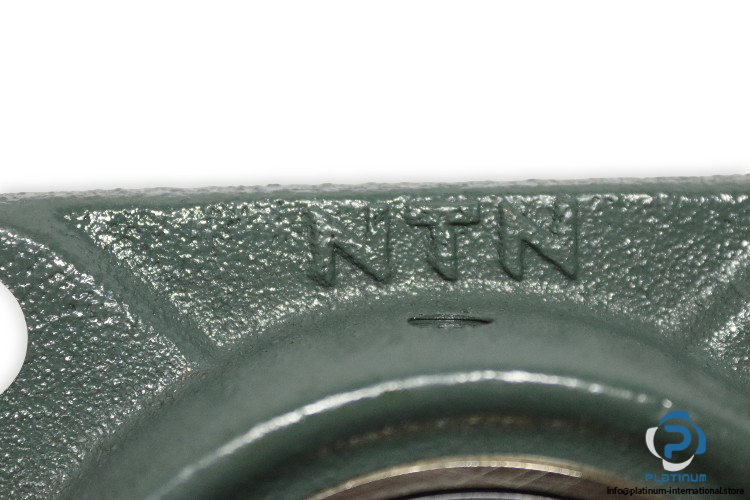

Manufacturer: NTN
Type: Four Bolt Square Flanged Unit
Model: M-UCF210D1

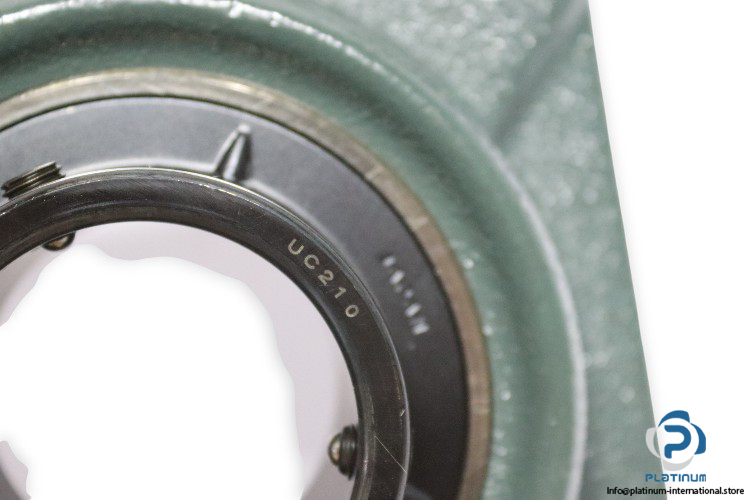

Bearing Number: UC210

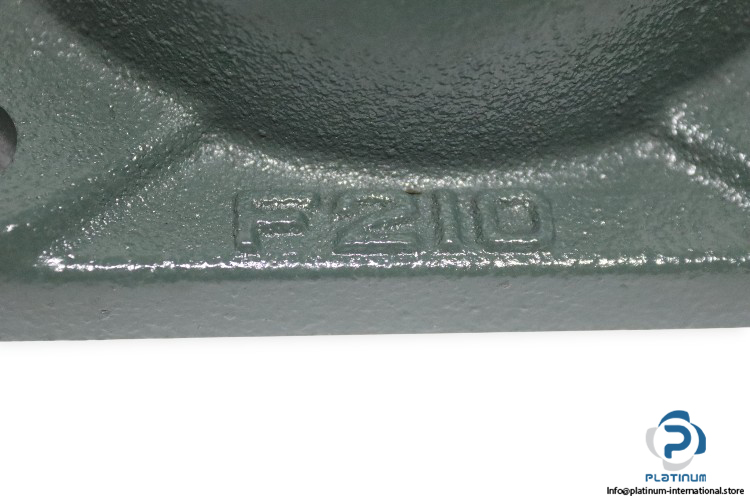

Housing Number: F210
| Bore Diameter (d) | 50 mm |
| Overall Length (L) | 143 mm |
| Overall Height (H2) | 52 mm |
| Width of Inner Ring (B) | 51.60 mm |
| Distance Between Attachment Bolts (J) | 111 mm |
| Attachment Bolt Hole Diameter (N) | 16 mm |
| Dynamic Load Rating (Cr) | 35,000 N |
| Static Load Rating (C0r) | 23,200 N |
| Maximum Rotational Speed | 3,100 RPM |
| Mounting Type | Four-Bolt Flange |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
