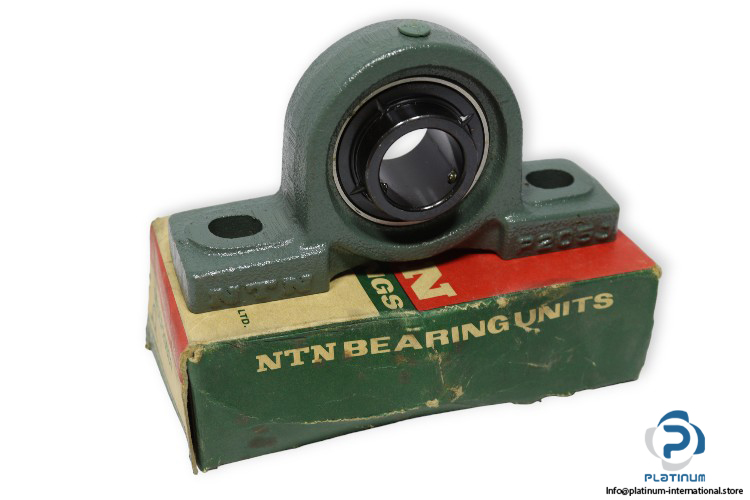

NTN M-UCP205D1 Pillow Block Ball Bearing Unit

Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP205D1

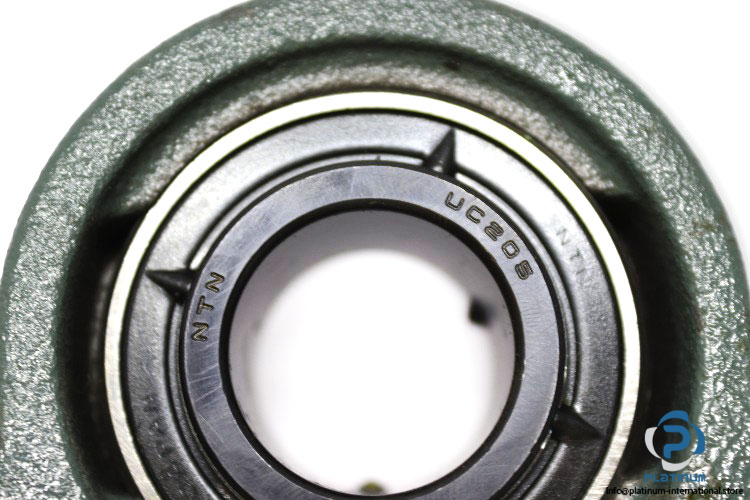

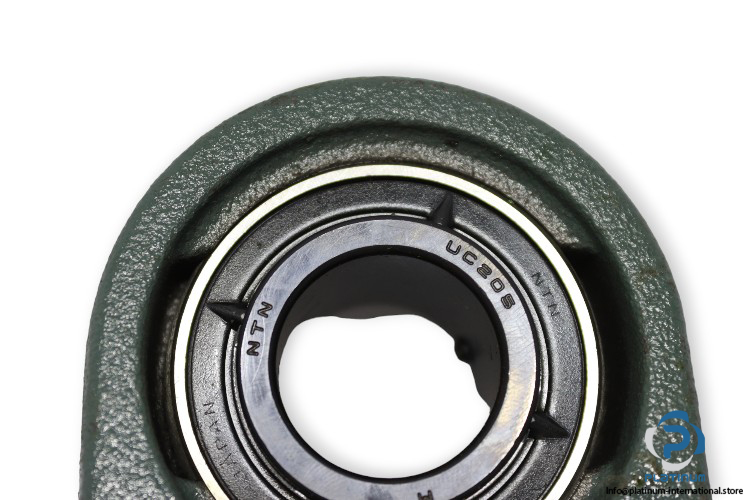

Bearing Number: UC205

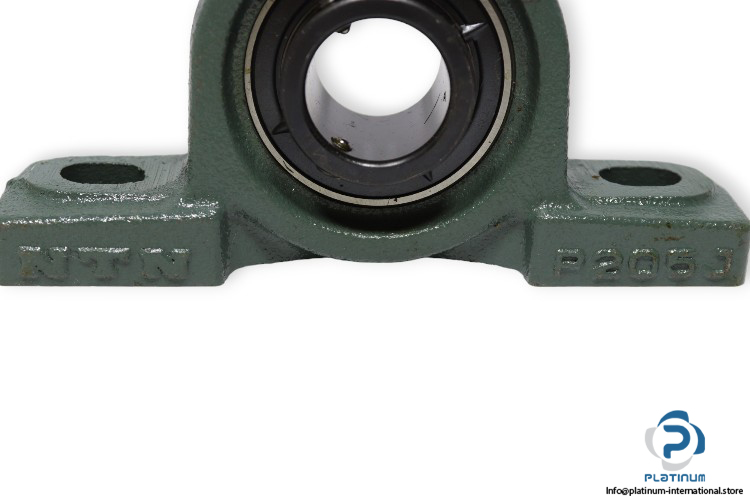

Housing Number: P205J

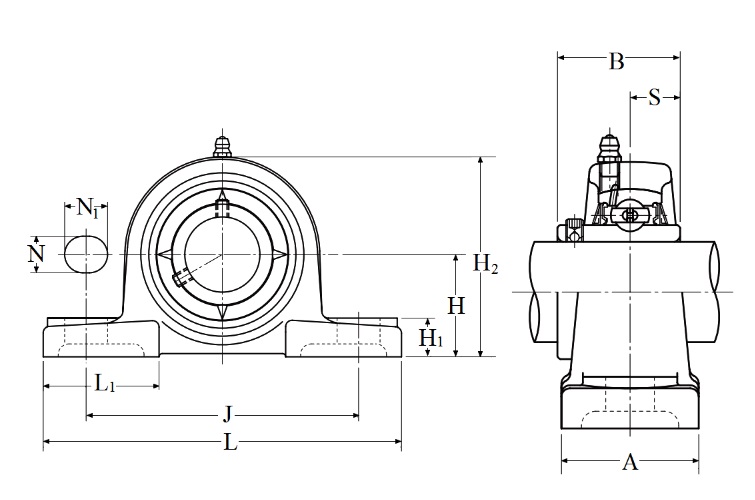

Dimensions
Bore Diameter d: 25 mm
Overall length L: 140 mm
Overall height H2: 71 mm
Base width A: 38 mm
Height of spherical seat center H: 36.5 mm
Distance Between Attachment Bolts J: 105 mm
Diameter of attachment bolt hole N: 13 mm
Length of attachment bolt hole N1: 16 mm
Width of Inner Ring B: 34.1 mm
Foot height H1: 15 mm
Bore type: Cylindrical bore
Locking Device: Set Screw
