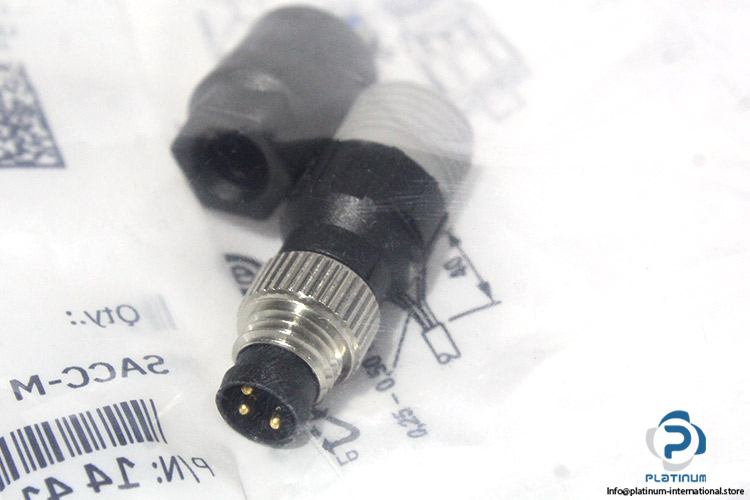

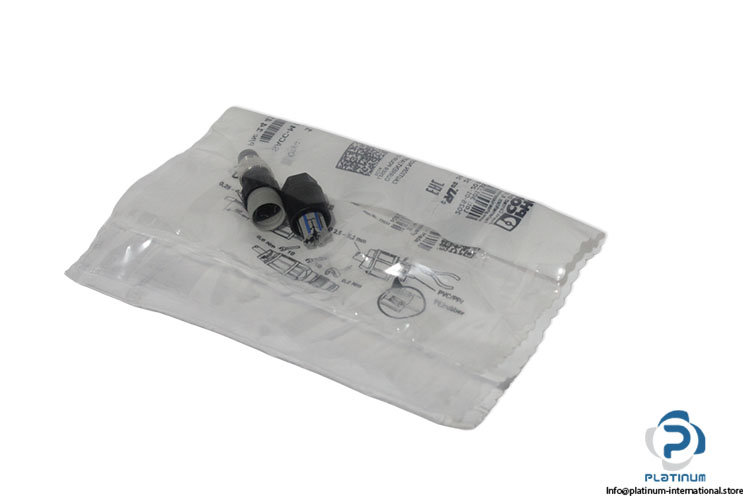

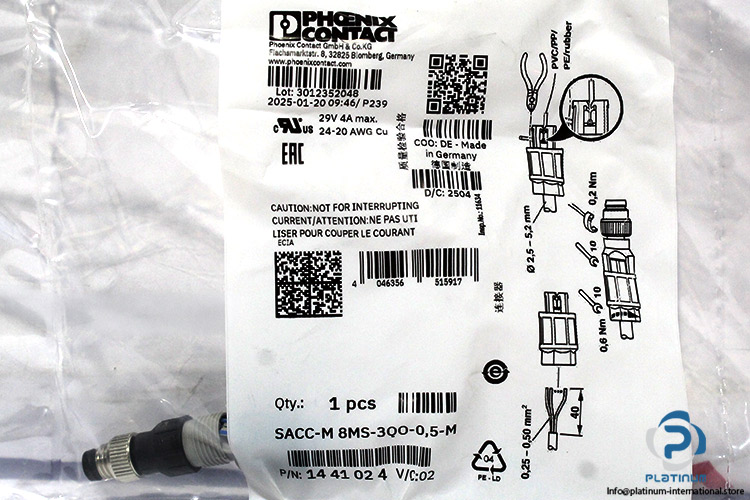

Phoenix Contact Sacc-M 8MS-3QO-0.5-M Connector
New
In stock26 unitsReady to ship
Circular Connector Phoenix Contact cable-side M8 circular connector with 3 positions, straight plug design and insulation displacement connection for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 14 41 02 4 (1441024) |
| Lot No. | 3012352048 |
| Rated surge voltage | 0.8 kV |
| Nominal voltage UN | 29 V |
| Nominal current IN | 4 A |
| No. of positions | 3 |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Degree of pollution | 3 |
| Length | 43.4 mm |
| Diameter housing | 12.5 mm |
| Seal material | NBR |
| Contact material | CuSn |
| Connection method | Insulation displacement connection |
| Head design | Plug |
| Cross section | 24-20 AWG |
| Head thread type | M8 |
| Ambient temperature | -25 °C ... 80 °C |
| Certificate | cURus, EAC |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098338 |
| Weight | 0,01 |
