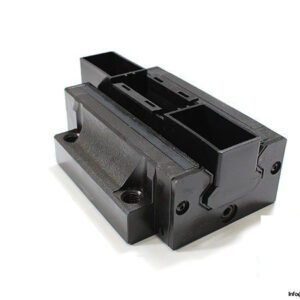

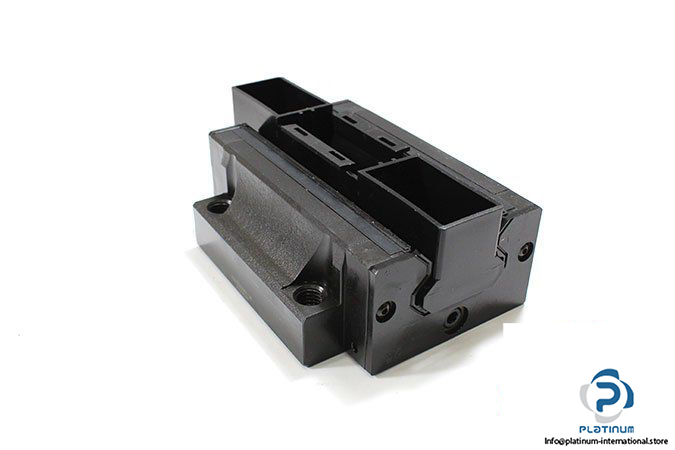

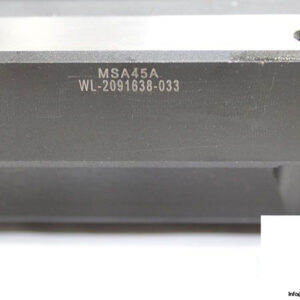

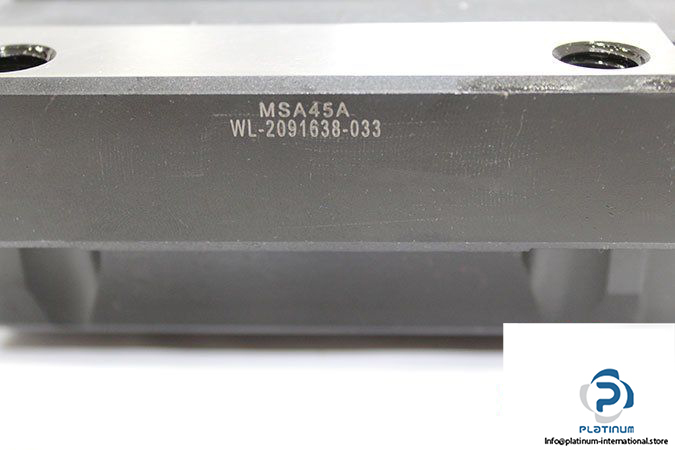

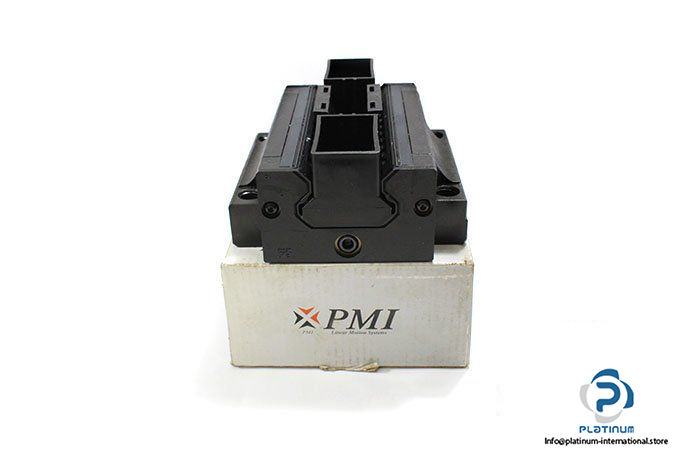

PMI MSA45A Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Model: MSA 45 ASSF0N

Size: 45 mm

Block Type: Flange

Load Type: Heavy Load

Preload: F0

Accuracy Grade: N

Basic Load Ratings:

Dynamic C: 83.8 kN

Static C₀: 117.9 kN

Static Moment Rating About:

X axis M_R: 2.57 kN-m

Y axis M_Y: 1.81 kN-m

Z axis M_P: 1.81 kN-m

Dimensions:

Height system H: 60 mm

Width carriage W: 120 mm

Overall length carriage L: 137.7 mm

B: 100 mm

C: 80 mm

Weight: 3.19 kg
