Pneumax 1300.80.50.01 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
PNEUMAX ISO Cylinder 1300.80.50.01 designed for reliable pneumatic motion control with compressed air. Features include an 80 mm bore diameter, 50 mm stroke, G 3/8 pneumatic connection, and a maximum pressure of 10 bar. Ideal for industrial applications.1300.80.50.013/85080ActingAirboreComponentsCompressedConnectiCylinderdiameterDoubleGIndustrialISOmmPneumaticPneumaxSquareStrokeSystems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

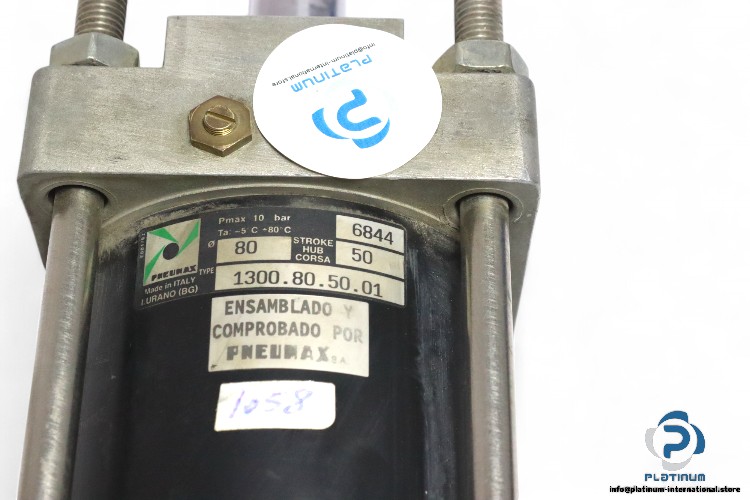

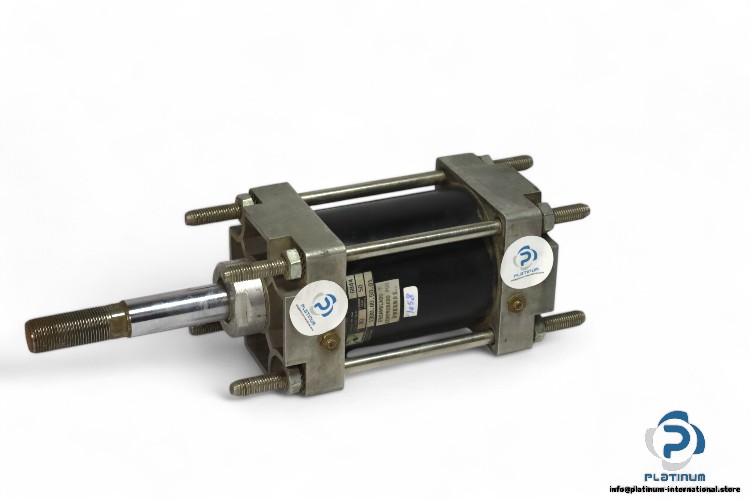

PNEUMAX ISO Cylinder 1300.80.50.01
The PNEUMAX ISO Cylinder 1300.80.50.01 is designed for high-performance pneumatic applications, offering reliable and efficient motion control with compressed air. With robust construction and precise dimensions, this cylinder is ideal for industrial systems that require consistent performance in demanding environments.
Manufacturer: PNEUMAX
Model: 1300805001
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 50 mm
- Bore x Stroke: 80 x 50 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 96 x 200 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
- Temperature: -5 / 80 °C
