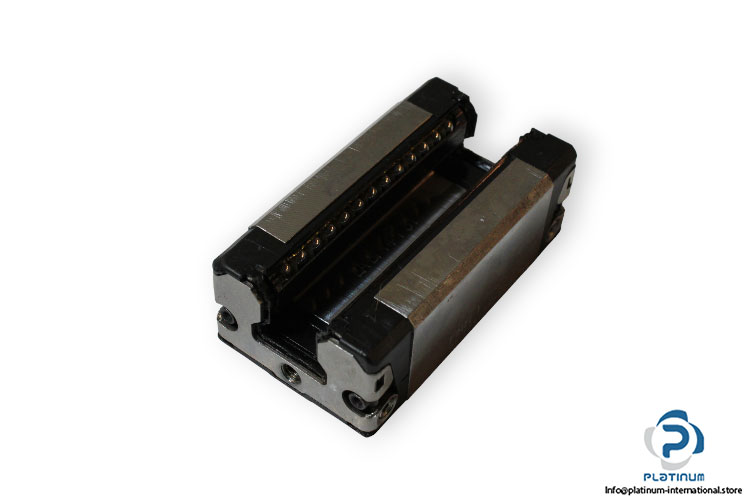

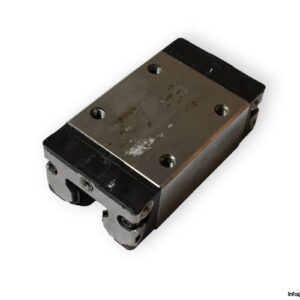

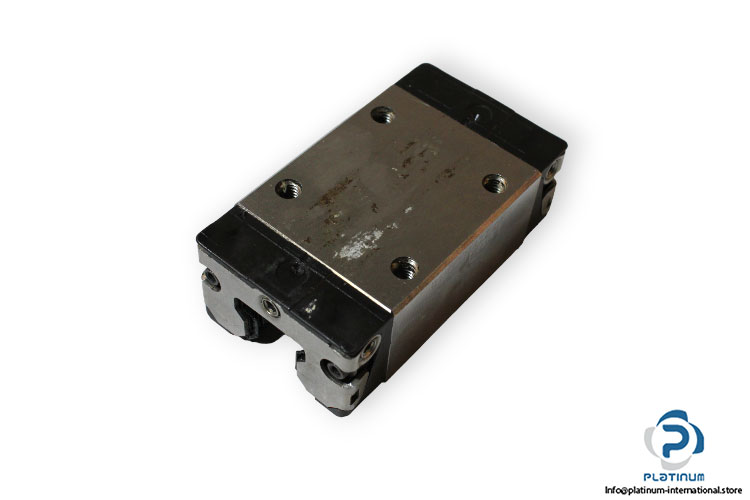

Rexroth R162221422 Ball Runner Block SNS

Manufacturer: REXROTH
Type: Ball Runner Block SNS

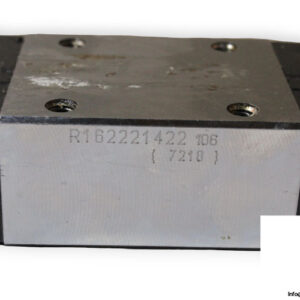

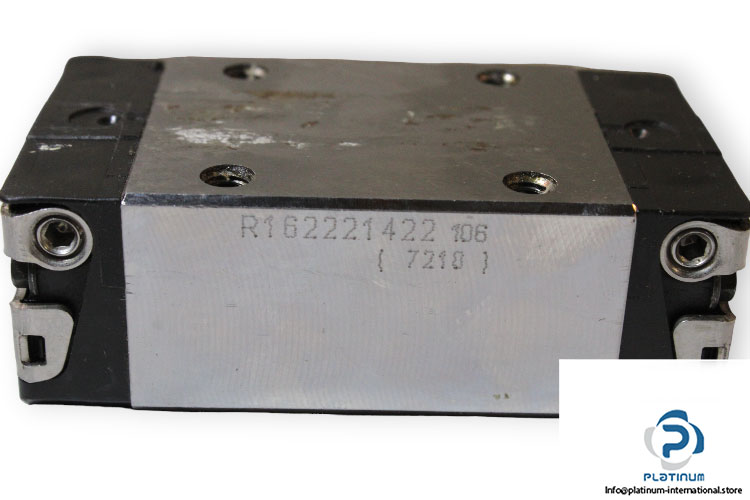

MNR: R1622 214 22

Size: 25 mm
Format: SNS – Slimline, normal, standard height
Material (profiled rail systems): Carbon steel
Seals: with ball chain
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 26700 N
Static Load Capacity C₀ : 32300 N
Dynamic Torsional Moment Load Capacity M_t:  380 Nm
Mt0: 460 Nm
Dynamic longitudinal moment load capacity ML: 270 Nm
Static longitudinal moment load capacity ML0: 330 Nm
Accuracy Class: N – Normal
Preload Class: C1 – low preload

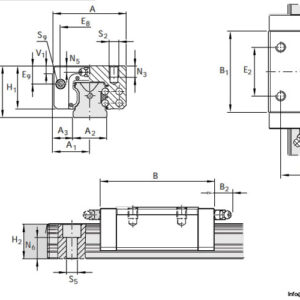

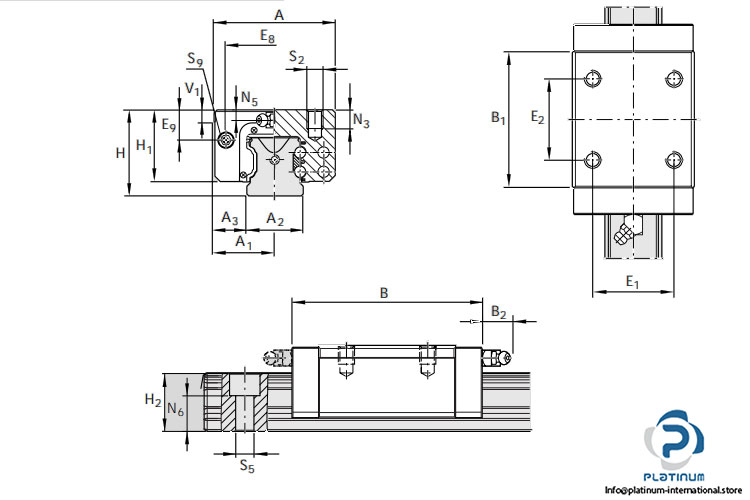

Dimensions
Width (A): 48 mm
Length (B): 86.2 mm
Height of system(H): 36 mm
Height of block (H₁): 29.9 mm
E1: 35 mm
E2: 35 mm
Admissible Operating Temperature: -10 °C … +80 °C
