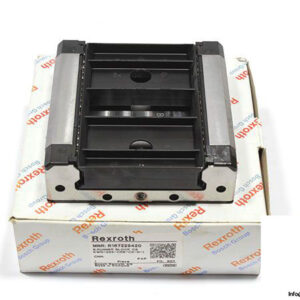

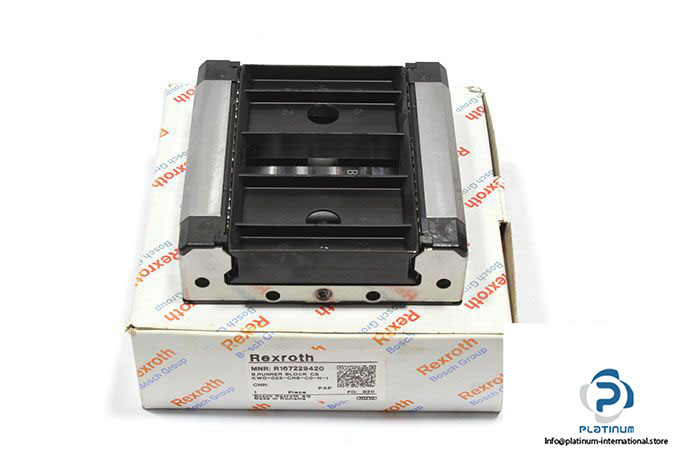

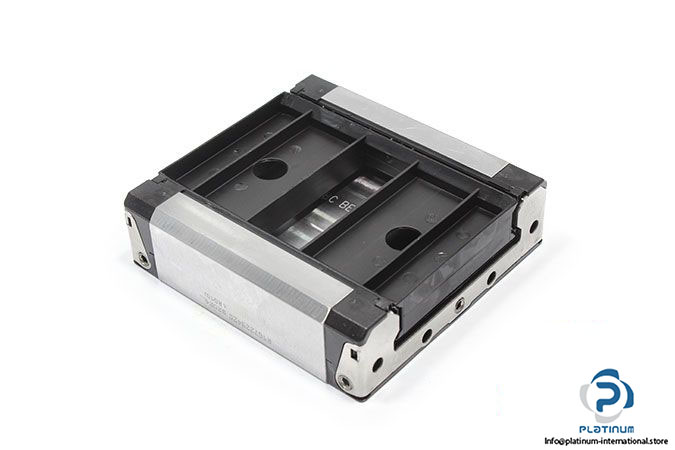

Rexroth R167229420 Ball Runner Block CNS

Manufacturer: REXROTH
Type: Ball Runner Block CNS

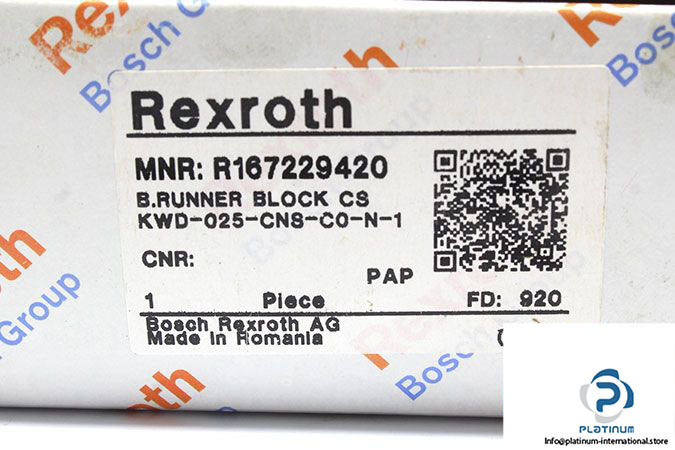

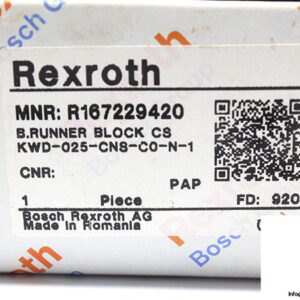

MNR: R1672 294 20

Size: 25/70 mm
Format: CNS – compact, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36200 N
Static Load Capacity C₀ : 50200 N
Dynamic Torsional Moment Load Capacity M_t:  1350 Nm
Mt0: 1870 Nm
Dynamic longitudinal moment load capacity ML: 490 Nm
Static longitudinal moment load capacity ML0: 680 Nm
Accuracy Class: N – normal
Preload Class: C0 – Without preload

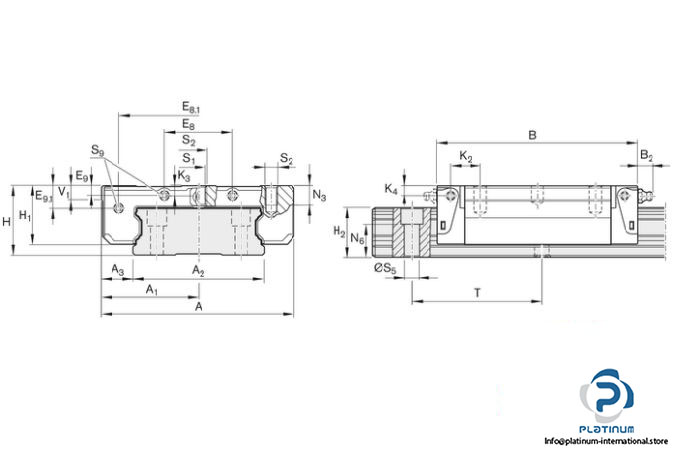

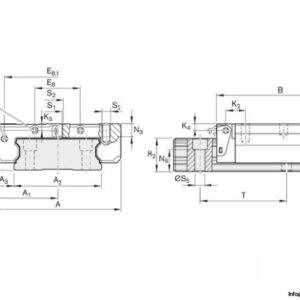

Dimensions
Width (A): 100 mm
Length (B): 104.7 mm
Height of system(H): 35 mm
Height of block (H₁): 29.75 mm
E1: 76 mm
E2: 50 mm
Admissible Operating Temperature: -10 °C … +80 °C
