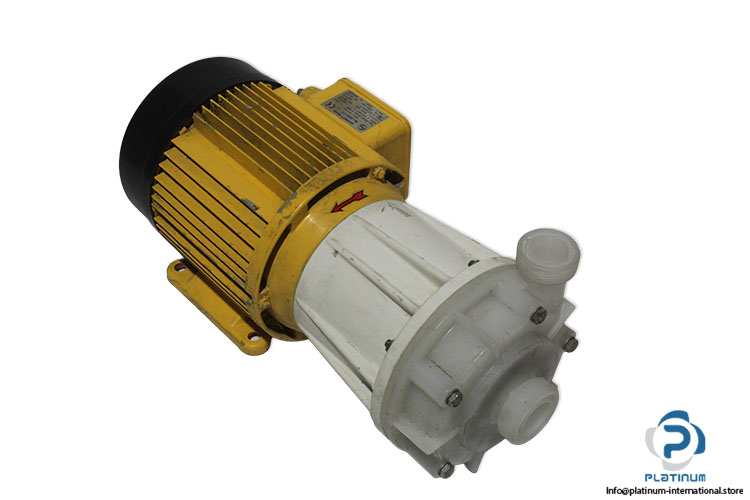

Schmitt MPN 150 Pump
Used
In stock4 unitsReady to ship
Magnetic Drive Pump SCHMITT / EMG MPN150 magnetic drive pump with PP construction, offering up to 35 m³/h flow and 32 m discharge head for reliable industrial fluid handling.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | MPN |

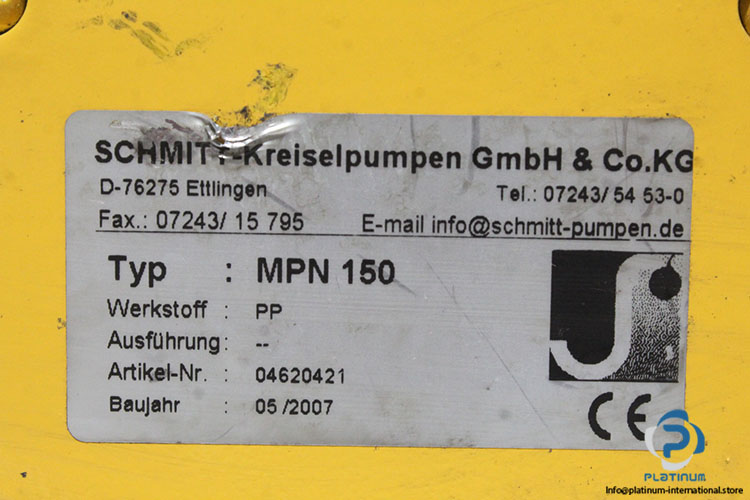

| Artikel-Nr. | 04620421 |
| Size | 150 |
| Material | PP |
| Maximum Flow Rate | 35 m³/h |
| Maximum Discharge Head | 32 m |
| construction Type | Hermetically sealed |

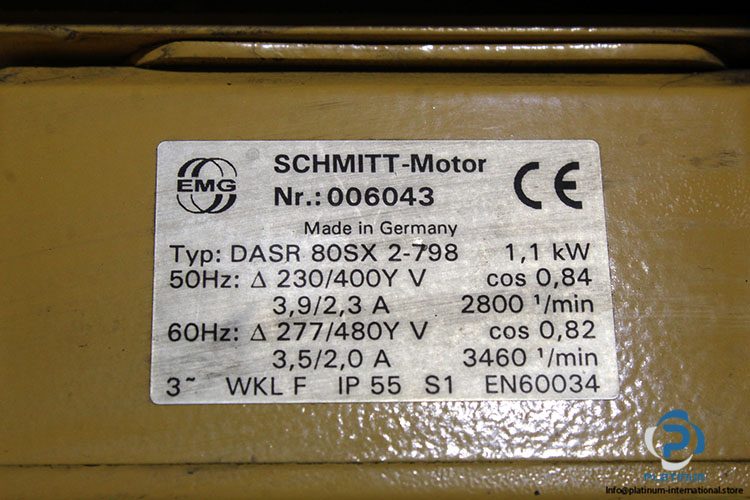

| Attached Motor | SCHMITT DASR 80SX 2-798 Motor |
| Part Nr . | 006043 |
| Standards | EN60034 |
| Voltage At Frequency 50 Hz | 230V Delta / 400V Wye |
| Current At Frequency 50 Hz | 3,9/2,3 A |
| Power Factor At Frequency 50 Hz | 0.84 |
| Rotational Speed At Frequency 50 Hz | 2800 RPM (1/min) |
| Voltage At Frequency 60 Hz | 277V Delta/ 480V Wye (Y) |
| Current At Frequency 60 Hz | 3,5/2,0 |
| Power Factor At Frequency 60 Hz | 0.82 |
| Rotational Speed At Frequency 60 Hz | 3460 RPM (1/min) |
| Protection class | ip55 |
| Duty | s1 |
| Connection | terminal box |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100581 |
| Weight | 12,8 |
