Schmitt MPN 150 Pump
Used
In stock1 unitReady to ship

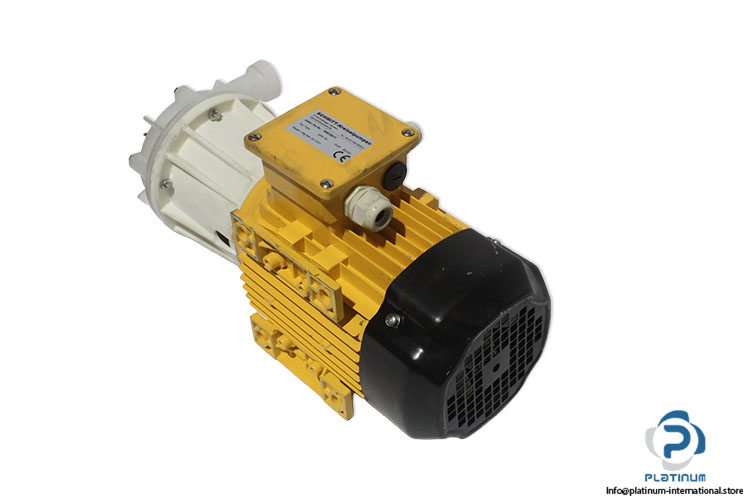

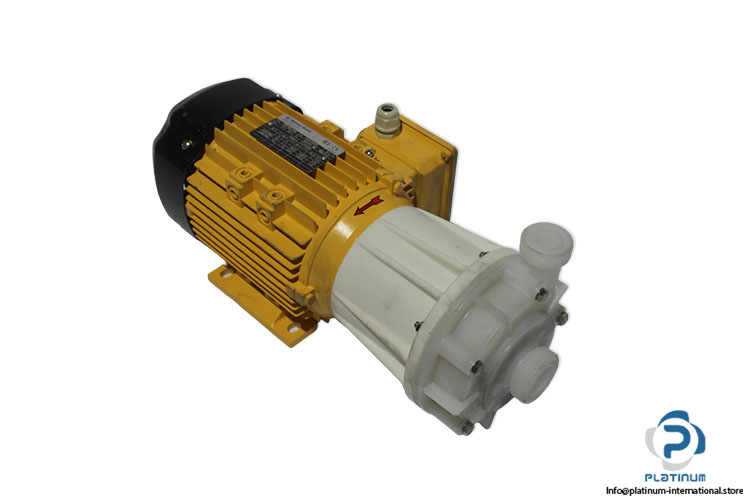

Magnetic Drive Pump SCHMITT / EMG MPN150 magnetic drive pump with PVDF construction, offering up to 35 m³/h flow and 32 m discharge head for reliable industrial fluid handling.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | MPN |
| Artikel-Nr. | 04610411 |
| Size | 150 |
| Material | PVDF |
| Maximum Flow Rate | 35 m³/h |
| Maximum Discharge Head | 32 m |
| construction Type | Magnetic Drive |

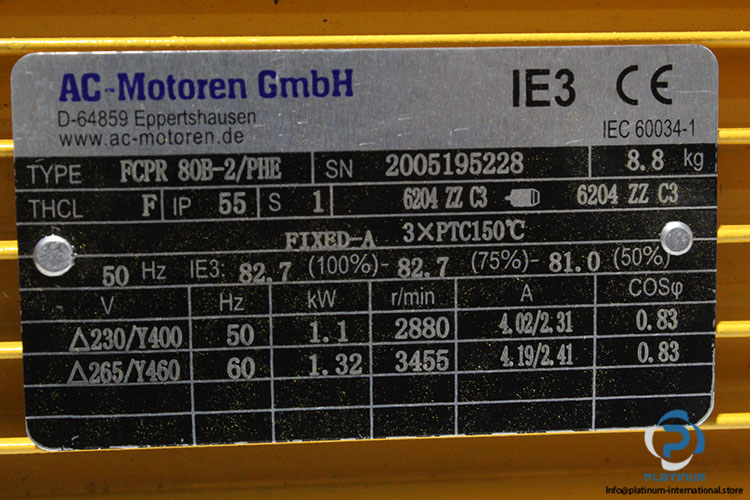

| Attached Motor | AC-Motoren FCPR 80B-2/PHE Motor |
| SN | 2005195228 |
| Voltage At Frequency 50 Hz | 230V Delta / 400V Wye |
| Current At Frequency 50 Hz | 4.02/2,31 A |
| Power Factor At Frequency 50 Hz | 0.83 |
| Rated Power (kw)At Frequency 50 Hz | 1.1 |
| Rotational Speed At Frequency 50 Hz | 2800 RPM (1/min) |
| Voltage At Frequency 60 Hz | 265 V Delta/ 460V Wye (Y) |
| Current At Frequency 60 Hz | 4.19/2.41 |
| Power Factor At Frequency 60 Hz | 0.83 |
| Rated Power (kw)At Frequency 60 Hz | 1.32 |
| Rotational Speed At Frequency 60 Hz | 3455 RPM (1/min) |
| Protection class | ip55 |
| Duty | s1 |
| Connection | terminal box |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100599 |
| Weight | 14,5 |
