Schmitt MPN 190 Pump
Used
In stock1 unitReady to ship

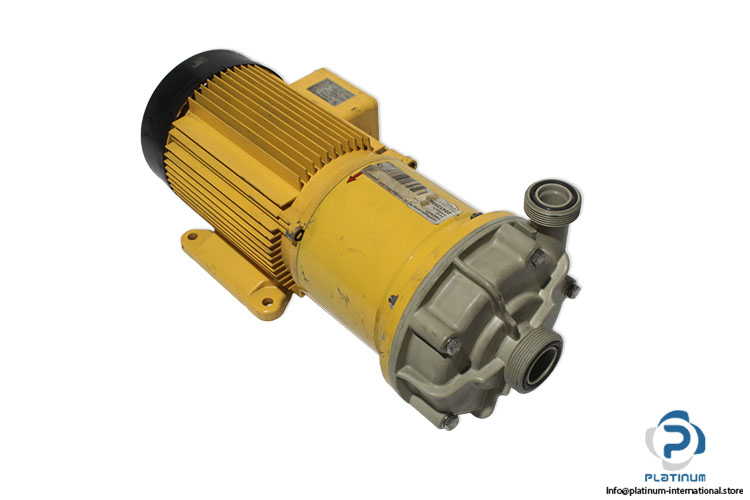

Magnetic Drive Pump SCHMITT / EMG MPN190 magnetic drive pump with PP construction, offering up to 35 m³/h flow and 32 m discharge head for reliable industrial fluid handling.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

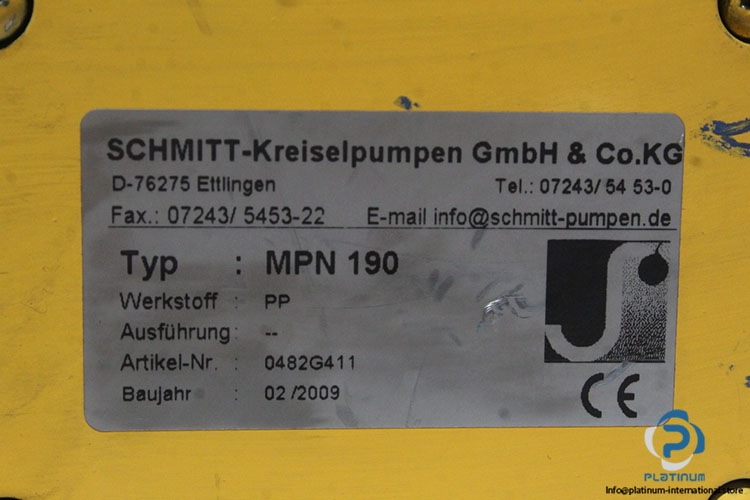

| Series | MPN |
| Artikel-Nr. | 0482G411 |
| Size | 190 |
| Material | PP |
| Maximum Flow Rate | 35 m³/h |
| Maximum Discharge Head | 32 m |
| construction Type | Hermetically sealed |

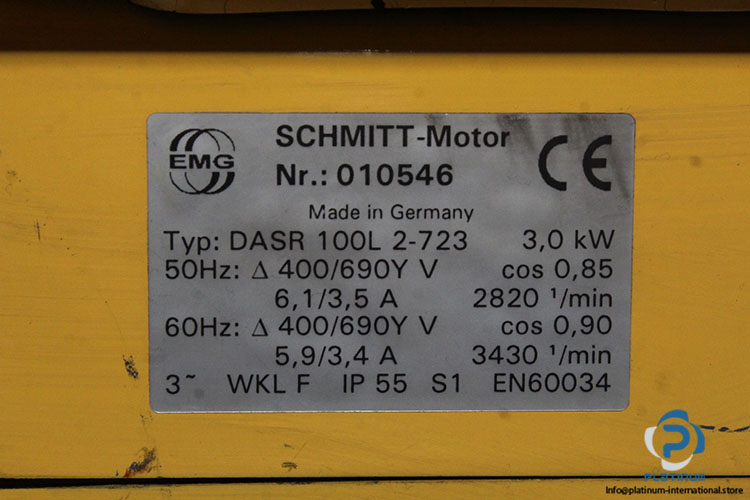

| Attached Motor | SCHMITT DASR 100L 2-723 Motor |
| Standards | EN60034 |
| Voltage At Frequency 50 Hz | 400 V Delta / 690 V Wye |
| Current At Frequency 50 Hz | 6,1/3,5 A |
| Power Factor At Frequency 50 Hz | 0.85 |
| Rotational Speed At Frequency 50 Hz | 2820 RPM (1/min) |
| Voltage At Frequency 60 Hz | 400 Delta /690 Wye (Y) |
| Current At Frequency 60 Hz | 5,9/3,4 |
| Power Factor At Frequency 60 Hz | 0.90 |
| Rotational Speed At Frequency 60 Hz | 3430 RPM (1/min) |
| Rated power | 3 kw |
| Protection class | ip55 |
| Duty | s1 |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100600 |
| Weight | 24,8 |
