Schmitt MPN 150 Pump
Used
In stock1 unitReady to ship

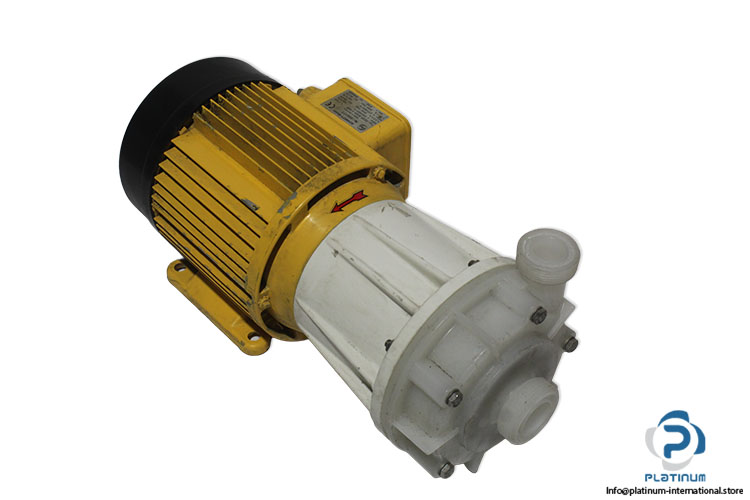

Magnetic Drive Pump SCHMITT / EMG MPN150 magnetic drive pump with PVDF construction, offering up to 35 m³/h flow and 32 m discharge head for reliable industrial fluid handling.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

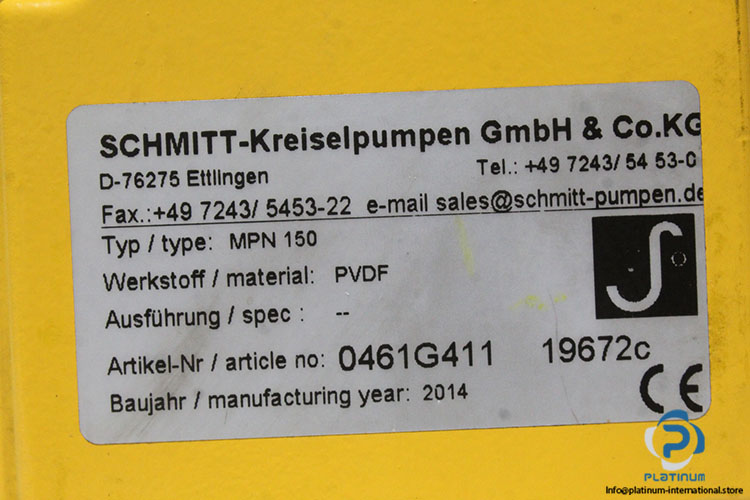

| Series | MPN |
| Artikel-Nr. | 0461G411 19672c |
| Size | 150 |
| Material | PVDF |
| Maximum Flow Rate | 35 m³/h |
| Maximum Discharge Head | 32 m |
| construction Type | Magnetic Drive |

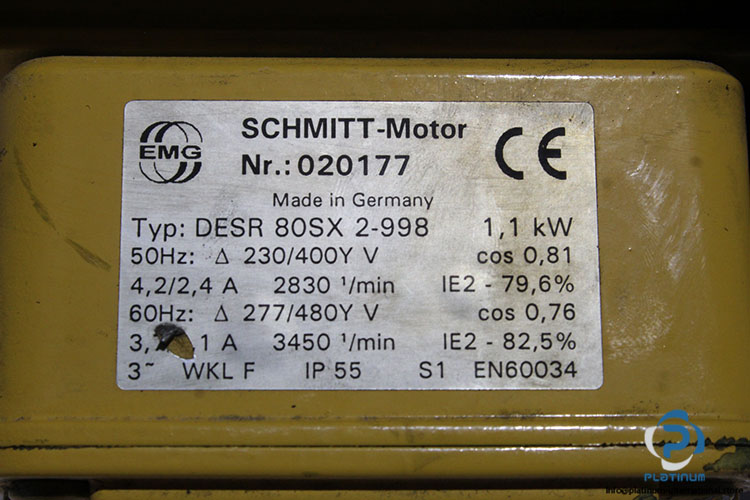

| Attached Motor | SCHMITT DESR 80SX 2-998 Motor |
| Part Nr . | 020177 |
| Standards | EN60034 |
| Voltage At Frequency 50 Hz | 230V Delta / 400V Wye |
| Current At Frequency 50 Hz | 4,2/2,4 A |
| Power Factor At Frequency 50 Hz | 0.81 |
| Rotational Speed At Frequency 50 Hz | 2830 RPM (1/min) |
| Efficiency At Frequency 50 Hz | 79.6% |
| Voltage At Frequency 60 Hz | 277V Delta/ 480V Wye (Y) |
| Current At Frequency 60 Hz | 3.7/2.1 |
| Power Factor At Frequency 60 Hz | 0.76 |
| Rotational Speed At Frequency 60 Hz | 3450 RPM (1/min) |
| Efficiency At Frequency 60 Hz | 82.5% |
| Protection class | ip55 |
| Duty | s1 |
| Connection | terminal box |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100582 |
| Weight | 13,3 |
