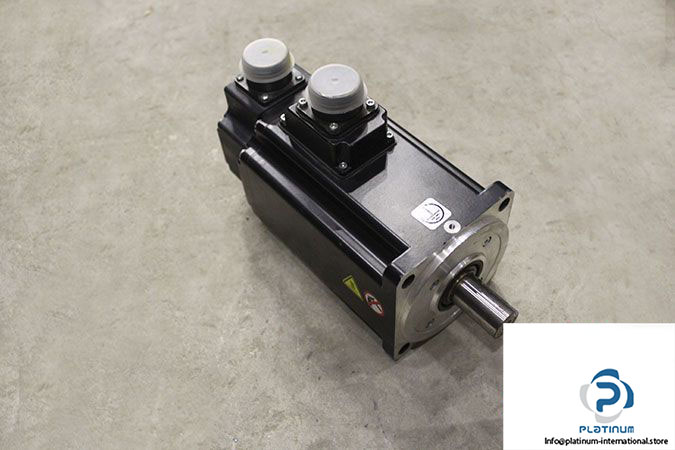

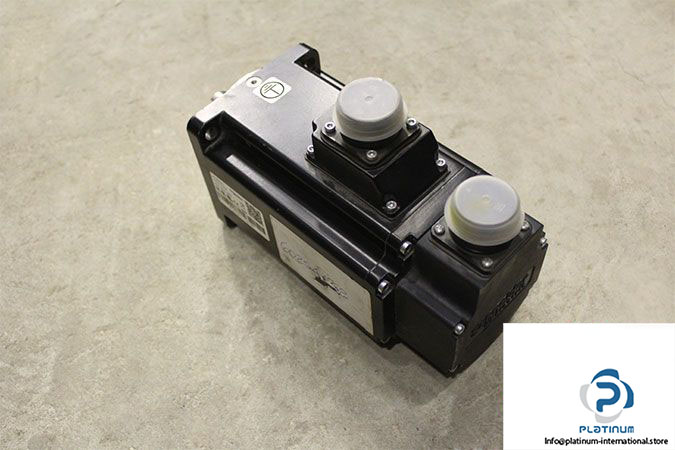

Schneider BCH2LH2033CA6C AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

Model: BCH2LH2033CA6C

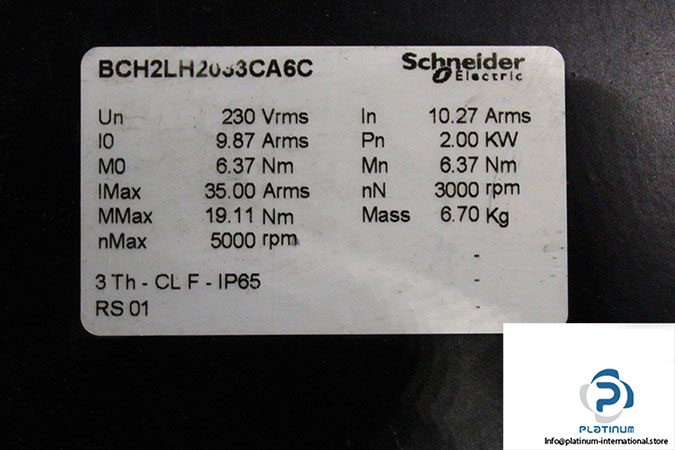

Stall Torque [Nm]: 6.37

Rated Torque [Nm]: 6.37

Max Torque [Nm]: 19.11

Stall Current [A]: 9.87

Rated Current [A]: 10.27

Max Current [A]: 35.0

Rated Voltage [V]: 230

Rated Power [kW]: 2.0

Rated Speed [rpm]: 3000

Max Speed [rpm]: 5000

Number of Poles: 6

Shaft End: Keyed

Flange Size [mm]: 100

Shaft Diameter [mm]: 22

Shaft Length [mm]: 45

Key Width [mm]: 8

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 6.7
