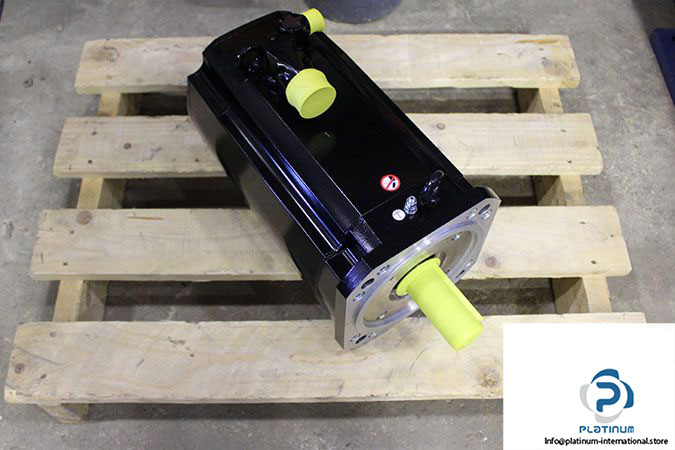

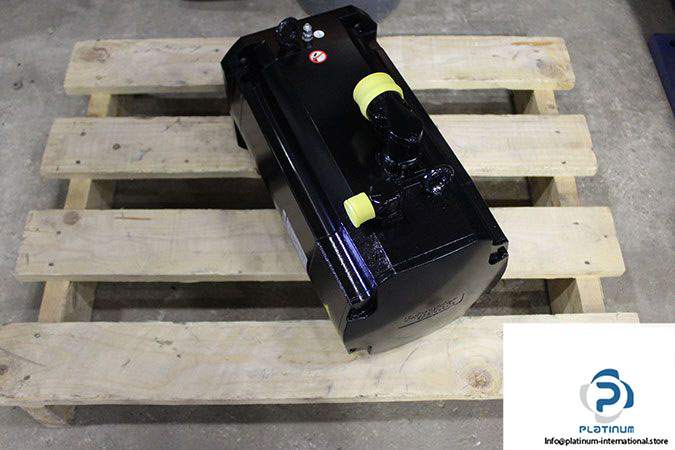

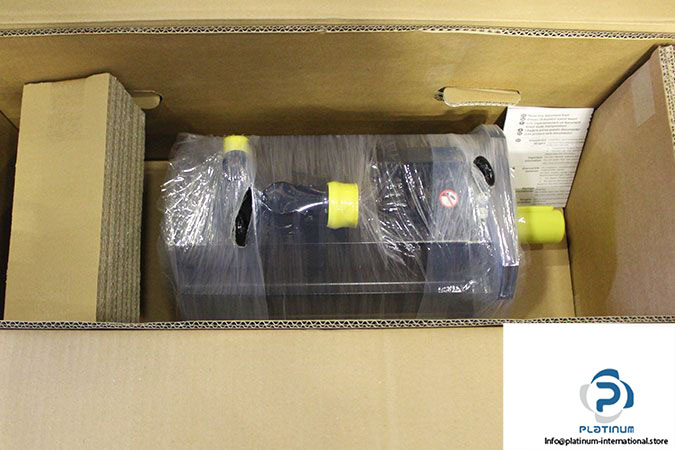

Schneider BMH2051P07F2A AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

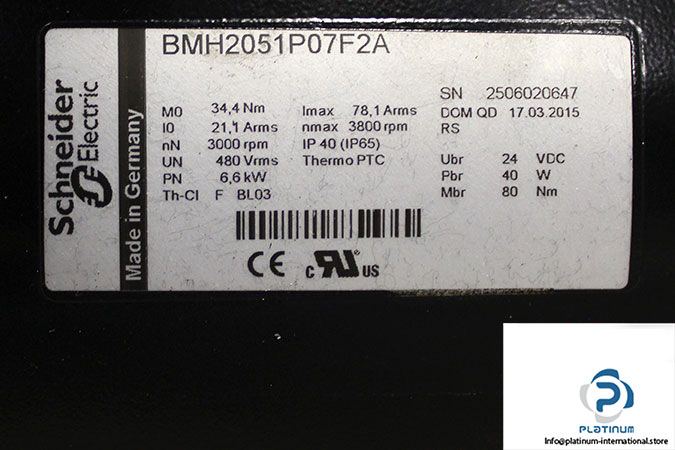

Model: BMH2051P07F2A

Stall Torque [Nm]: 34.4

Stall Current [A]: 21.1

Max Current [A]: 78.1

Rated Voltage [V]: 480

Rated Power [kW]: 6.6

Rated Speed [rpm]: 3000

Max Speed [rpm]: 3800

Brake Voltage [VDC]: 24

Brake Power [W]: 40

Brake Torque [Nm]: 80

Shaft End: Smooth Shaft

Number of Poles: 10

Flange Size [mm]: 205

Shaft Diameter [mm]: 38

Shaft Length [mm]: 80

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 40.5
