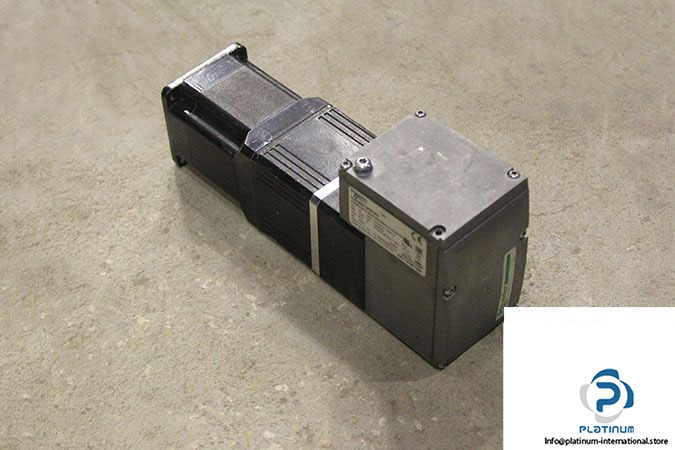

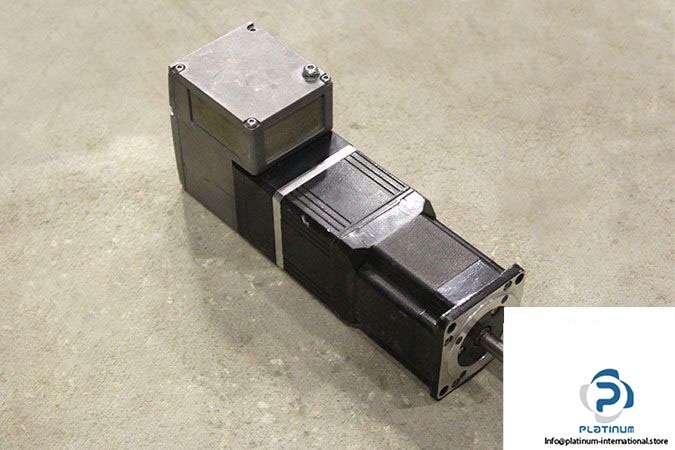

Schneider ILA2E572PB1F0 Integrated Drive ILA With Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Integrated Drive ILA with Servo Motors

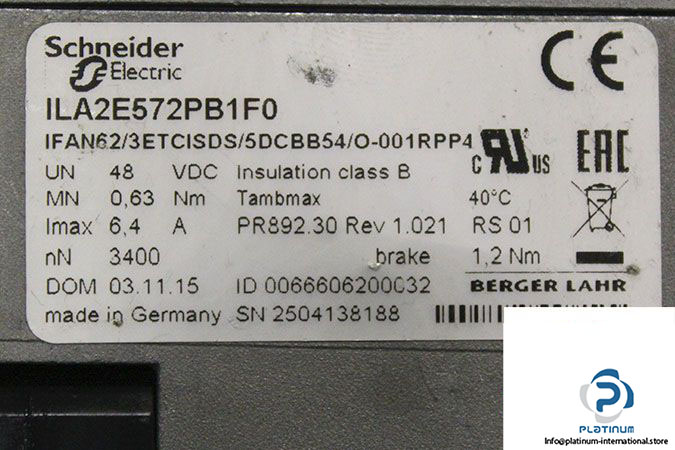

Model: ILA2E572PB1F0

Part No.: IFAN62/3ETCISDS/5DCBB54/O-001RPP4

Peak Stall Torque [Nm]: 1.62

Continuous Stall Torque [Nm]: 0.78

Nominal Torque [Nm]: 0.63

Max Current [A]: 6.4

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 4300

Ambient Temperature [°C]: 40

Number of Poles: 6

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Length [mm]: 209.3

Holding Torque [Nm]: 1.2

Protection Class [IP]: 54

Thermal Class: B

Weight [kg]: 1.83
