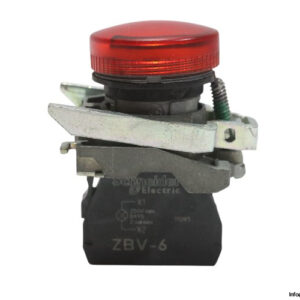

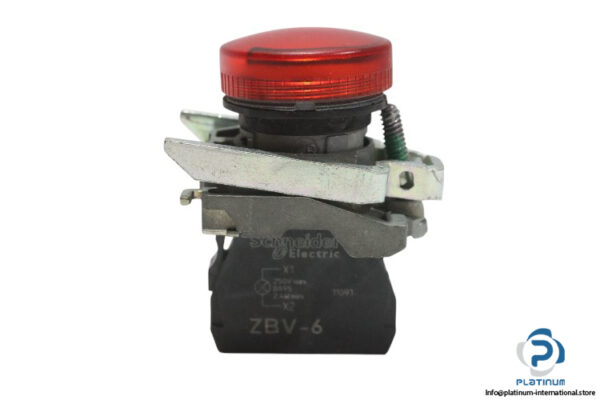

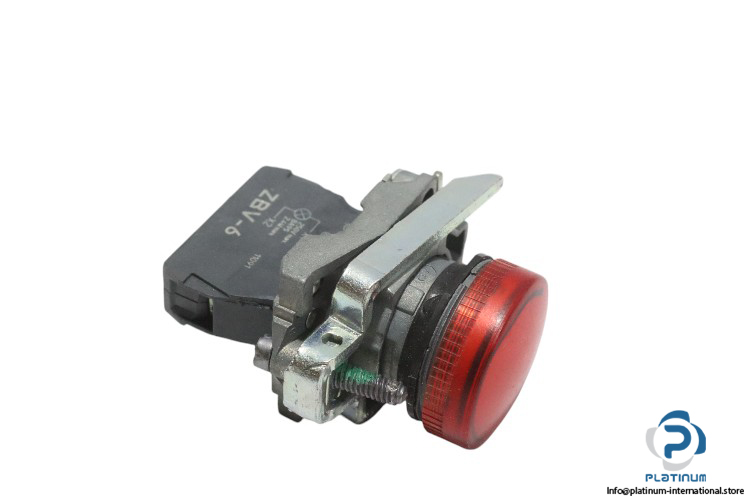

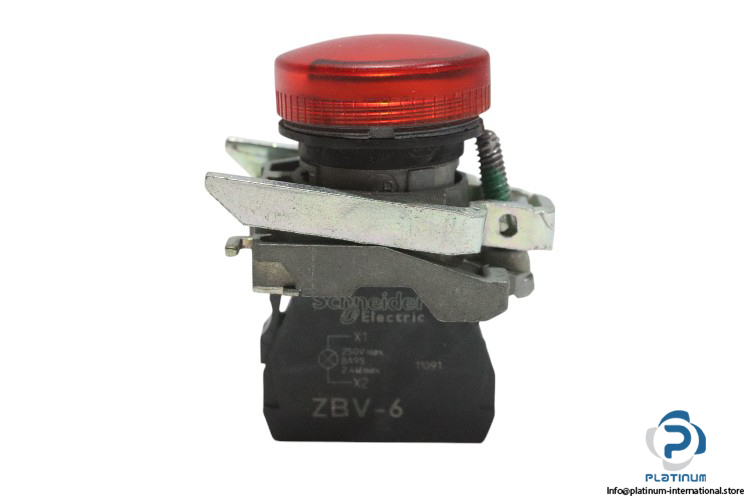

Schneider ZBV-6 Light Block FOR Head

Schneider ZBV-6 Light Block for 22 mm Head

The Schneider ZBV-6 is a high-quality light block designed for use with 22 mm pushbutton heads. It operates with a BA9s bulb base and supports a rated supply voltage of up to 250 V AC/DC. The unit features screw clamp terminals for secure connections and is intended for front mounting applications.

Manufacturer: Schneider

Type: Light Block for Head

Model: ZBV-6

Technical Data:

• Used for Head: 22 mm
• Rated Supply Voltage: 250 V
• Mounting of Block: Front mounting
• Tightening Torque: 7.08 / 10.6 lbf.in
• Connections “ Terminals:
  • Screw clamp terminals, ‰¤ 2 x 1.5 mm² with cable end (IEC 60947-1)
  • Screw clamp terminals, ‰¥ 1 x 0.22 mm² without cable end (IEC 60947-1)
