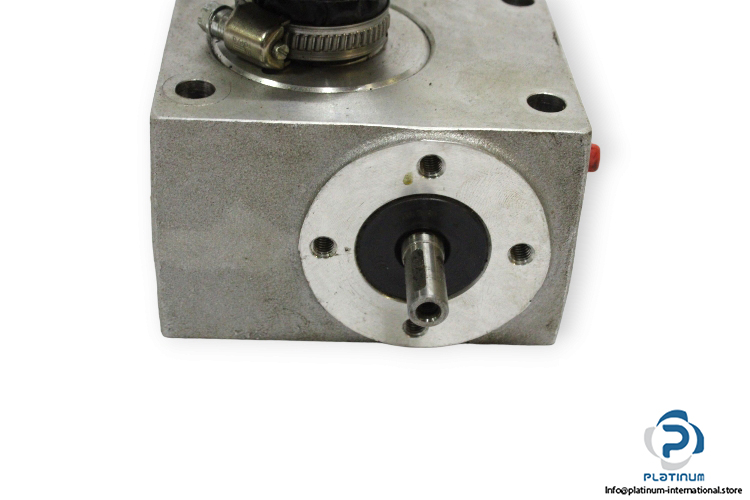

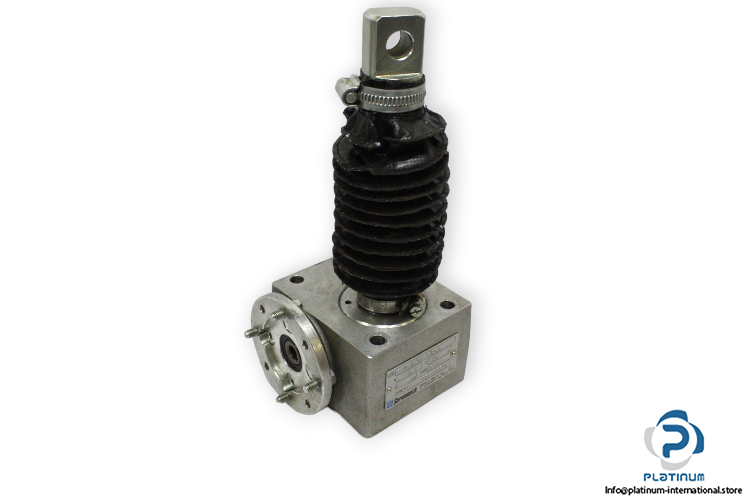

Servomech SJ05 A RH1 VERS.4 Screw Jack

Manufacturer: Servomech
Type:  Screw Jack
Model: SJ05A RH1 VERS.4

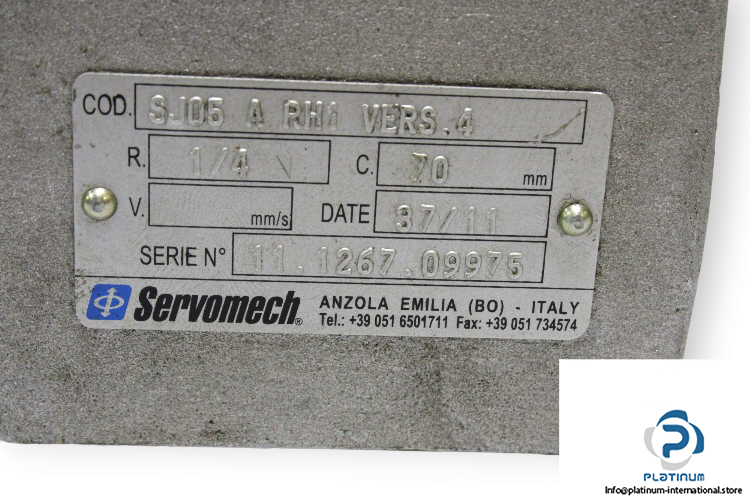

Serie N^o: 11.1267.09975

Screw jack size: SJ 5
Start acme screw: Tr 18×4
Screw Diameter: 18 mm
Screw Lead: 4 mm
Ratio: RH; 1:4 (5:20)
Stroke for 1 input shaft revolution: 1 mm
Running efficiency at 1500 rpm: 0.35
Linear speed v at 1500 rpm: 25 mm/s
Torque at 1500 rpm and 5 kN : 1.9 Nm
Max. permissible operating power: 0.4 kW
C: 70 mm
Gear box material: Casting in aluminium alloy EN 1706 – AC-AlSi10Mg T6
