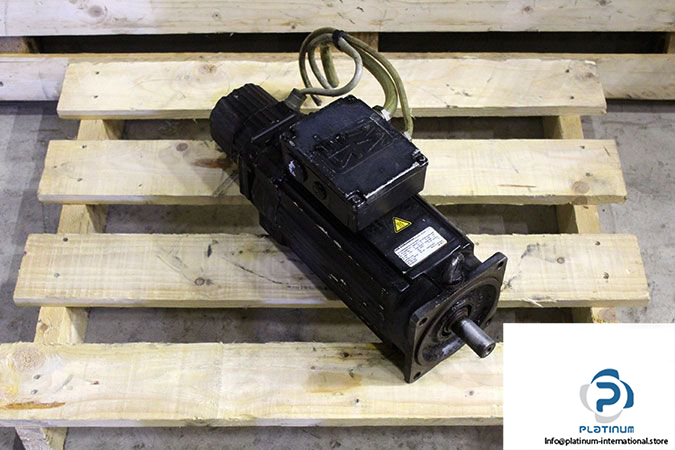

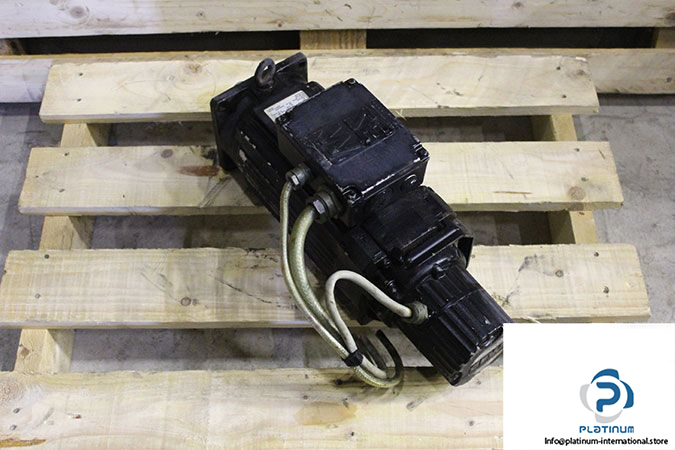

SEW CFM90M/BR/HR/TF/RH1M/KK Synchronous Servomotor

Manufacturer: Sew-Eurodrive

Type: Synchronous Servo Motors

Model: CFM90M/BR/HR/TF/RH1M/KK

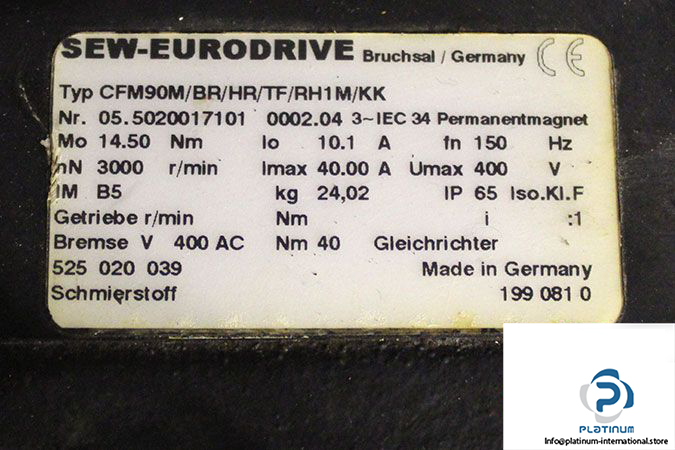

Serial Number: 05.5020017101.0002.04

Rated Speed [rpm]: 3000

Standstill Torque [Nm]: 14,50

Standstill Current [A]: 10,10

Max. Permitt. Current Imax [A]: 40,00

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Max. Permitted Frequency [Hz]: 150

Thermal Class/Enclosure [IP]: F / 65

Brake Voltage [V]/ Torque [Nm]: 400 AC / 40

Mounting Position: B5

Flange [mm]: 130 Centering /165 Hole Circle /140 Square Flange

Output Shaft End [mm]: 24×50

Brake Rectifier: Without

Access. Feature Motor Protec.: TF Temperature Sensor

Weight [kg]: 23.5
