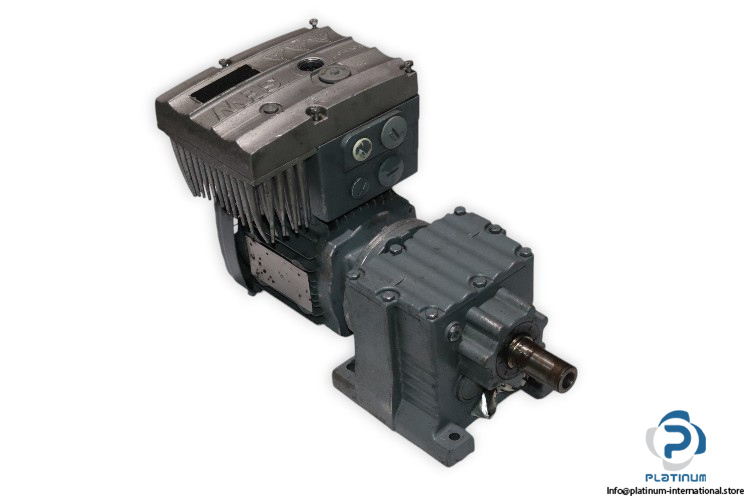

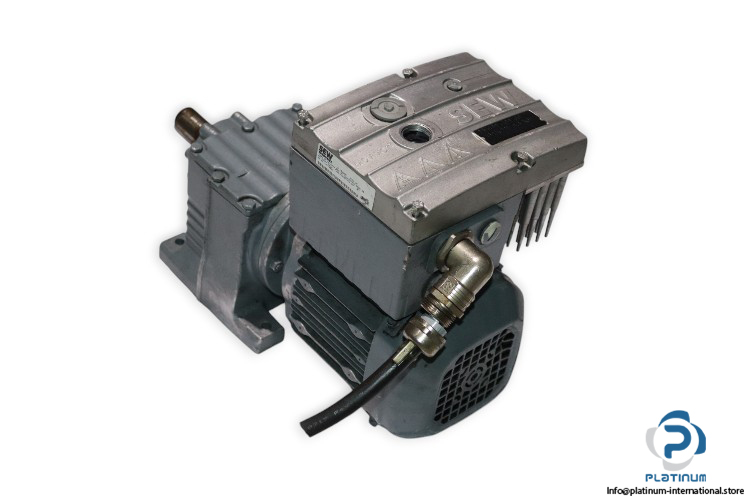

SEW R27 DRS71S4/MM03 Helical-Gearmotor
Used
In stock1 unitReady to ship
helical-gearmotor
The SEW R27 DRS71S4/MM03 Helical-Geared Motor provides reliable power transmission with a 36.79 total ratio, 93 Nm output torque, and 0.37 kW motor power for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

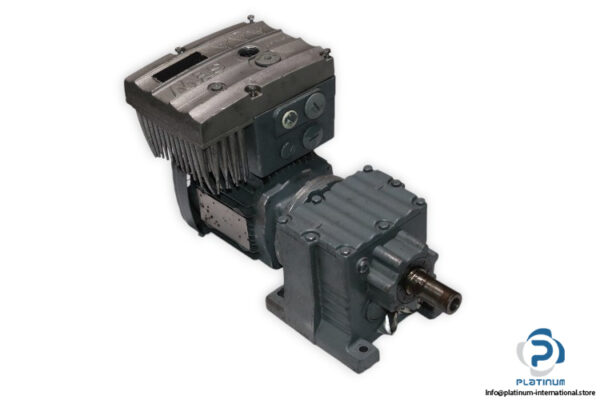

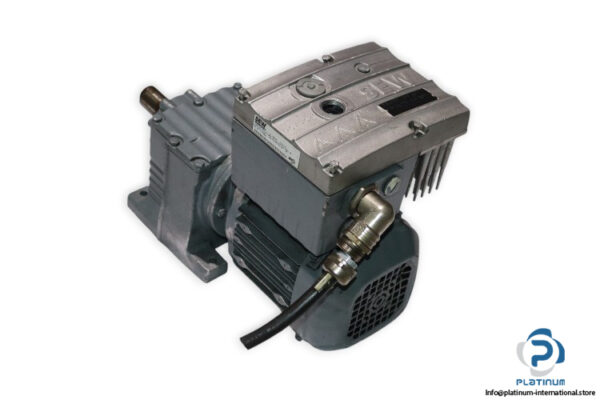

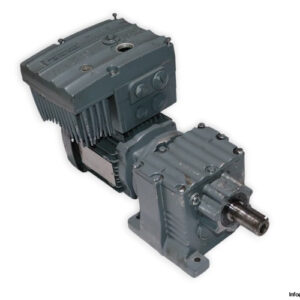

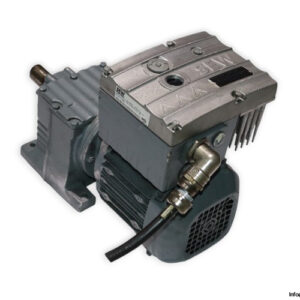

SEW R27 DRS71S4/MM03 HELICAL-GEARMOTOR
The SEW R27 DRS71S4/MM03 Helical-Gearmotor offers reliable and high-performance power transmission in a variety of industrial applications. Equipped with a total ratio of 36.79 and output torque of 93 Nm, this helical-gearmotor ensures efficient operation with minimal maintenance.
Manufacturer: SEW
Type: Helical-gearmotor
Model: R27 DRS71S4/MM03
Part No: 01.1344518301.0002.10

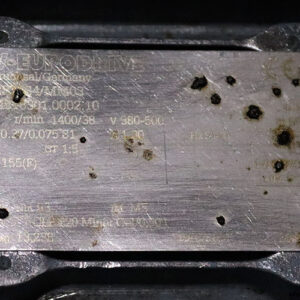

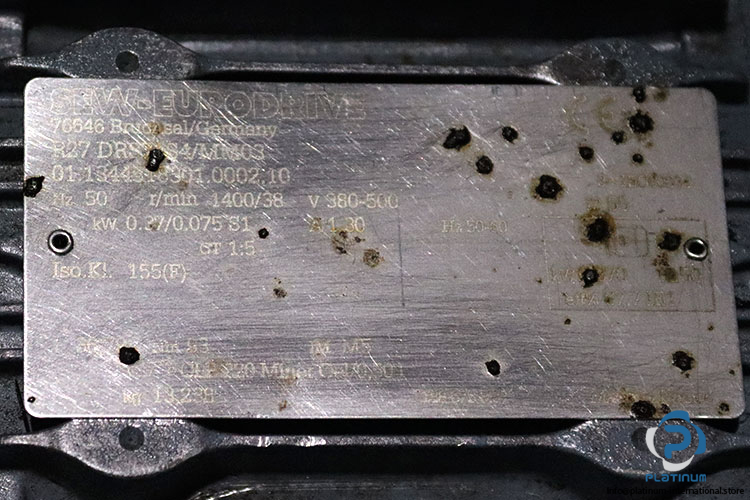

Technical Specifications
- Gear Unit: R27
- Input Speed [r/min]: 1400
- Output Speed [r/min]: 38
- Total Ratio: 36.79 / infinite
- Output Torque [Nm]: 93
- Service Factor SEW-FB: 1.40
- Mounting Position: M5
- Lubricant / Volume [l]: CLP 220 Miner.Oil / 0.50
- Output Shaft End: 25x50mm lg.
- Motor Power [kW]: 0.37 / 0.075
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage [V]: 380-500
- Motor Supply Frequency [Hz]: 50
- MM Rated Main Current [A]: 1.30
- MM Rated O/P Current [A]: 1.60
- Thermal Cl.[°C] / Enclosure [IP]: 155(F) / 55

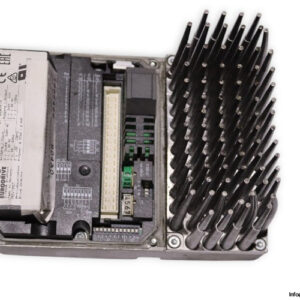

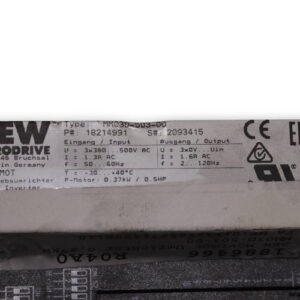

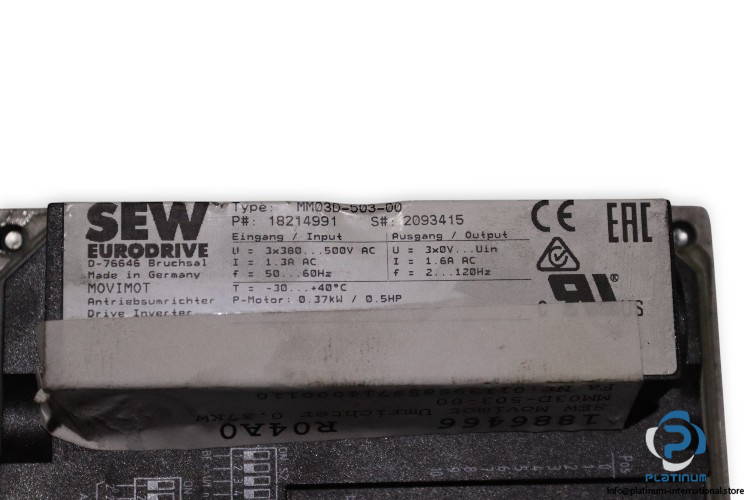

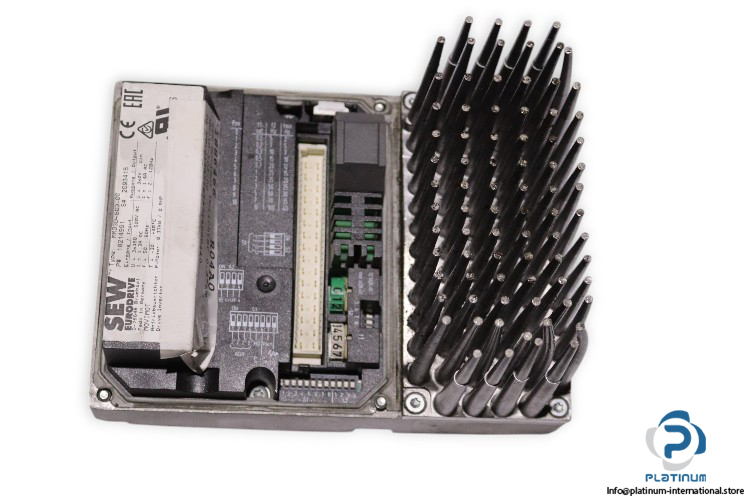

Attached with SEW MM03D-503-00 MOVIMOT INVERTER DRIVE
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 2 to 120 Hz
