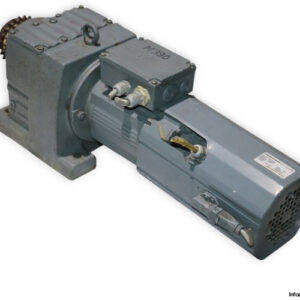

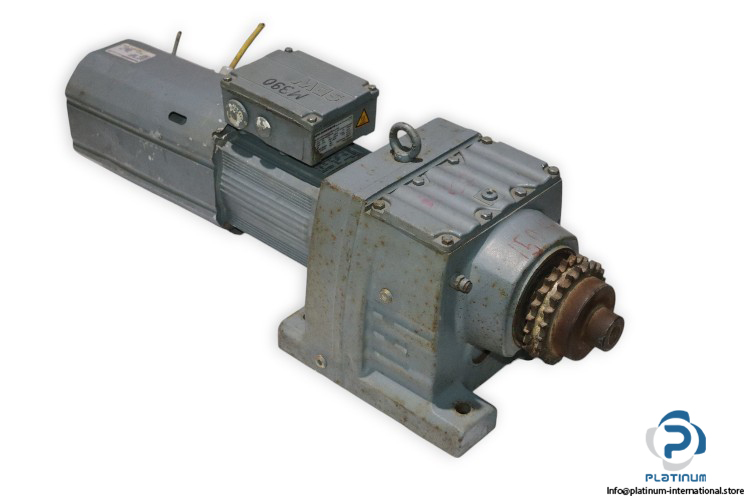

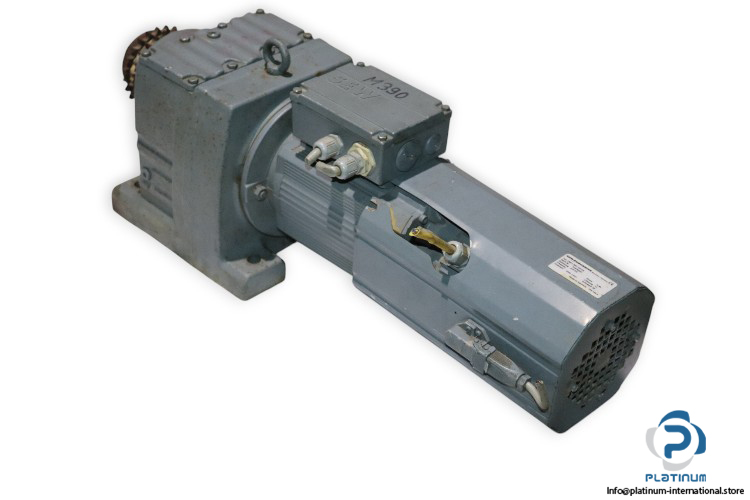

SEW R67 CM71S/BR/TF/VR/RH1L/KK Helical Gear Servomotor

SEW R67 CM71S/BR/TF/VR/RH1L/KK HELICAL GEAR SERVOMOTOR

The SEW R67 CM71S/BR/TF/VR/RH1L/KK Helical Gear Servomotor is designed for high-performance applications, providing precise control with a 61.26:1 ratio, 7.30 Nm stall torque, and 400 V AC max voltage. The motor’s advanced features include high-rated speed and frequency, along with a torque brake and insulation class F for efficient operation.

Manufacturer: SEW

Type: Helical gear servomotor

Model: R67 CM71S/BR/TF/VR/RH1L/KK

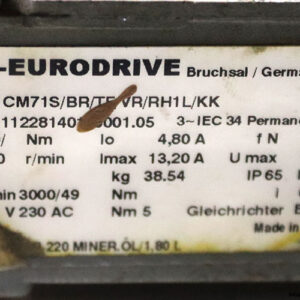

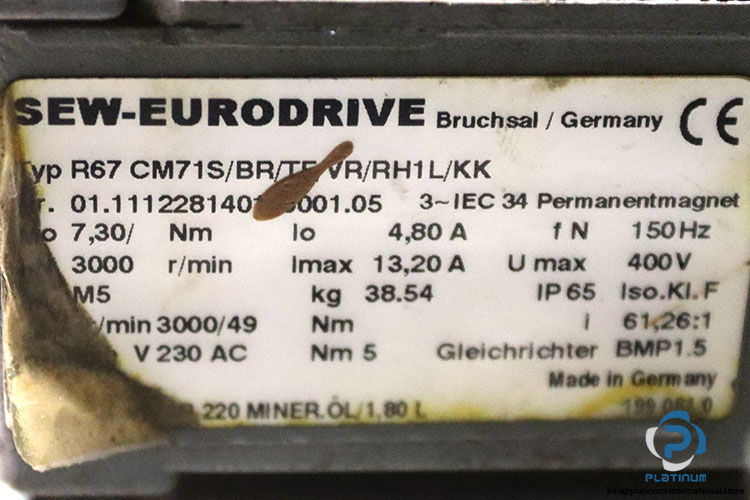

Part No.: 01.1112281401.0001.05

Technical Specifications

• Gear Unit: R67
• Max. Voltage: 400 V AC
• Max. Current: 13.20 A
• Stall Current: 4.80 A
• Rated Speed: 3000 min^-1
• Rated Frequency: 150 Hz
• Stall Torque: 7.30 Nm
• Ratio: 61.26:1
• Voltage Brake: 230 V AC
• Torque Brake: 5 Nm
• Insulation Class: F
• Protection Class: IP65

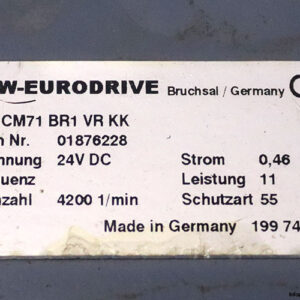

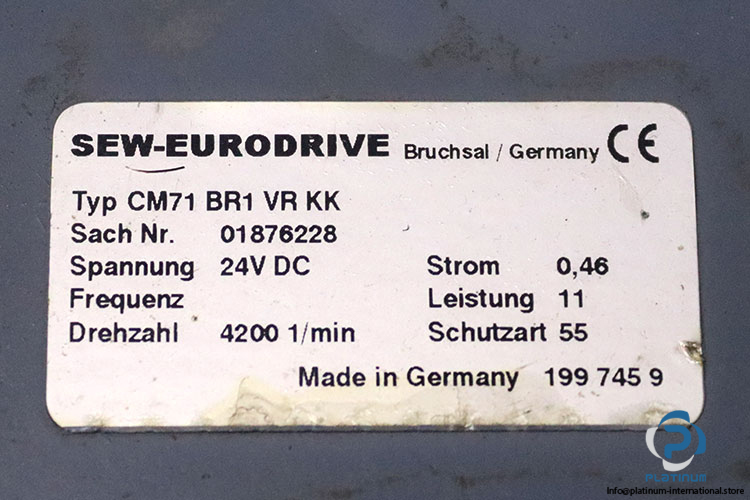

Attachment: SEW CM71 BR1 VR KK SYNCHRONOUS SERVOMOTOR

• Voltage: 24 VDC
• Rotational Speed: 4200 min^-1
• Protection Class: IP55
