SEW RF17 DRS71M4BE05/MM07/LN Helical Gearmotor
Used
In stock2 unitsReady to ship

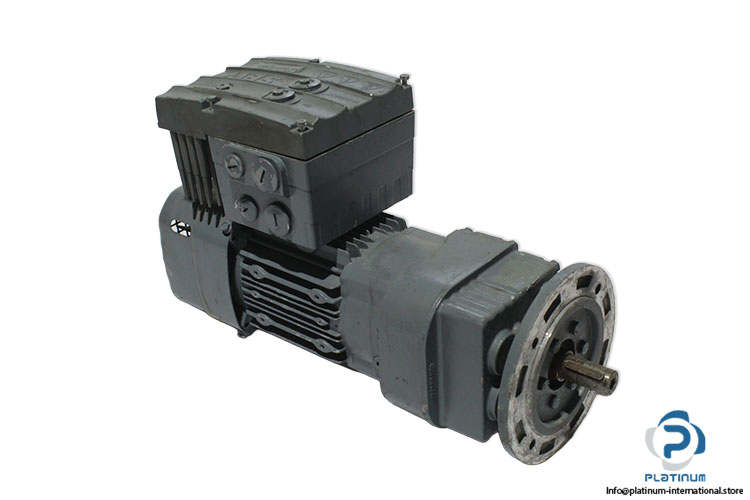

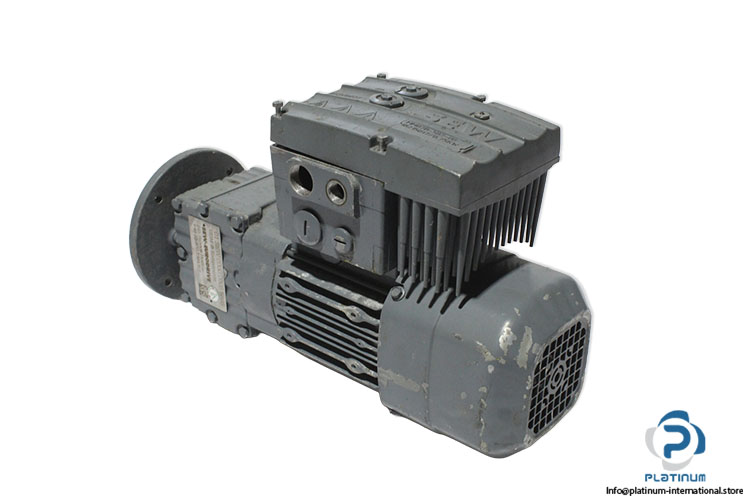

Helical Gearmotor The SEW-Eurodrive RF17 DRS71M4BE05/MM07/LN is a helical gearmotor with an integrated MOVIMOT MM07D inverter drive, delivering efficient speed control, reliable torque, and IE3 motor performance for industrial automation and power transmission systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

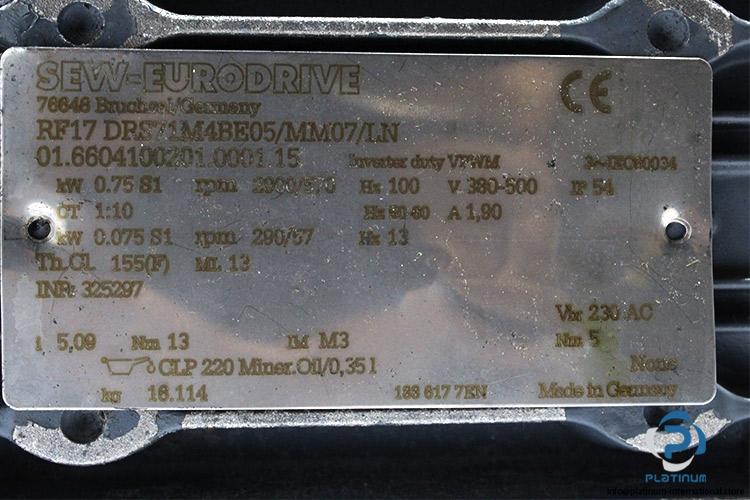

| Part No. | 50.1793417901.0003.12/01.6604100201.0001.15 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 570 - 57 |
| Total ratio [i] | 5,09 |
| Ma max [Nm] | 51 |
| Output torque [Nm] | 13 |
| Service factor SEW-FB | 4,10 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 0,35 |
| Motor power [kW] | 0.75 / 0.075 |
| Motor mains power [kW] | 0,550 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 1,90 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 230 AC / 5 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM07 |

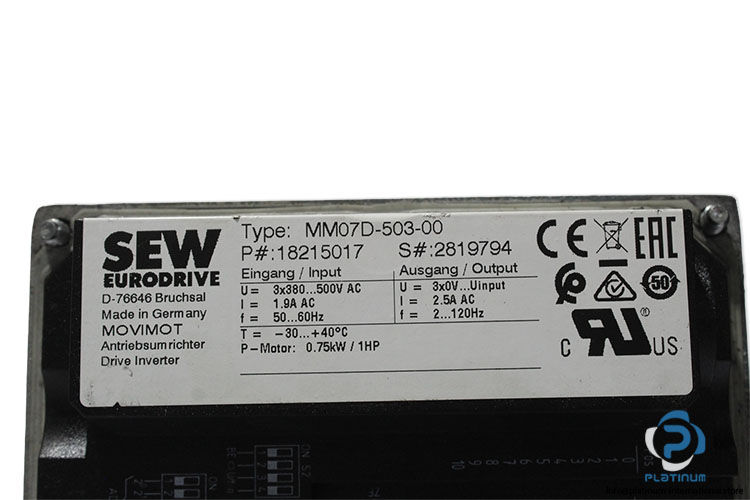

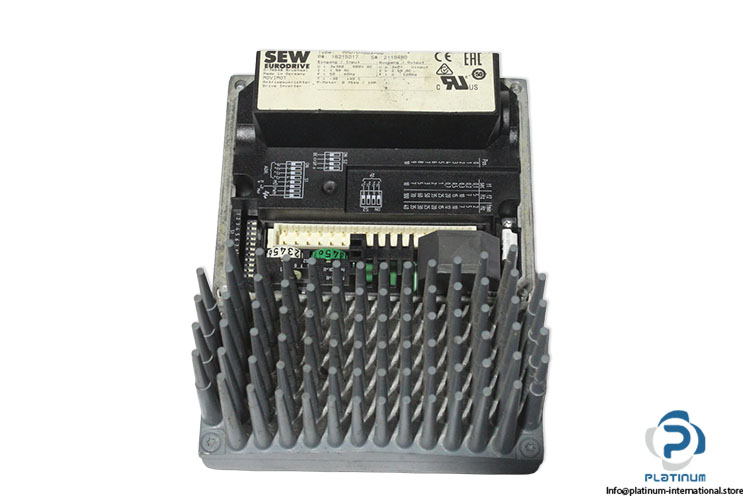

| Attached with | SEW MM07D-503-00 Movimot Inverter Drive |
| Range | MOVIMOT |
| P no | 18215017 |
| S no | 2819794 |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 1.9 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 0.75kW / 1 HP |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 2.5 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100470 |
| Weight | 15,85 |
