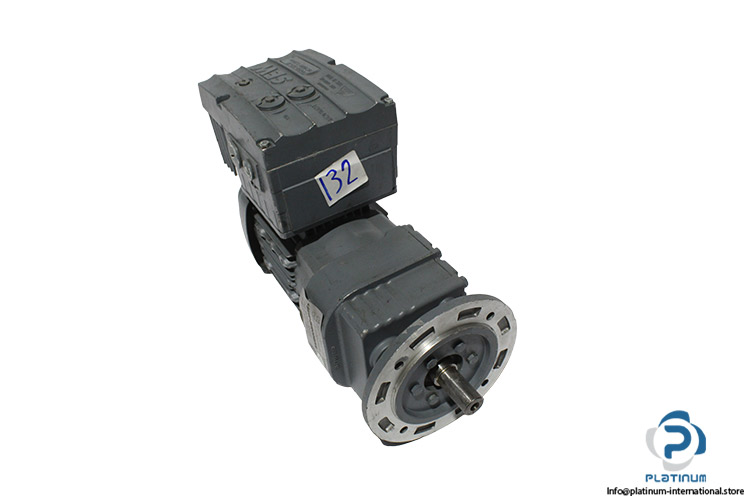

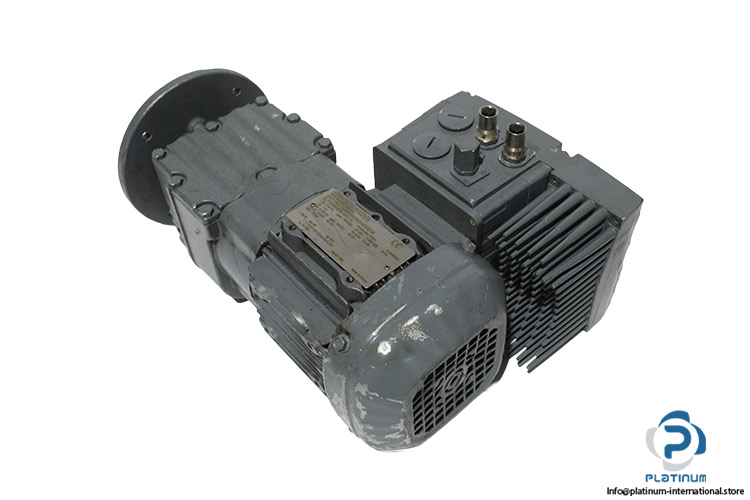

SEW RF17 DRS71S4/MM05/MO/AZZK/LN Helical Gearmotor

In stock1 unitReady to ship

Helical Gearmotor The SEW-Eurodrive RF17 DRS71S4/MM05/MO/AZZK/LN is a helical gearmotor delivering efficient speed control, reliable torque, and IE3 motor performance for industrial automation and power transmission systems.

Manufacturer
SEW
SKU
1100473
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

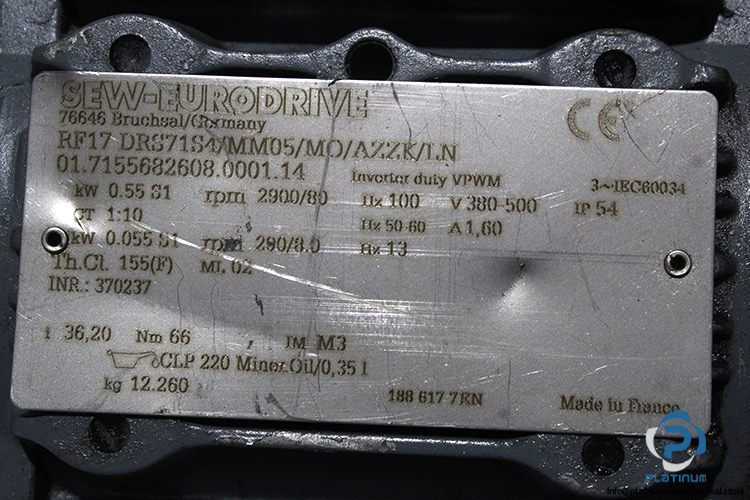

Part No.01.7155682608.0001.14
Input speed [r/min]2900 - 290
Output speed [r/min]80 - 8.0
Total ratio [i]36,20
Ma max [Nm]85
Output torque [Nm]66
Service factor SEW-FB1,30
Mounting positionM3
ISO codeCLP 220
Lubricant typeMiner.Oil
Lubricant volume [l]0,35
Motor power [kW]0.55 / 0.055
Motor mains power [kW]0,370
Motor frequency [Hz]100
Cyclic duration factor S1-S10S1
Setting range (CT)1:10
Motor frequency min. [Hz]13
Motor voltage [V]380-500
Line frequency [Hz]50-60
MM rated main current [A]1,60
Thermal cl.[°C]/Enclosure[IP]155(F) / 54
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
MOVIMOTMM05 with AS-Interface

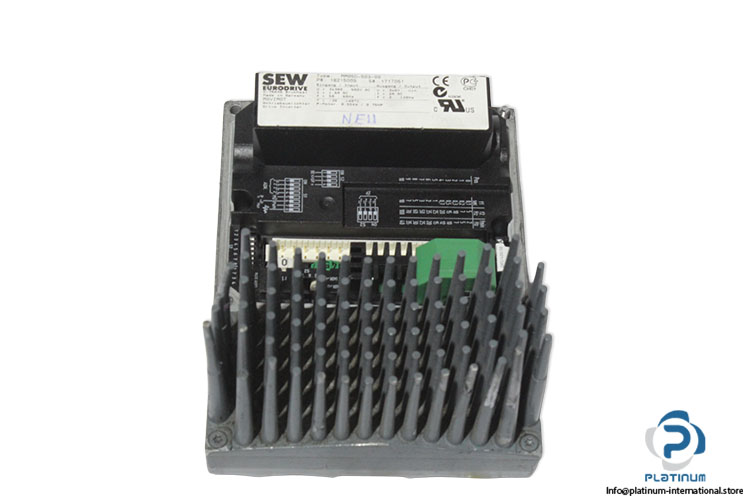

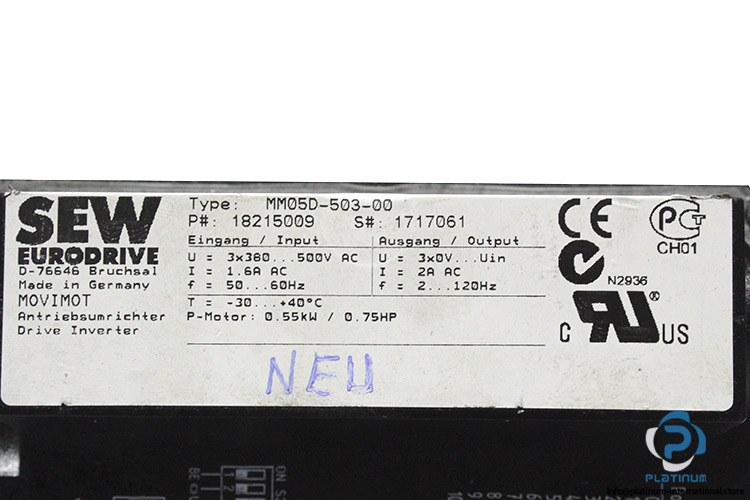

Attached withSEW MM05D-503-00 Movimot Inverter Drive
S no1717061
P no18215009
RangeMOVIMOT
Supply Voltage, Input3-Phase 380 … 500 V AC
Rated Current, Input1.6 A
Frequency, Input50 … 60 Hz
Power, Input0.55kW
Rated Voltage, Output3-Phase 0 … 380 – 500 V AC
Rated Current, Output2 A
Frequency, Output2 … 120 Hz
Temperature-30 … 40 °C
Stock keyJO-004
ConditionUsed
SKU1100473
Weight12,2
