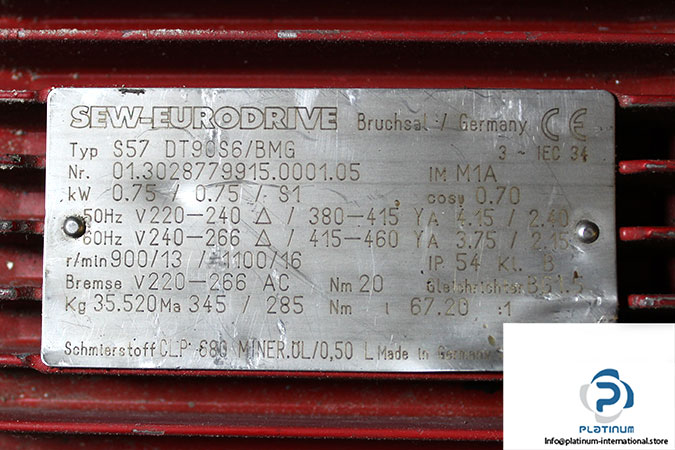

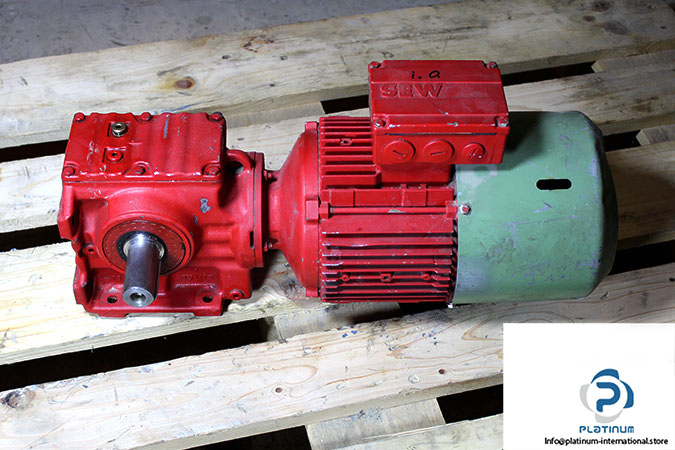

SEW S57 DT90S6/BMG Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motors
Model: S57DT90S6/BMG
ID Number: 01.3028779915.0001.05

Speed [r/min]: 900 / 13
Speed [r/min]: 1100 / 16
Total Ratio [i]: 67,20
Output Torque [Nm]: 345 / 285
Service Factor SEW-FB: 0,85 / 1,05
Mounting Position: M1A
Lubricant / -Volume [l]: CLP 680 0,50
Output Shaft End [mm]: 30×60
Design: Foot-Mounted Version
Motor Power [kW]: 0.75 / 0.75
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star
Nominal Current [A]: 4,15 / 2,40
Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star
Nominal Current [A]: 3,75 / 2,15
Cos Phi: 0,70
Thermal Class/Enclosure [IP]: B / 54
Ambient Temperature Motor [°C]: 40
Acc. Feat. Brake/Brake Release: BMG
Brake Voltage [V]/-Torque [Nm]: 230 AC / 20
Multi Range-Voltage Brake [V]: 220-266 AC
Brake Rectifier: BG1.5
Weight [kg]: 36,1
