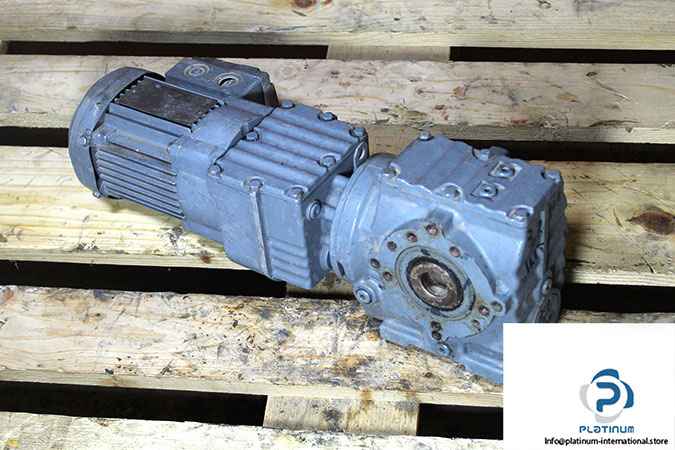

SEW SA47 R17 DR63S4 Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motors
Model: SA47R17DR63S4

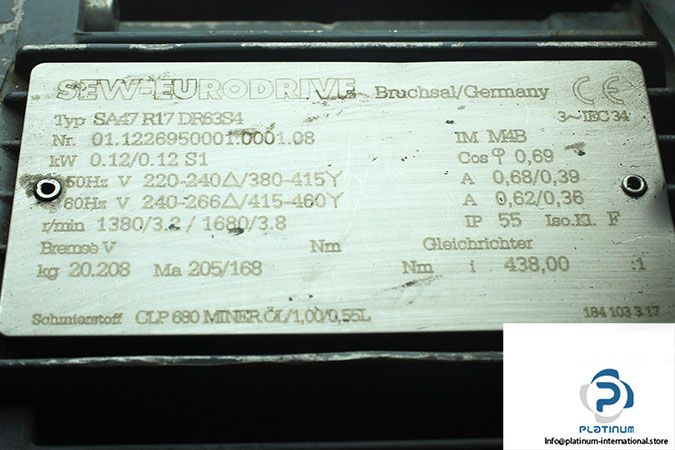

ID Number: 01.1226950001.0001.08

Speed 50Hz [r/min]: 1380 / 3.2
Speed 60Hz [r/min]: 1680 / 3.8
Total Ratio [i]: 438,00
Output Torque 50Hz [Nm]: 205
Output Torque 60Hz [Nm]: 168
Service Factor SEW-FB: 0,90 / 1,10
Mounting Position: M4B
Lubricant / Volume [l]: CLP 680 Miner.Oil / 1,00 / 0,55
Hollow Shaft [mm]: 25
Design: Hollow Shaft
Motor Power [kW]: 0.12
Cyclic Duration Factor: S1
Multi Range-Voltage 50Hz [V]: 220-240 delta / 380-415 star
Nominal Current [A]: 0,68 / 0,39
Multi Range-Voltage 60Hz [V]: 240-266 delta / 415-460 star
Nominal Current [A]: 0,62 / 0,36
Cos Phi: 0,69
Thermal Class/Enclosure [IP]: F / 55
Weight [kg]: 19,4
